Automatic Transaxle System
>>
Inspection Process For Trouble Symptoms
>>
Inspection Procedure 13
Inspection Procedure 13

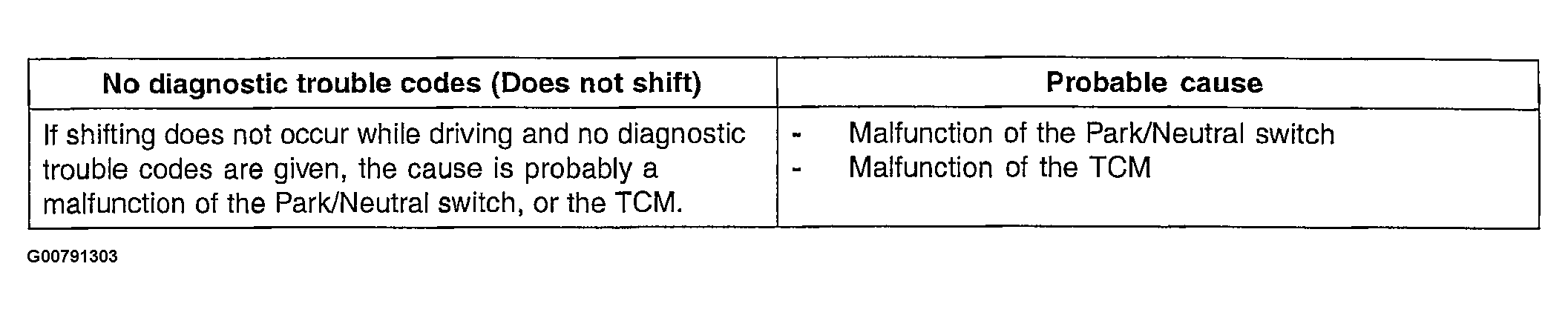

Fig 1: Inspection Procedure 13 Definitions & Probable Causes
Courtesy of HYUNDAI MOTOR CO.

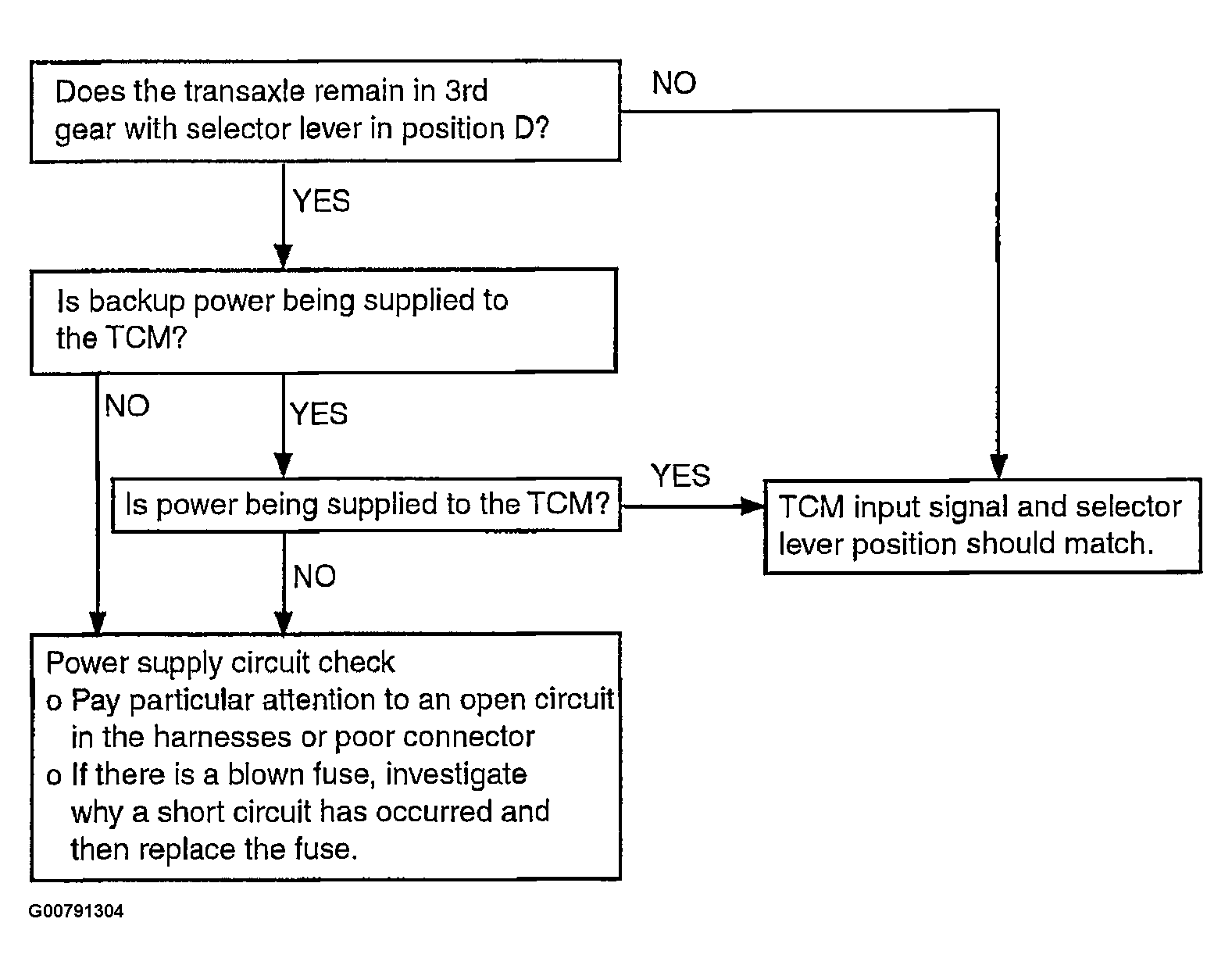

Fig 2: Inspection Procedure 13 Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
