Service Standard

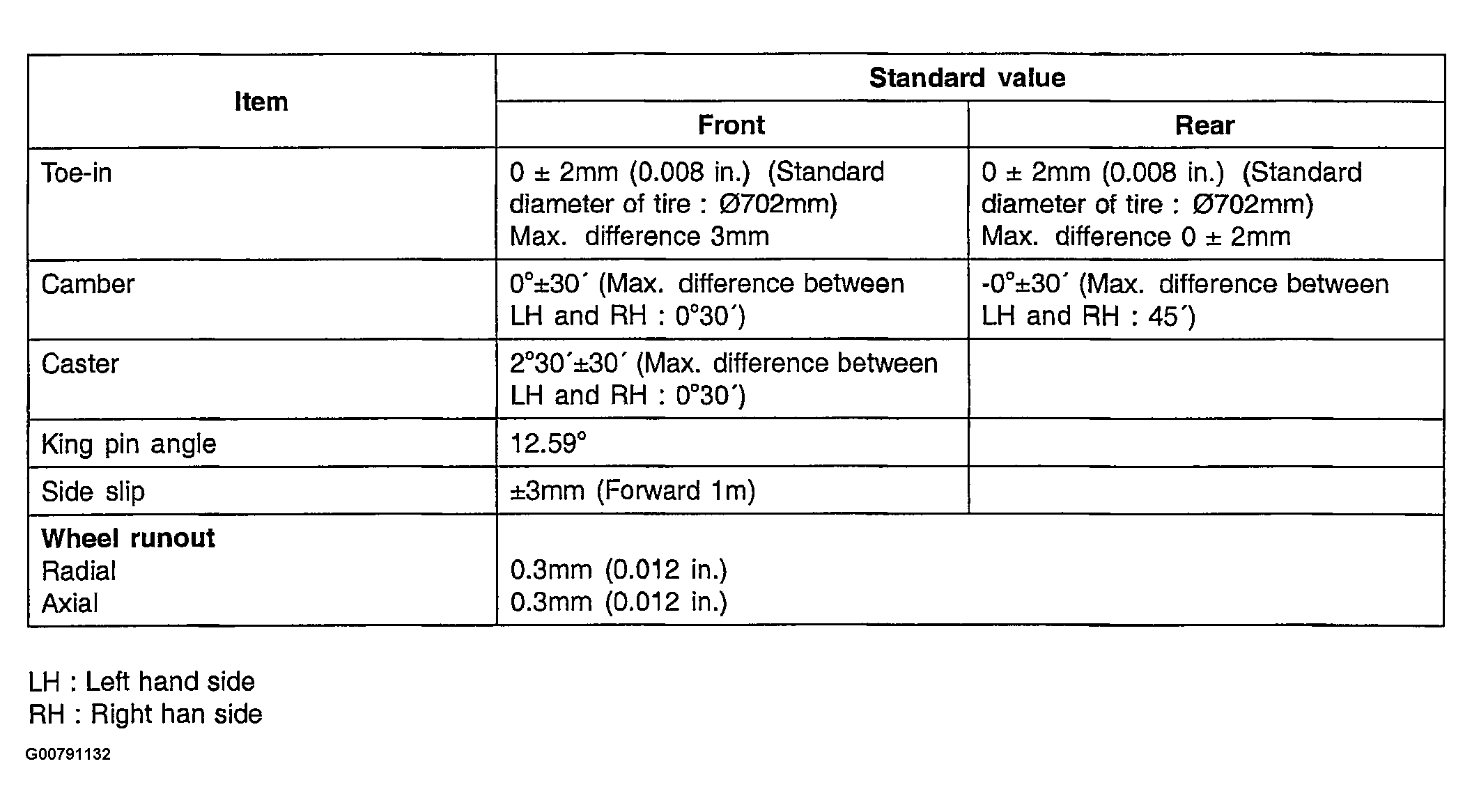

Fig 1: Service Standard Table

G00791132

Courtesy of HYUNDAI MOTOR CO.

LH : Left hand side

RH : Right han side
