Emission Control System (3.5L)
>>
General
>>
Schematic Drawing
Schematic Drawing

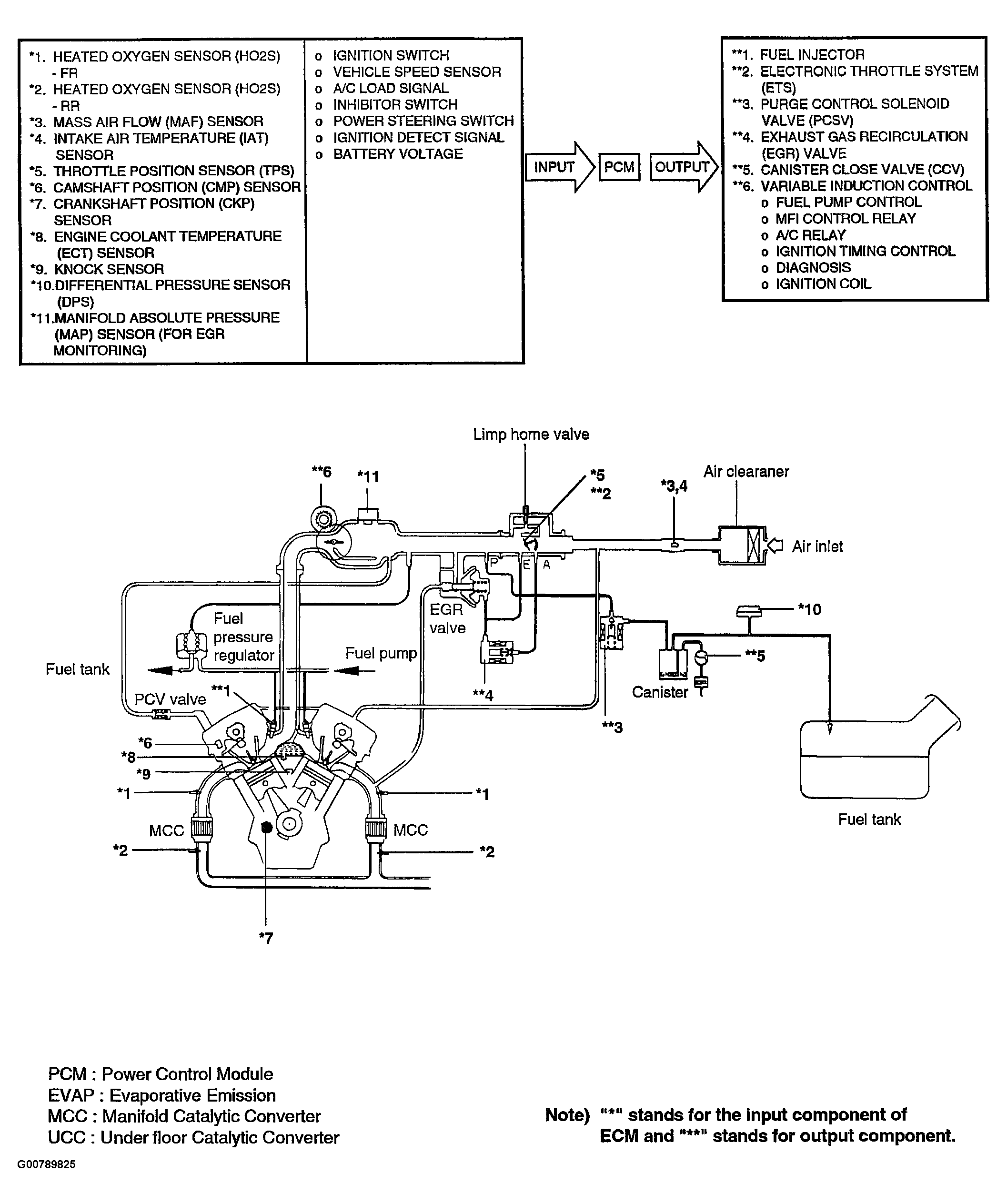

Fig 1: Emission Control System Schematic
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
