Home >> Hyundai >> 2004 >> Santa Fe LX, FWD >> Repair and Diagnosis >> Engine Performance >> System >> Emission Control System (3.5L) >> General >> Components

Emission Control System (3.5L): General: Components

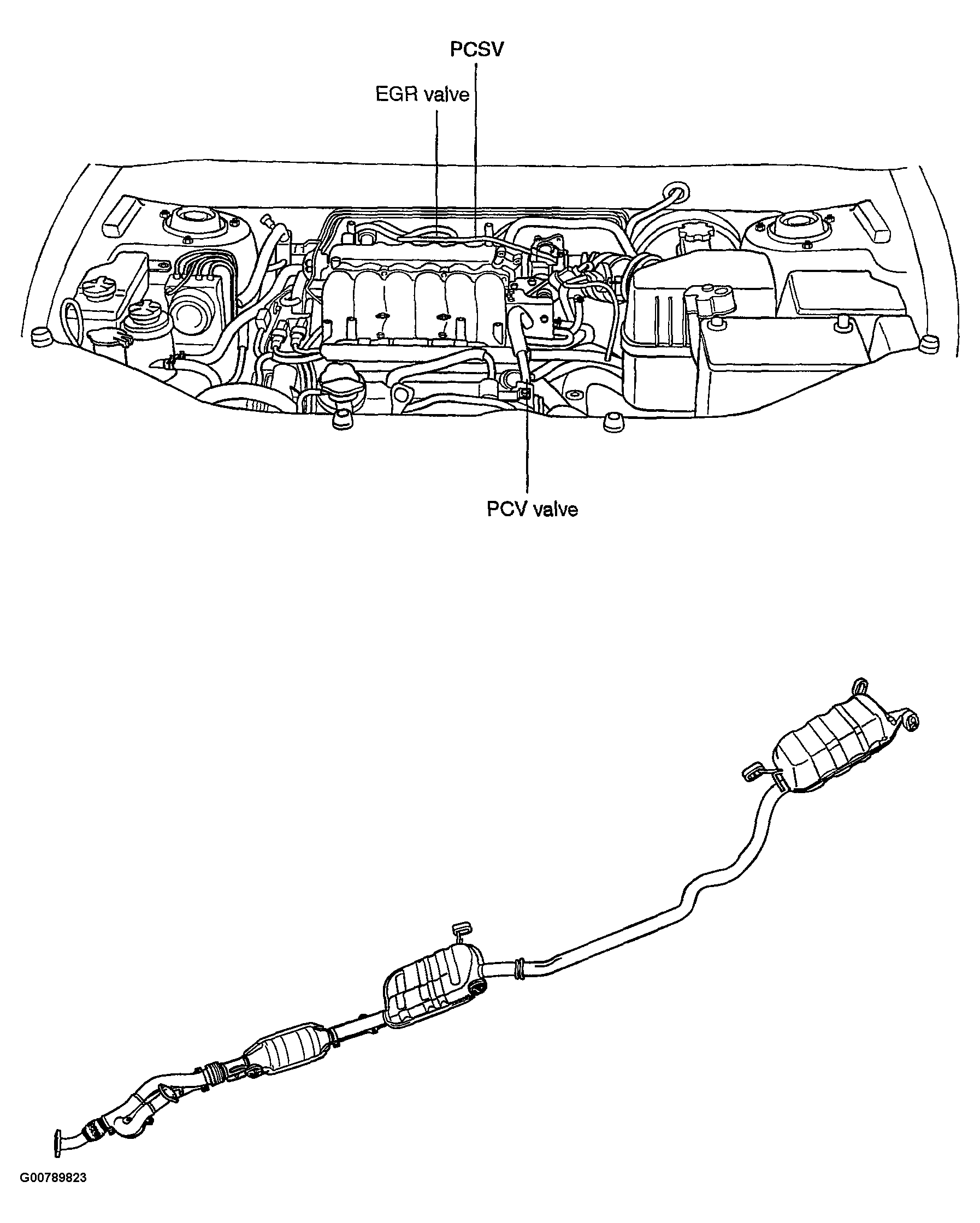

Fig 1: Emission Control System Component Locations (1 Of 2)
G00789823Courtesy of HYUNDAI MOTOR CO.

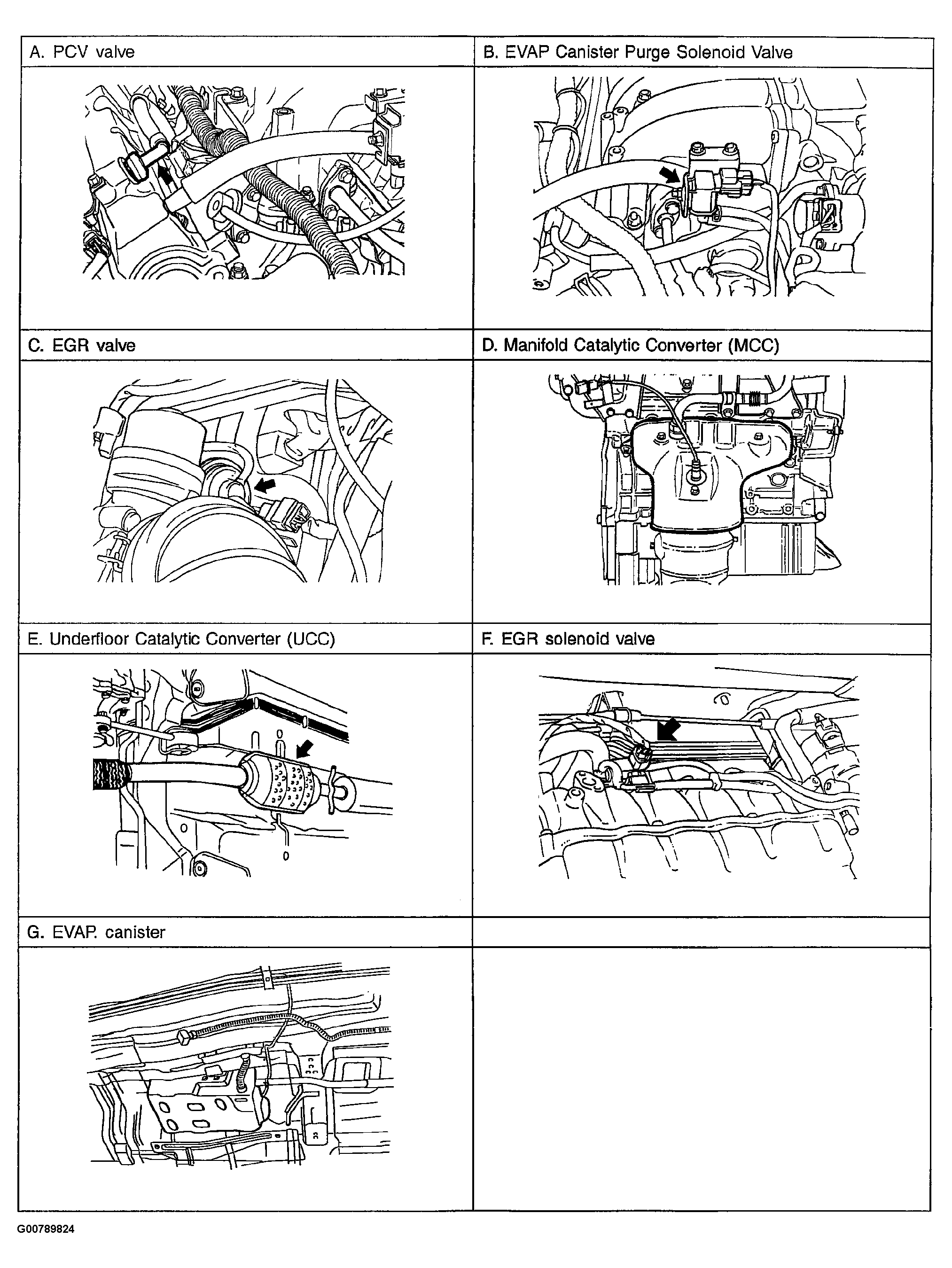

Fig 2: Emission Control System Component Locations (2 Of 2)
G00789824Courtesy of HYUNDAI MOTOR CO.
