Evaporative Emission Control System: Components

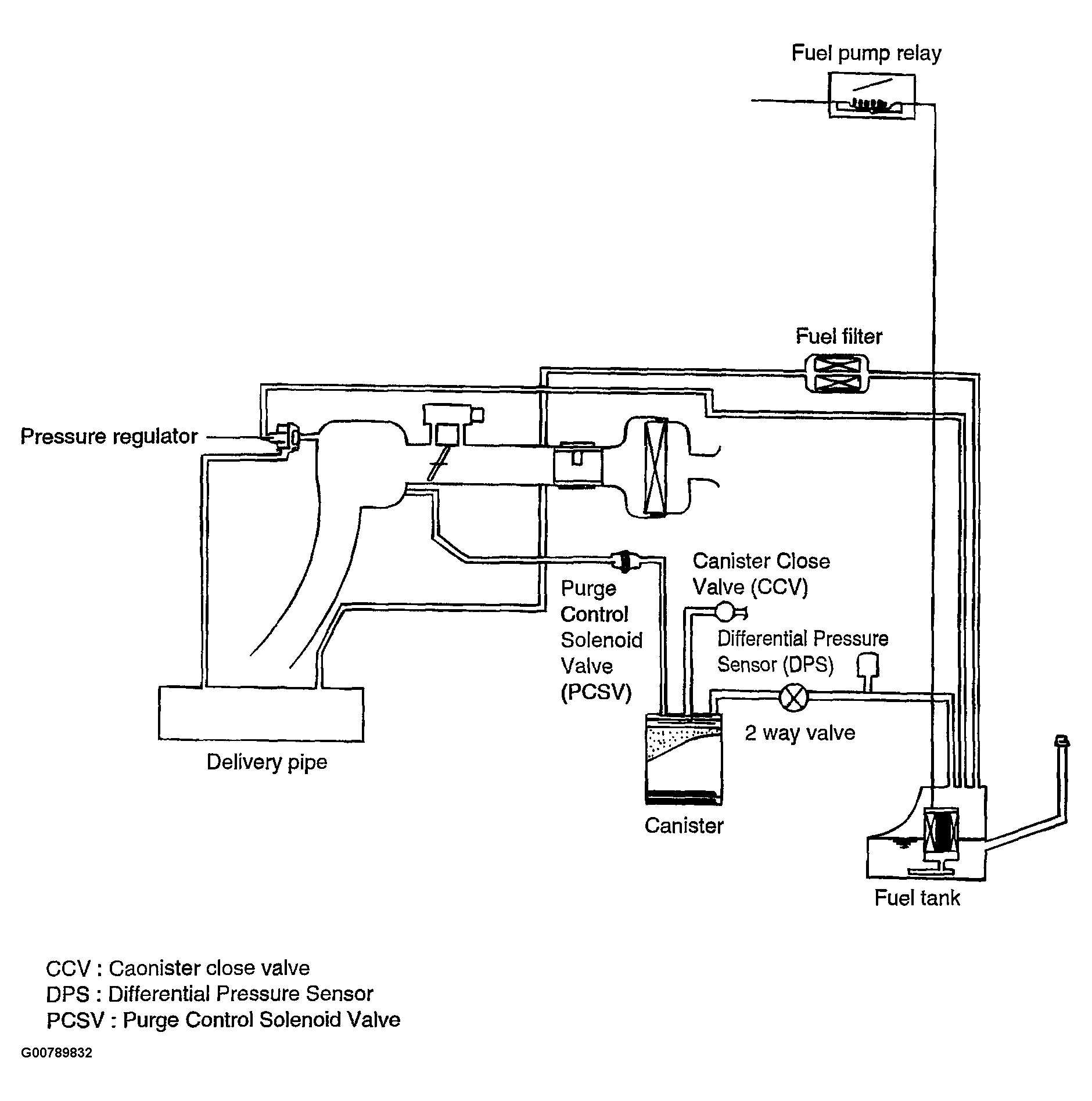

Fig 1: Identifying Evaporative Emission Control System Components

G00789832

Courtesy of HYUNDAI MOTOR CO.
