Harness Inspection Procedures

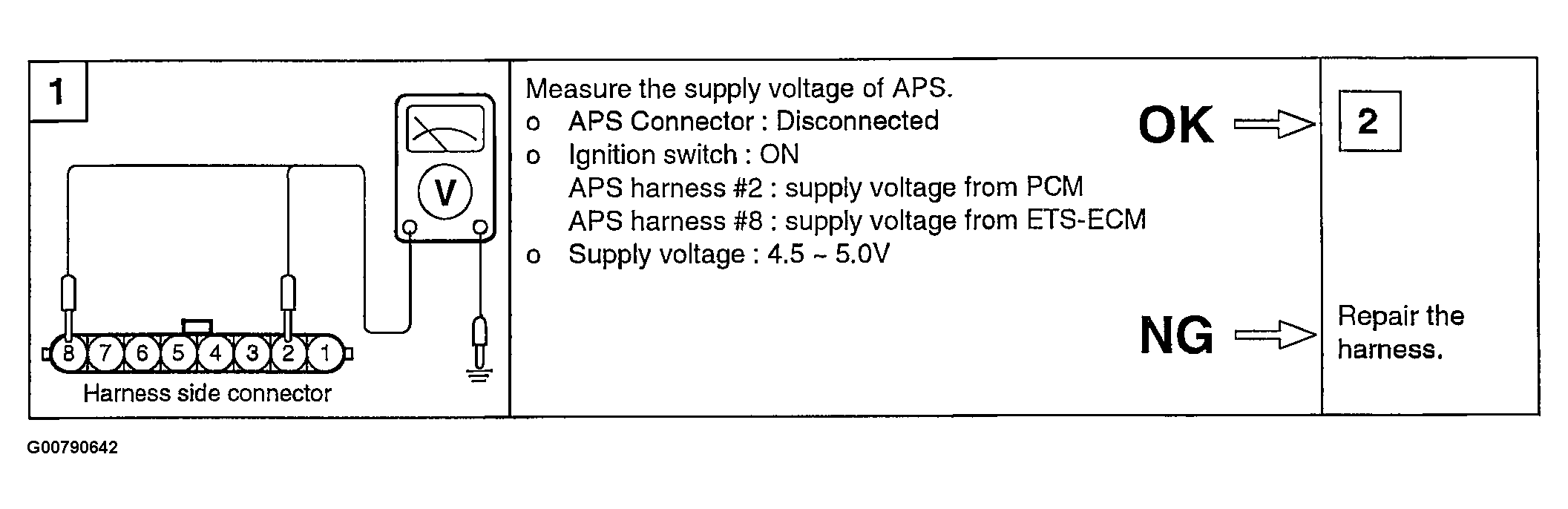

Fig 1: Harness Inspection Procedure (1 Of 5)
G00790642Courtesy of HYUNDAI MOTOR CO.

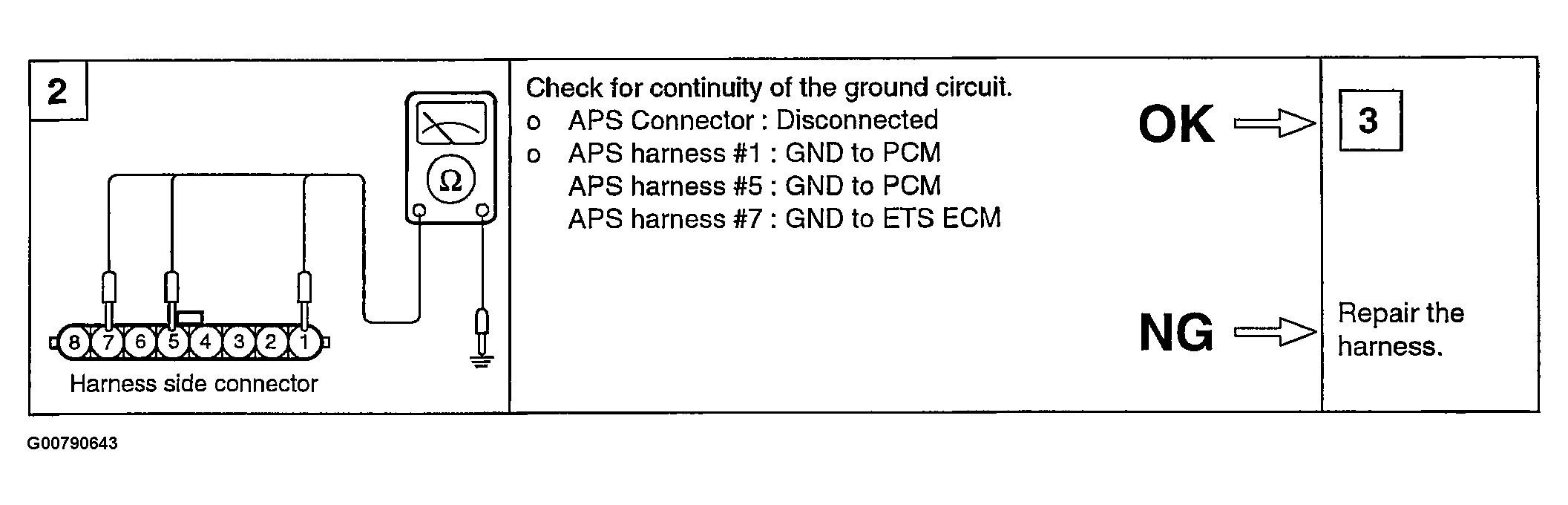

Fig 2: Harness Inspection Procedure (2 Of 5)
G00790643Courtesy of HYUNDAI MOTOR CO.

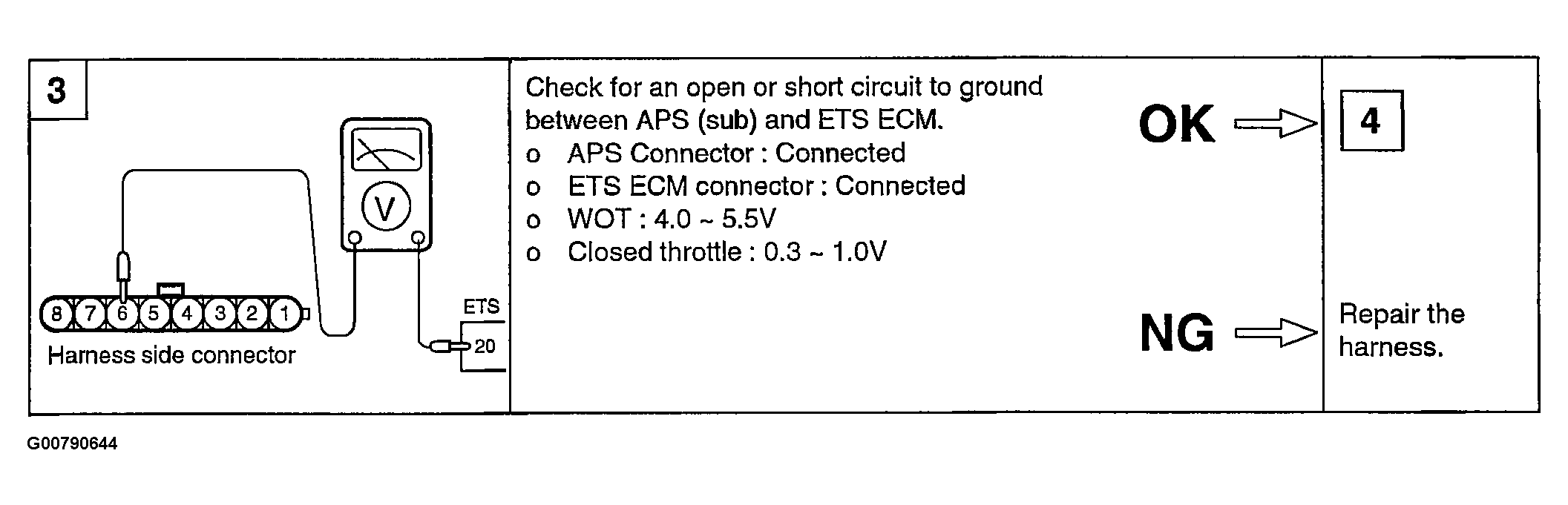

Fig 3: Harness Inspection Procedure (3 Of 5)
G00790644Courtesy of HYUNDAI MOTOR CO.

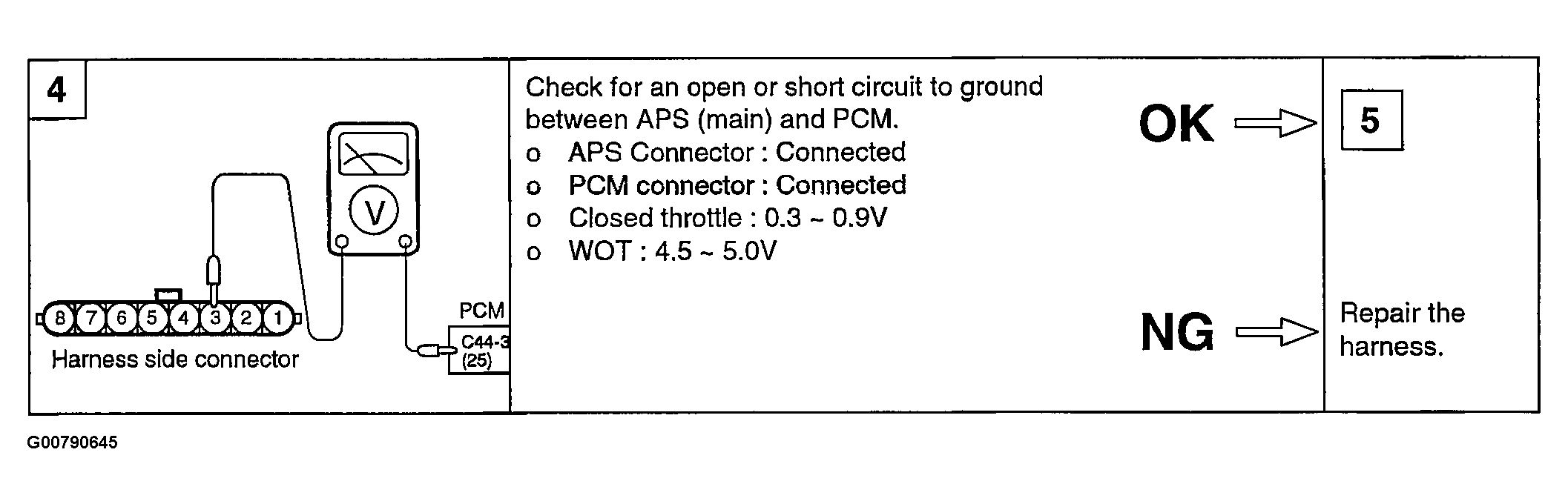

Fig 4: Harness Inspection Procedure (4 Of 5)
G00790645Courtesy of HYUNDAI MOTOR CO.

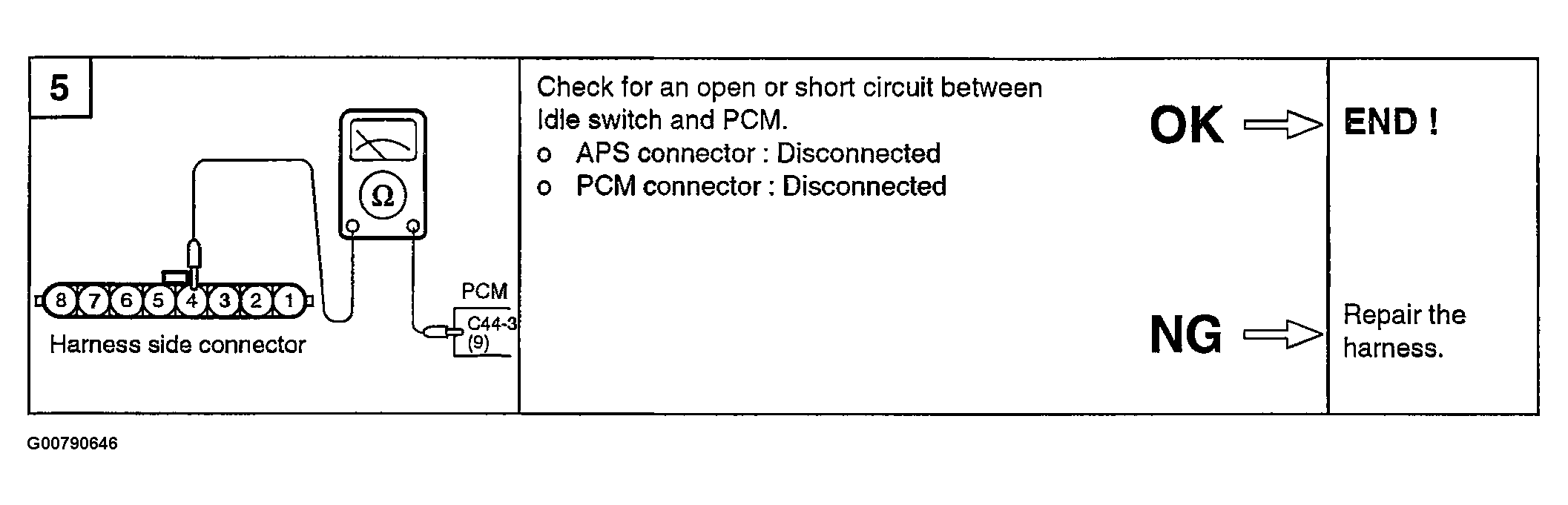

Fig 5: Harness Inspection Procedure (5 Of 5)
G00790646Courtesy of HYUNDAI MOTOR CO.
