Harness Inspection Procedures

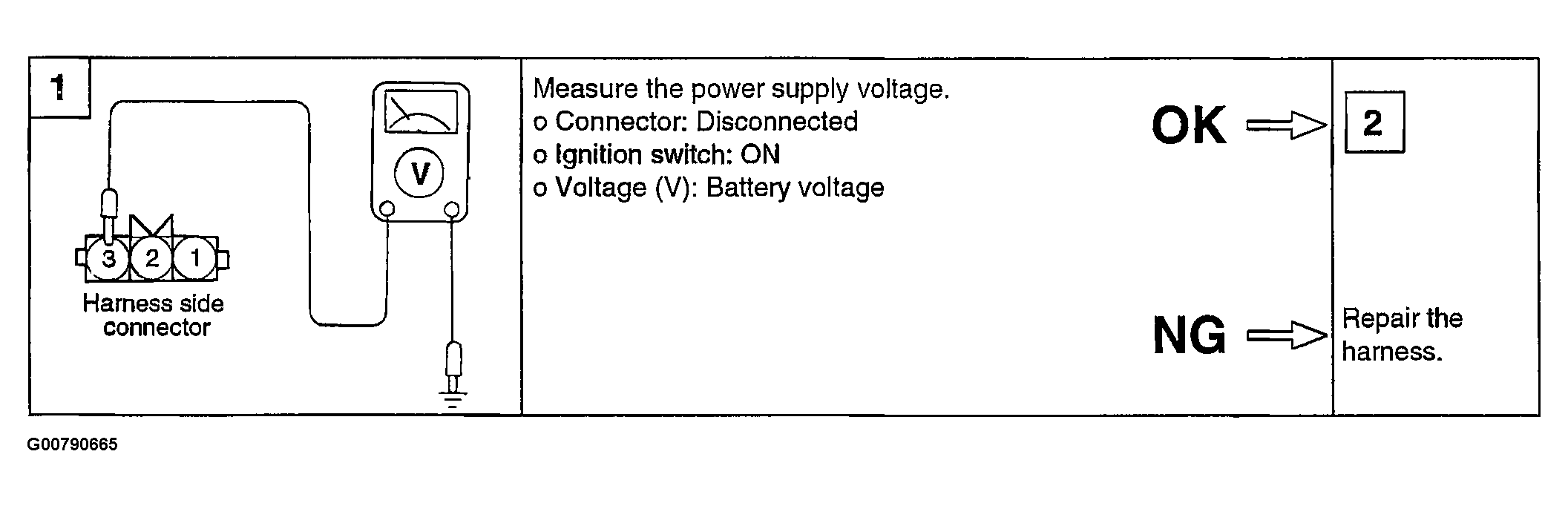

Fig 1: Harness Inspection Procedure (1 Of 3)
G00790665Courtesy of HYUNDAI MOTOR CO.

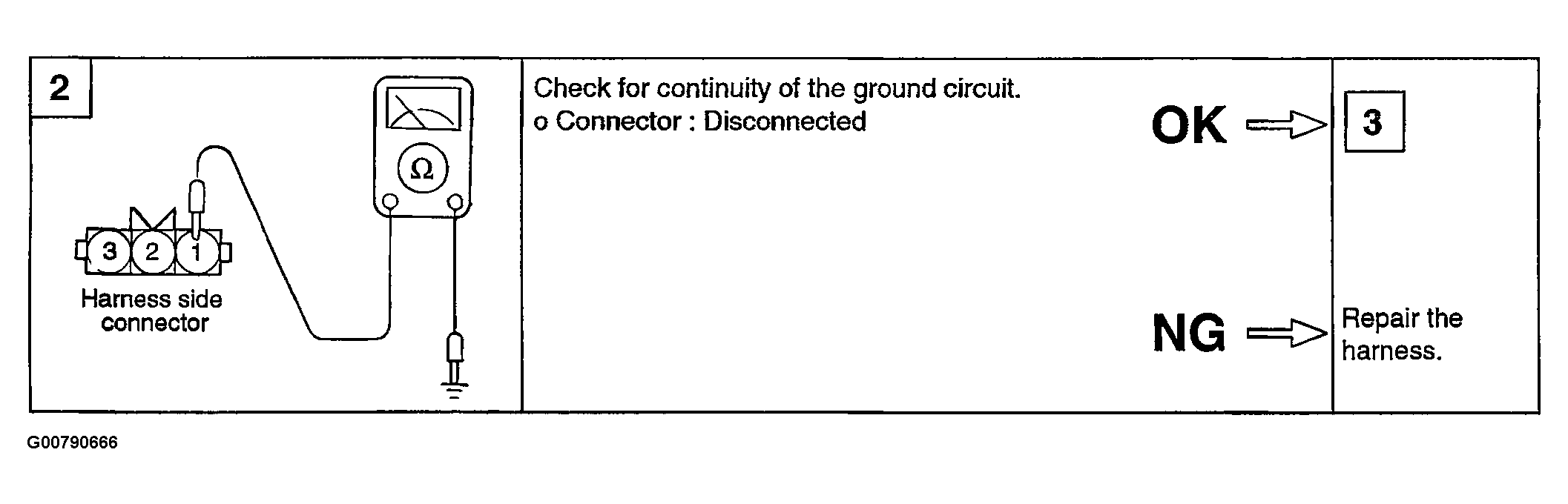

Fig 2: Harness Inspection Procedure (2 Of 3)
G00790666Courtesy of HYUNDAI MOTOR CO.

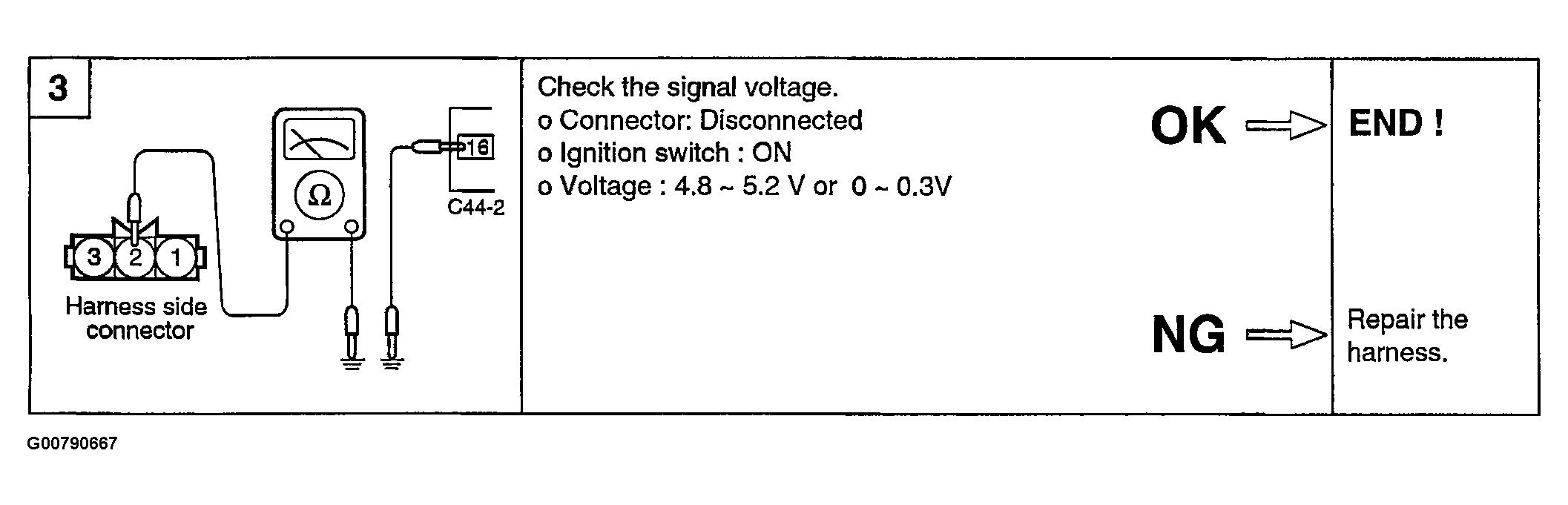

Fig 3: Harness Inspection Procedure (3 Of 3)
G00790667Courtesy of HYUNDAI MOTOR CO.
