Home >> Hyundai >> 2004 >> Santa Fe LX, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System (3.5L) >> General >> Troubleshooting >> Troubleshooting

Fuel System (3.5L): General: Troubleshooting: Troubleshooting

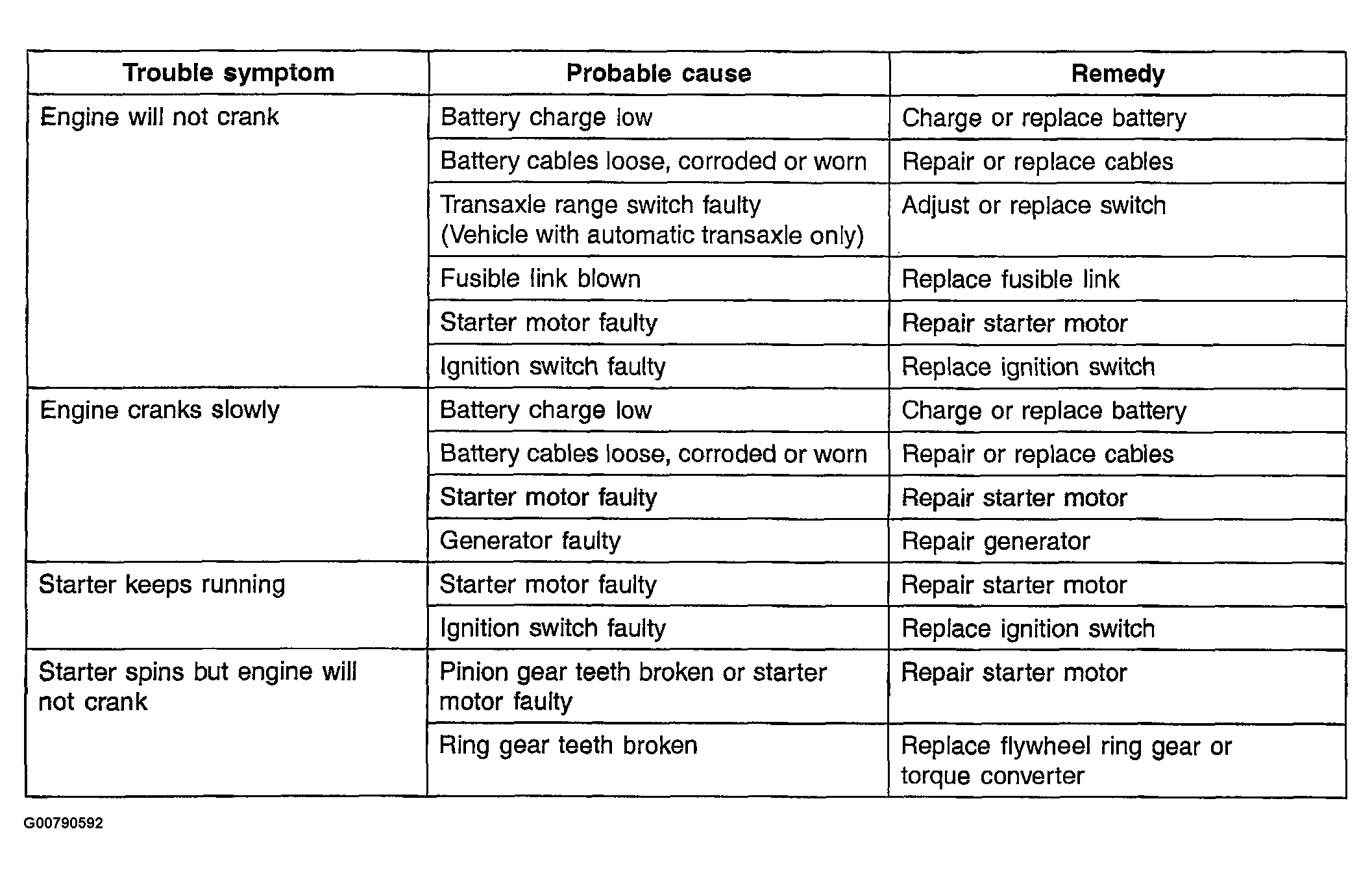

Fig 1: No Start Troubleshooting Table

G00790592

Courtesy of HYUNDAI MOTOR CO.
