Diagnostic Trouble Code Chart

Inspect according to the inspection chart that is appropriate for the malfunction code.

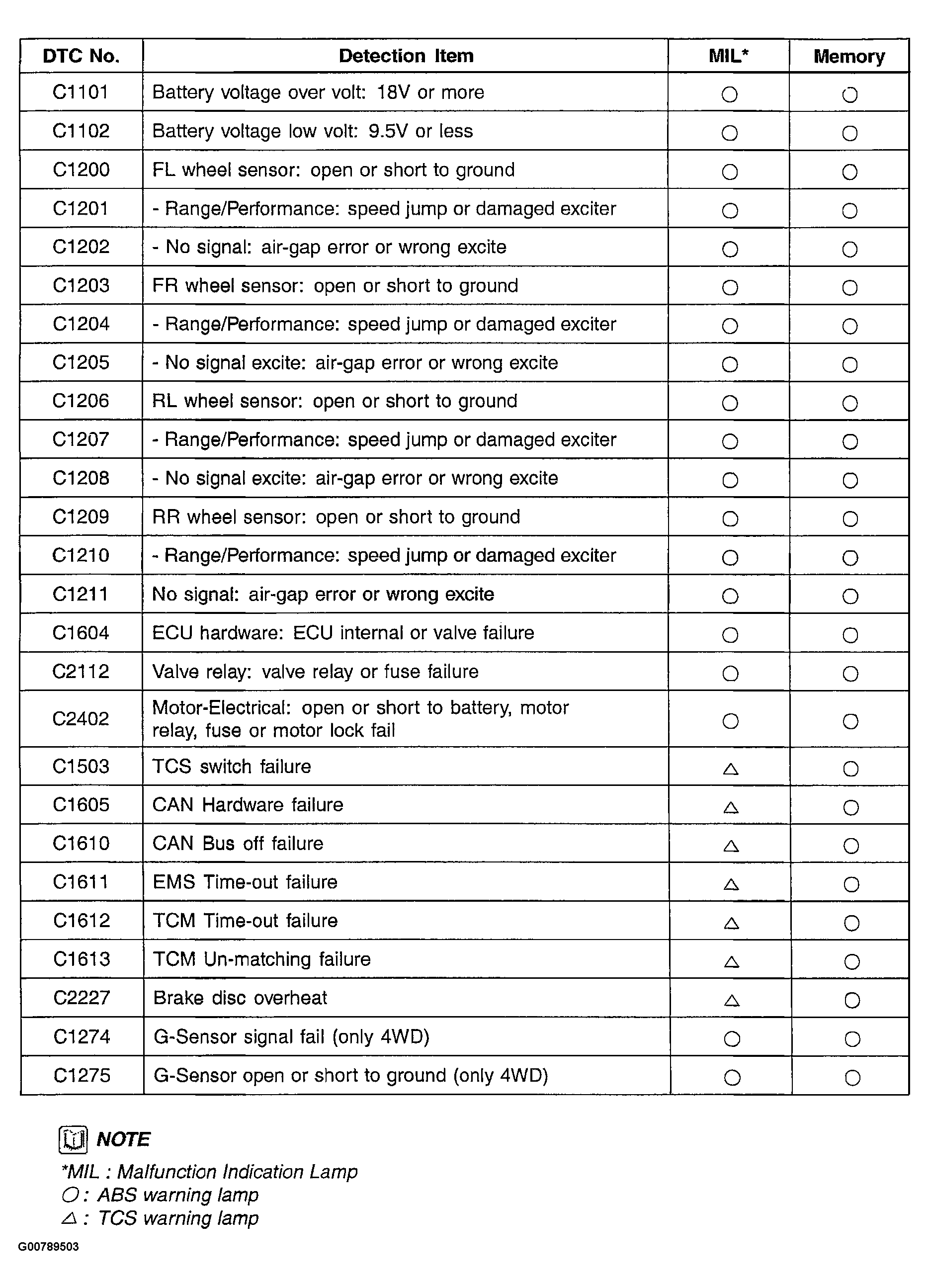

Fig 1: Diagnostic Trouble Code Chart

G00789503

Courtesy of HYUNDAI MOTOR CO.
