Circuit Diagram
Circuit Diagram

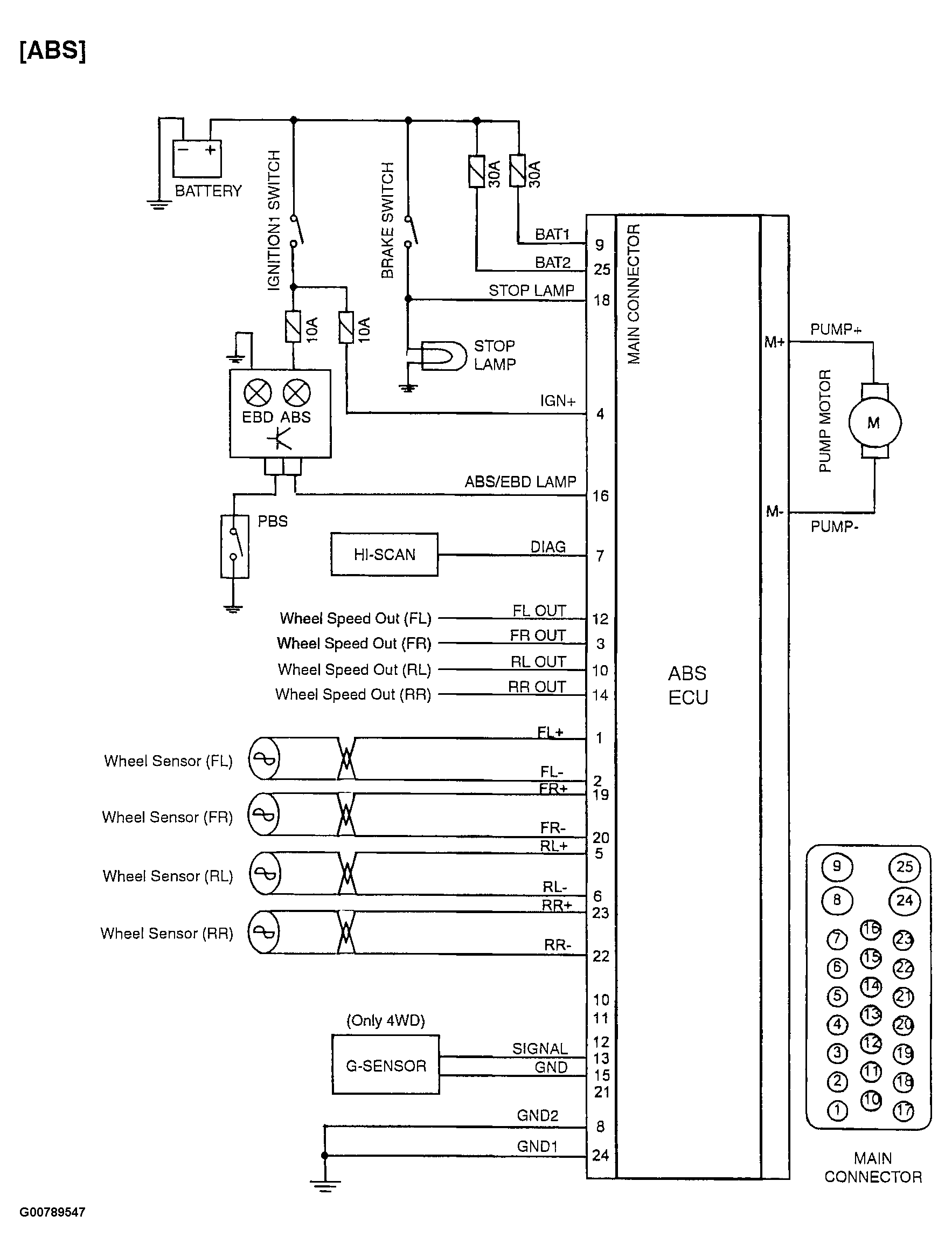

Fig 1: ABS Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.

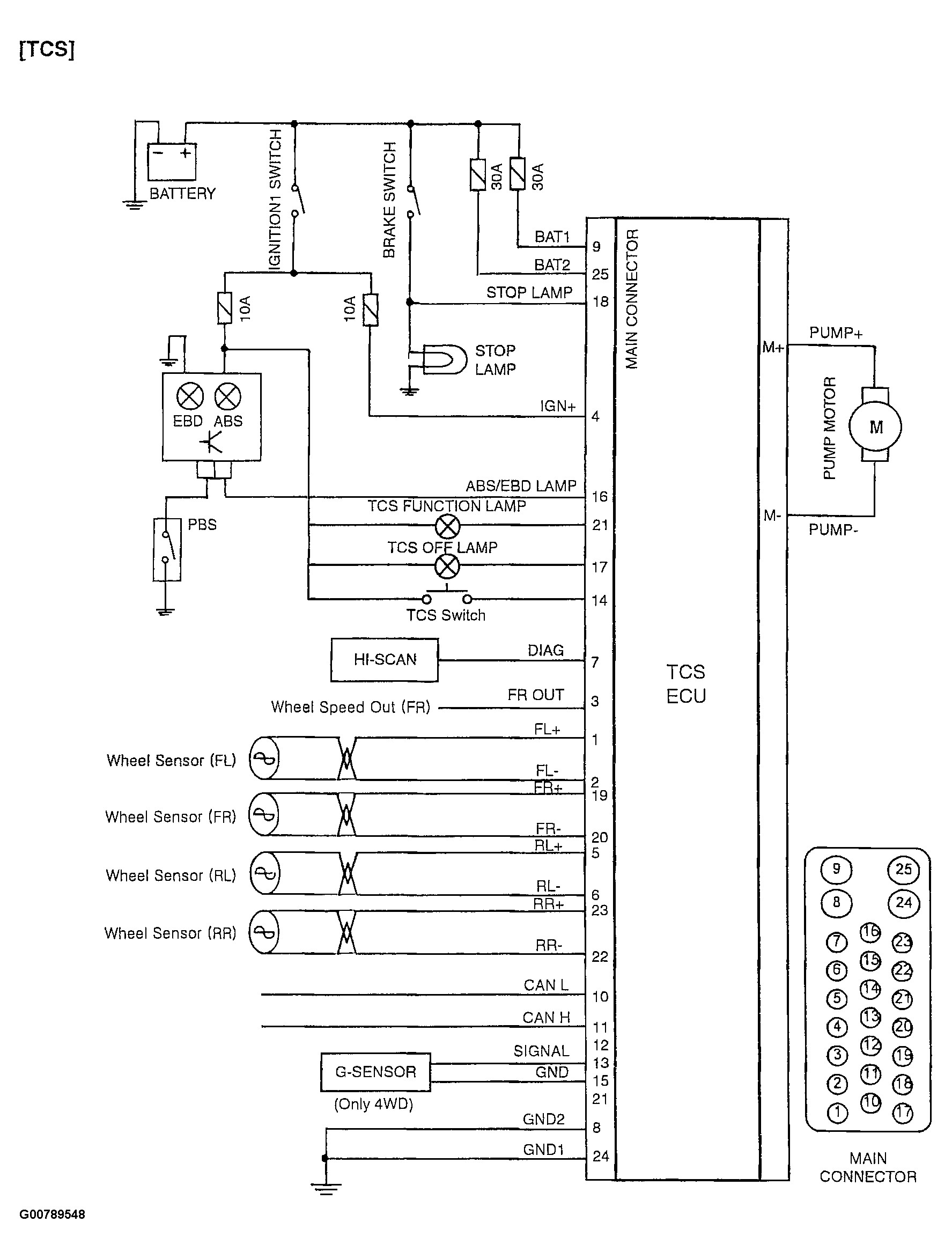

Fig 2: TCS Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
