Home >> Hyundai >> 2004 >> Santa Fe LX, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System (3.5L) >> MFI Control System >> Engine Coolant Temperature (ECT) Sensor >> Troubleshooting Procedures

Troubleshooting Procedures

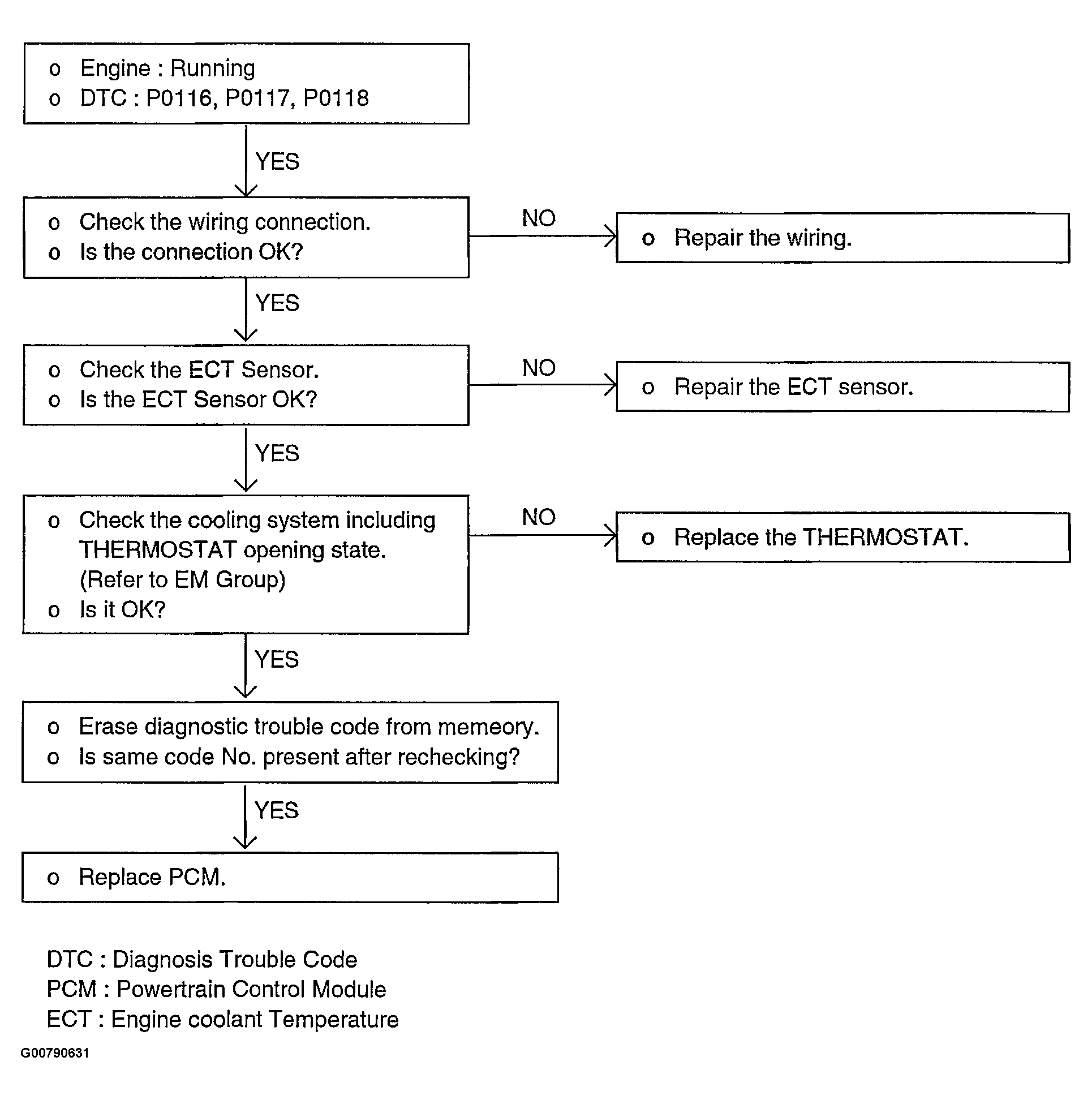

Fig 1: Troubleshooting Procedure Flow Chart
G00790631Courtesy of HYUNDAI MOTOR CO.
