Timing Belt: Components

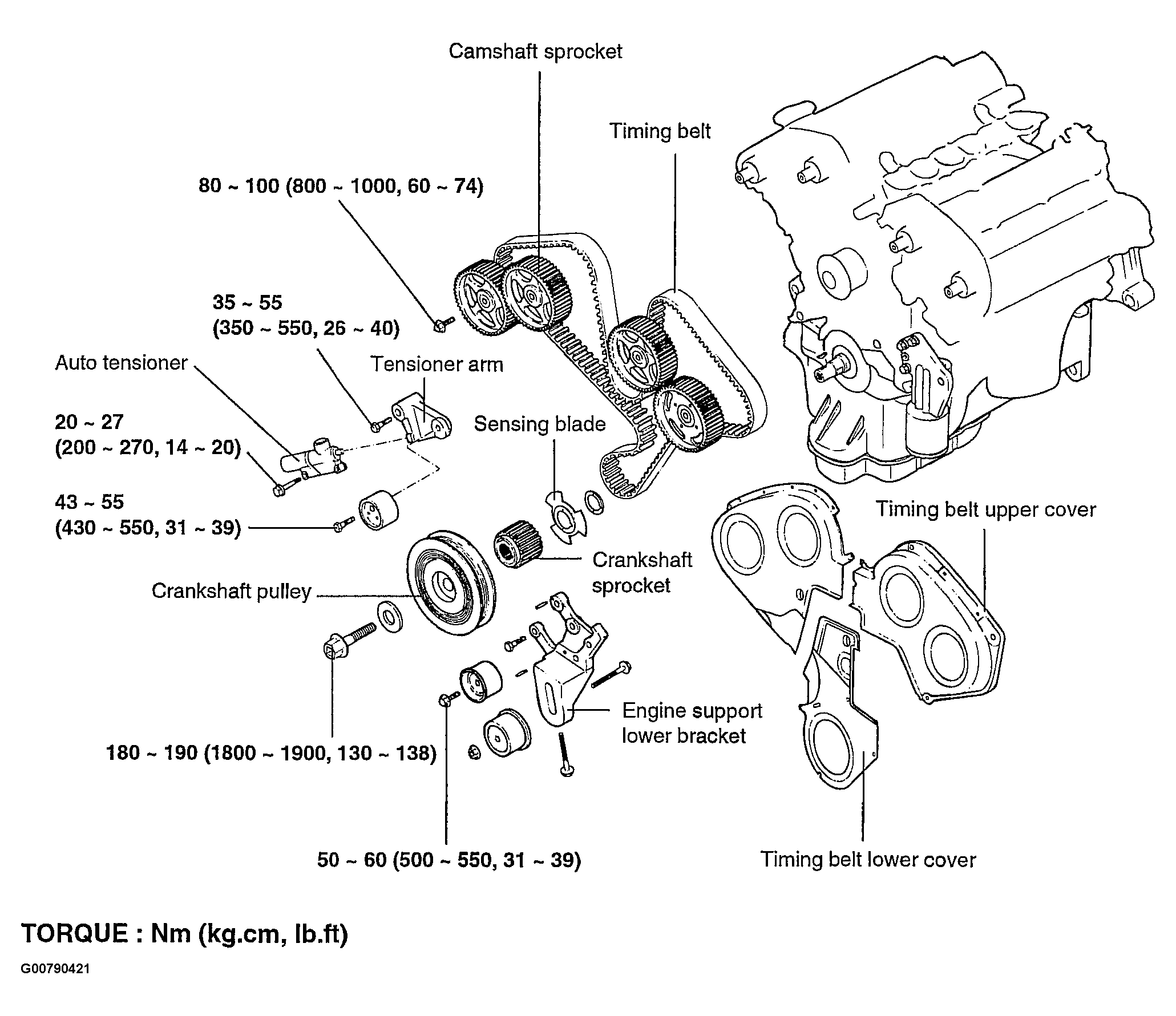

Fig 1: Timing System Components (1 Of 2)

G00790421

Courtesy of HYUNDAI MOTOR CO.

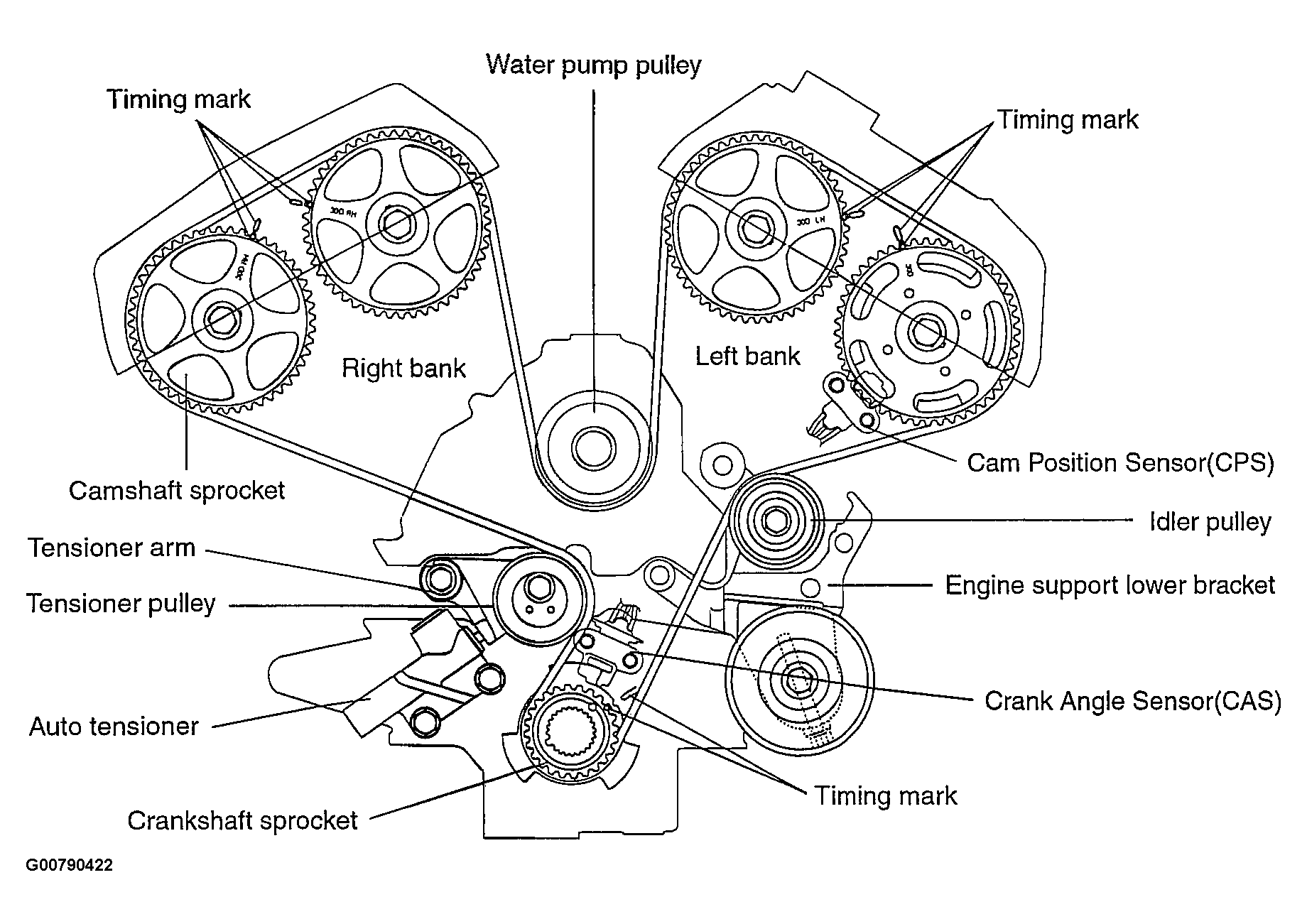

Fig 2: Timing System Components (2 Of 2)

G00790422

Courtesy of HYUNDAI MOTOR CO.
