Engine Mounting

  1. Remove the power steering hose from the engine mount bracket.

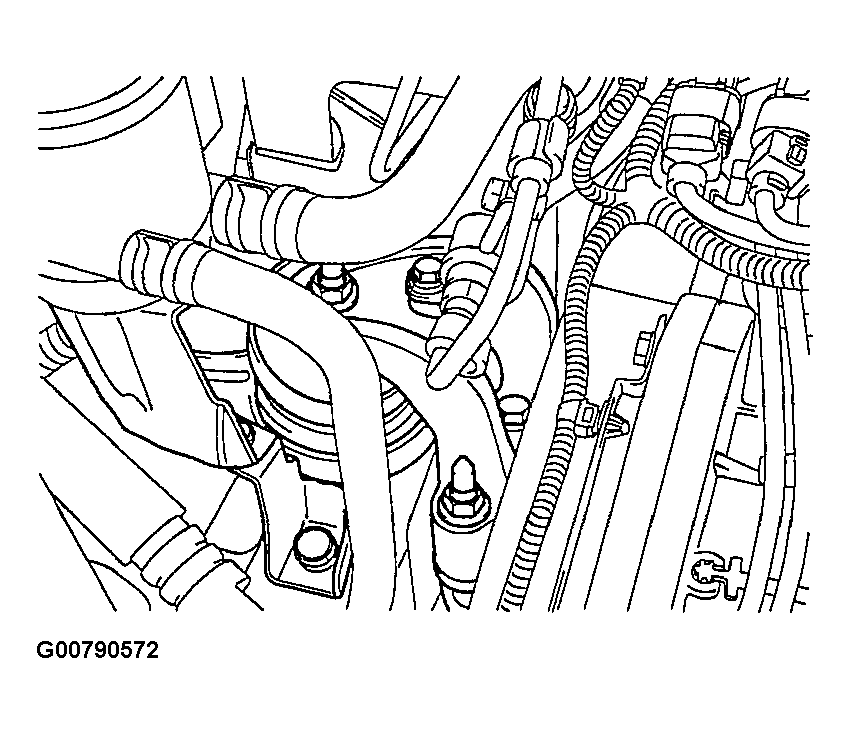

    Fig 1: Identifying Power Steering Hose On Engine Mount Bracket
    G00790572Courtesy of HYUNDAI MOTOR CO.
  2. Remove the engine mount bracket bolts and nut.
  3. Remove the engine mount bracket from the engine.
