Repair and Diagnosis
>>
Transmission
>>
Manual Transaxle System
>>
General
>>
Troubleshooting (M/T)
Troubleshooting (M/T)

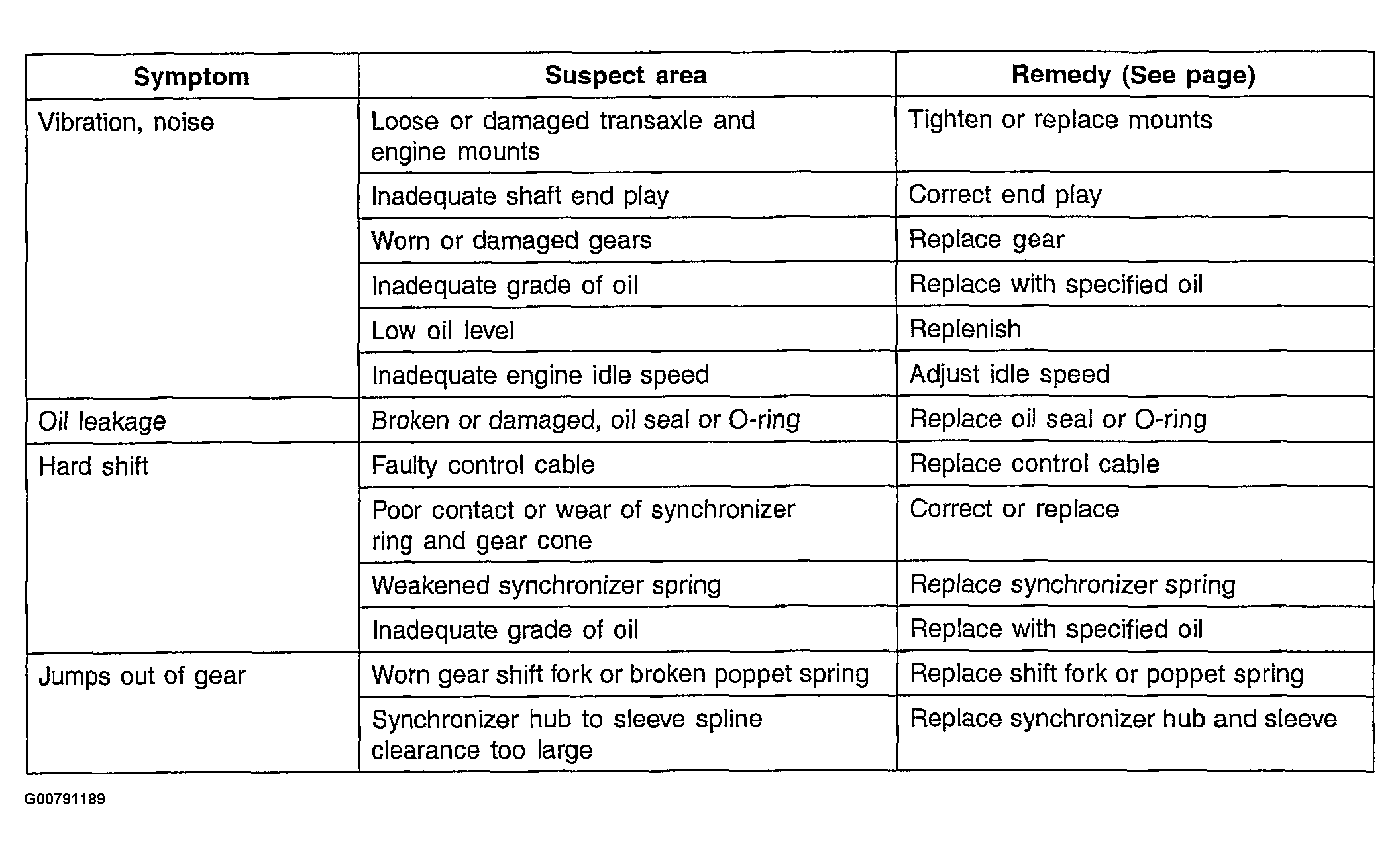

Fig 1: Troubleshooting (M/T) Table
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
