Home >> Hyundai >> 2004 >> Santa Fe Base, Standard >> Repair and Diagnosis >> Transmission >> Manual Transaxle System >> General >> LUBRICATIONS

Manual Transaxle System: General: LUBRICATIONS

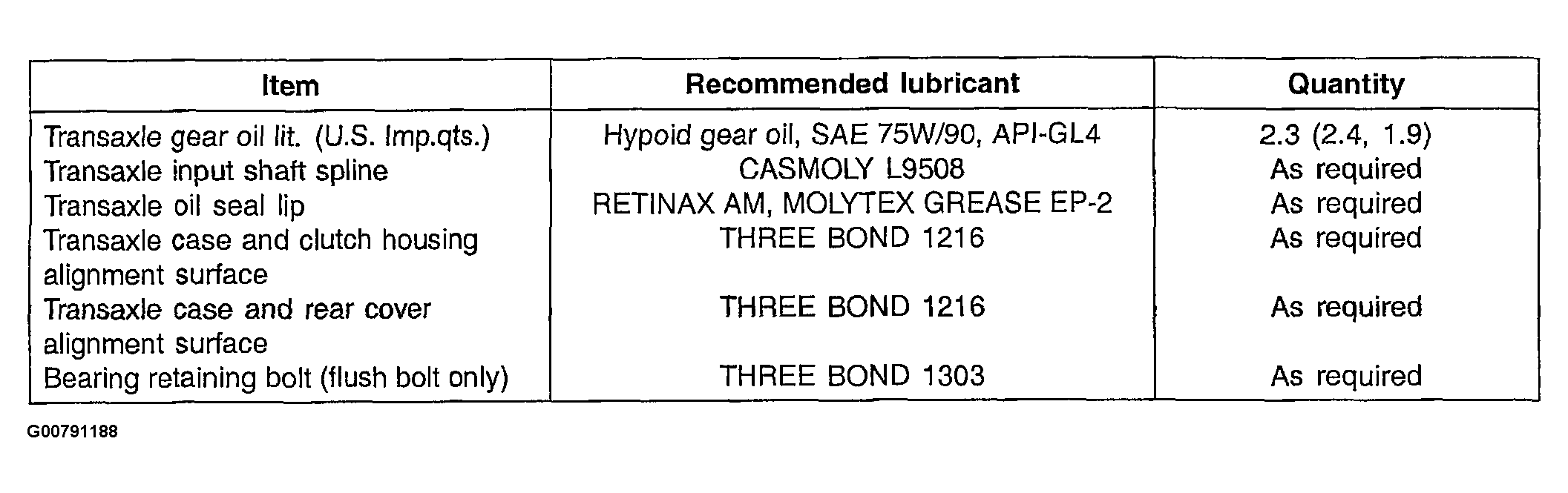

Fig 1: Lubrications Table

G00791188

Courtesy of HYUNDAI MOTOR CO.
