Home >> Hyundai >> 2004 >> Santa Fe Base, Standard >> Repair and Diagnosis >> Transmission >> Clutch System >> Clutch System >> Clutch Cover And Disc >> Components

Clutch Cover And Disc: Components

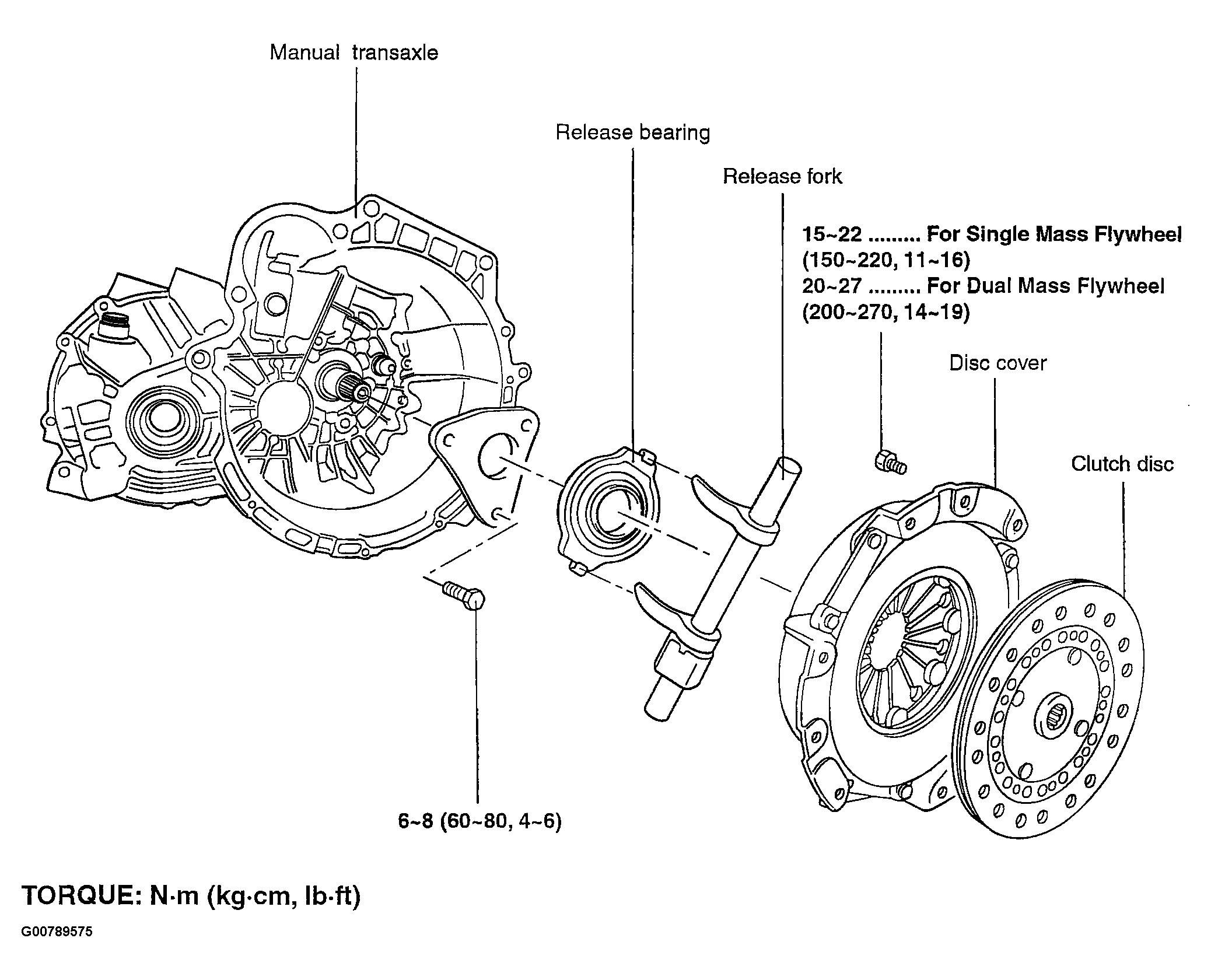

Fig 1: Identifying Clutch Cover & Disc Components

G00789575

Courtesy of HYUNDAI MOTOR CO.
