Inspection Procedure 6

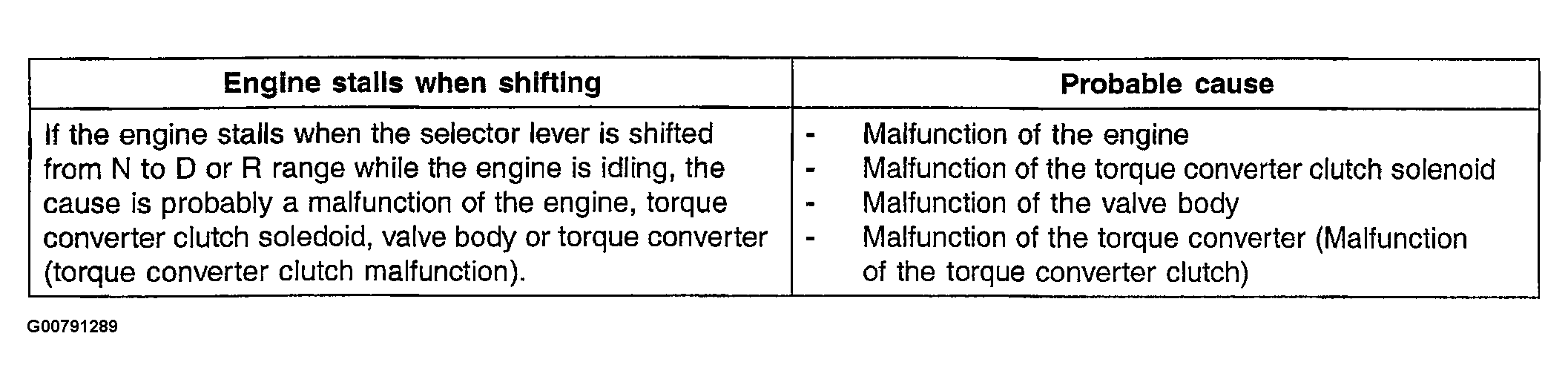

Fig 1: Inspection Procedure 6 Definitions & Probable Causes

G00791289

Courtesy of HYUNDAI MOTOR CO.

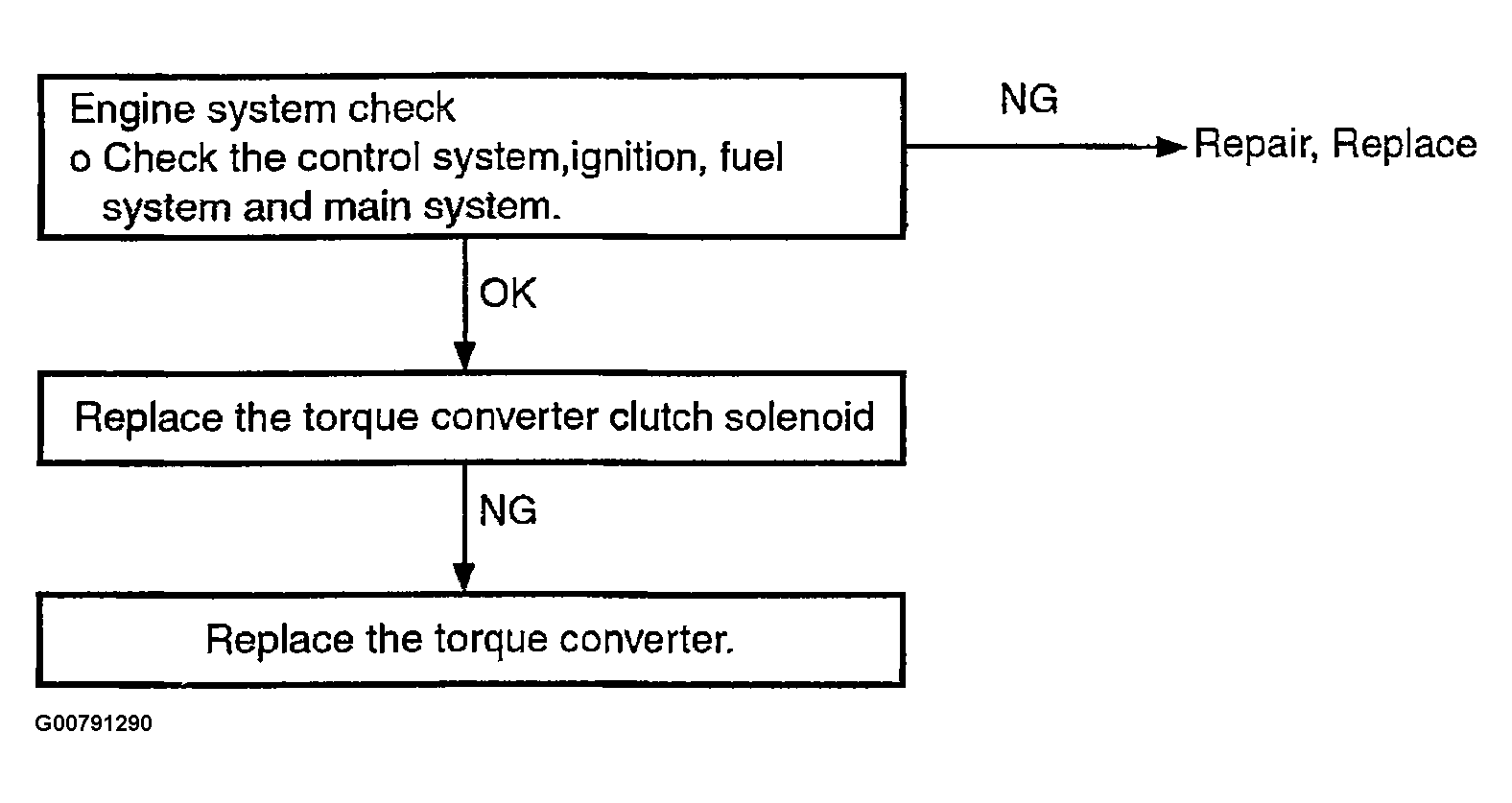

Fig 2: Inspection Procedure 6 Diagnostic Flow Chart

G00791290

Courtesy of HYUNDAI MOTOR CO.
