Power Steering Gear Box: Removal

  1. Drain the power steering fluid.
  2. Disconnect the pressure hose and return tube.
  3. Remove the joint assembly connecting bolt.

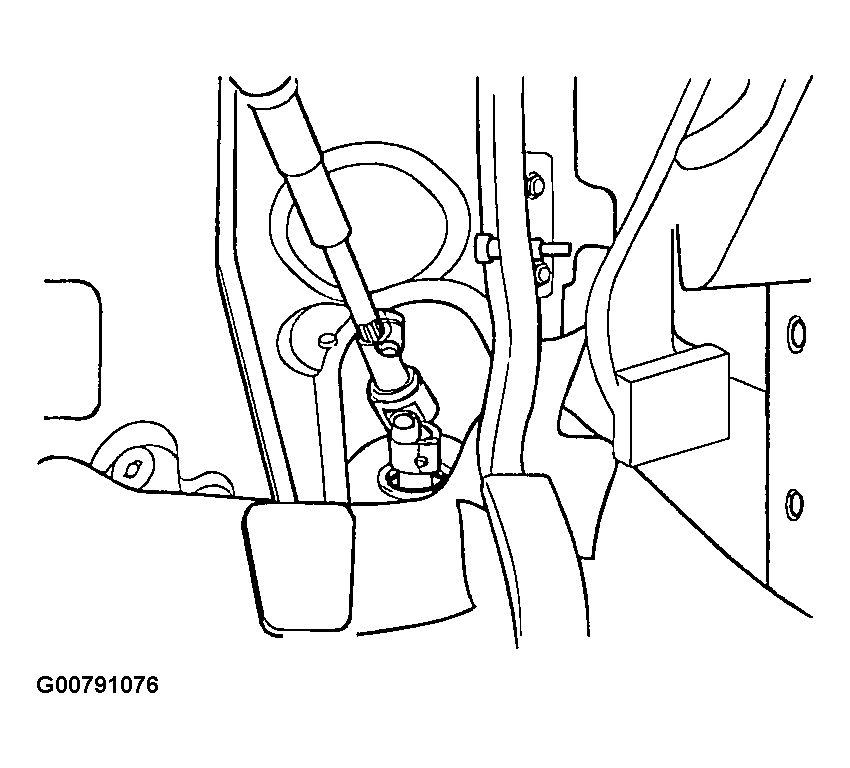

    Fig 1: View Of Steering Column Shaft Universal Joint
    G00791076Courtesy of HYUNDAI MOTOR CO.
  4. Using the special tool (09568-31000), disconnect the tie rod end from the knuckle arm.

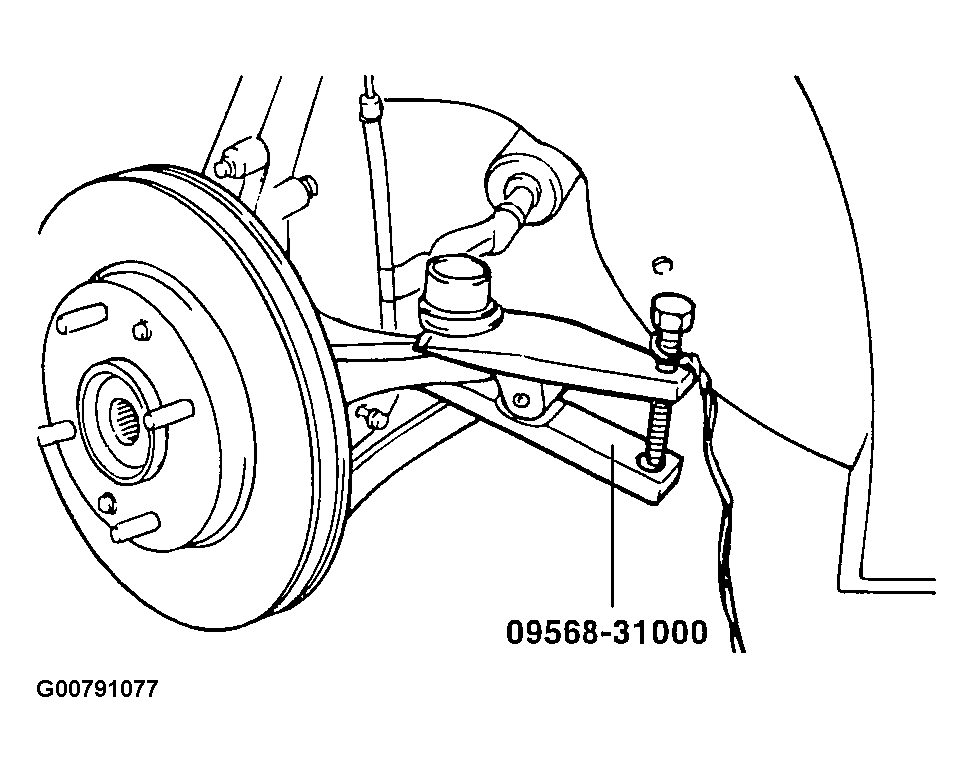

    Fig 2: Disconnecting Tie Rod From Knuckle Arm
    G00791077Courtesy of HYUNDAI MOTOR CO.
  5. Remove the feed tube.

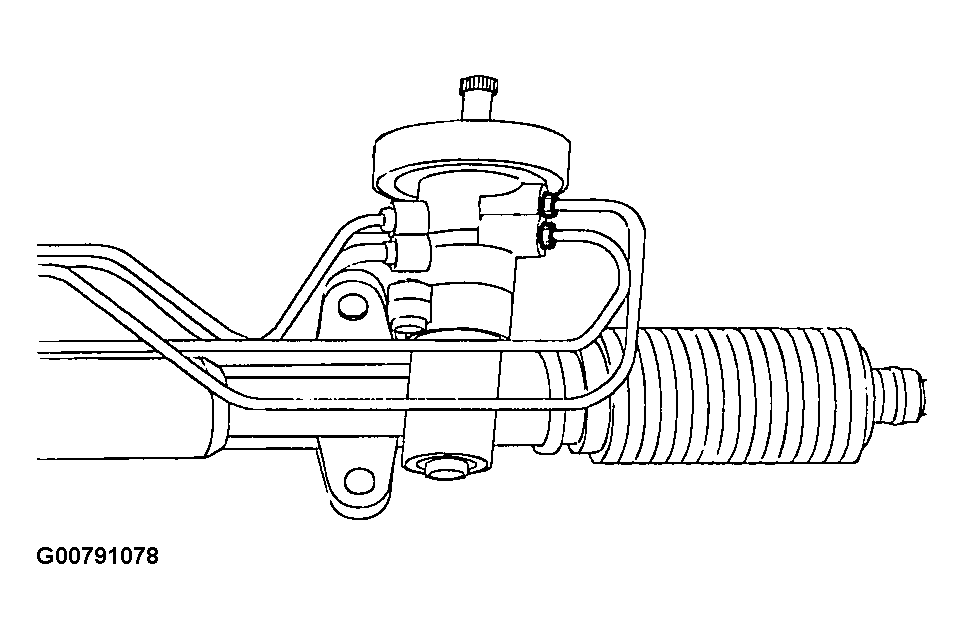

    Fig 3: Identifying Feed Tube
    G00791078Courtesy of HYUNDAI MOTOR CO.
  6. Remove the steering gear box mounting bolts and remove the steering gear box assembly together with mounting rubber.
CAUTION: When removing the gear box, pull it out carefully and slowly to avoid damaging the boot.

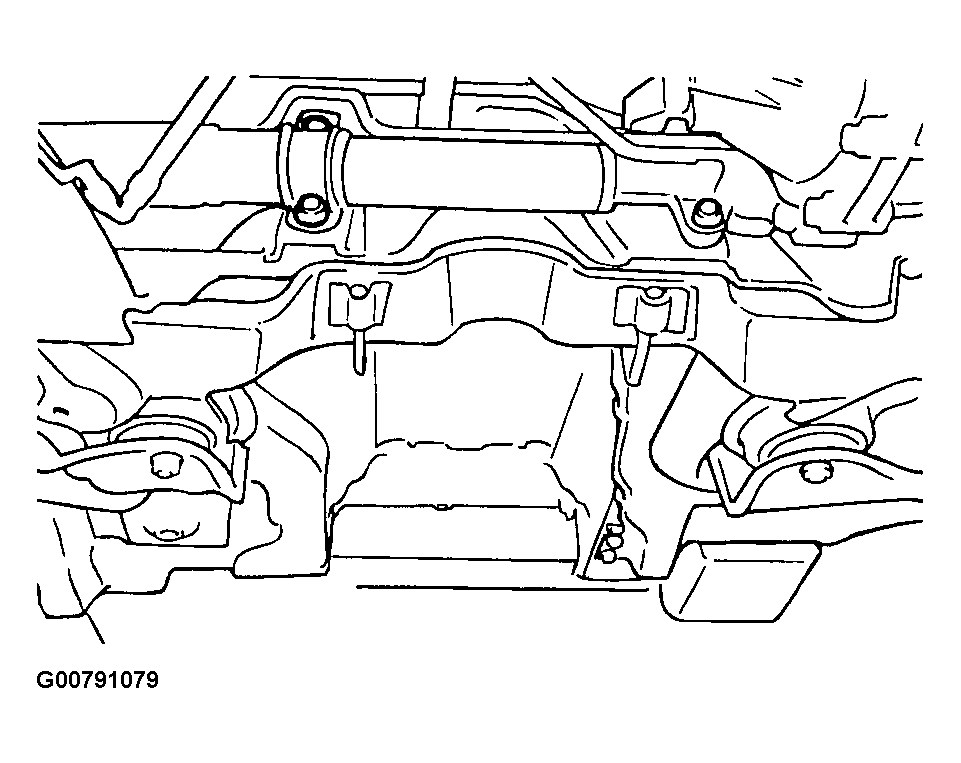

Fig 4: Identifying Steering Gear Box Mounting Bolts
G00791079Courtesy of HYUNDAI MOTOR CO.
