Checking Steering Angle

  1. Place the front wheel on a turning radius gauge and measure the steering angle.

    Standard value

    Wheel angle

    Inside wheel : 35.1° +/- 1°30'

    Outside wheel : 30.7°

  2. If the measured value is not within the standard value, adjust the toe and inspect again.
NOTE:
  1. After adjusting the tie rod, assemble the bellows so they are not twisted.
  2. The inner steering angle is changed 0.86° per each rotation of the tie rod.

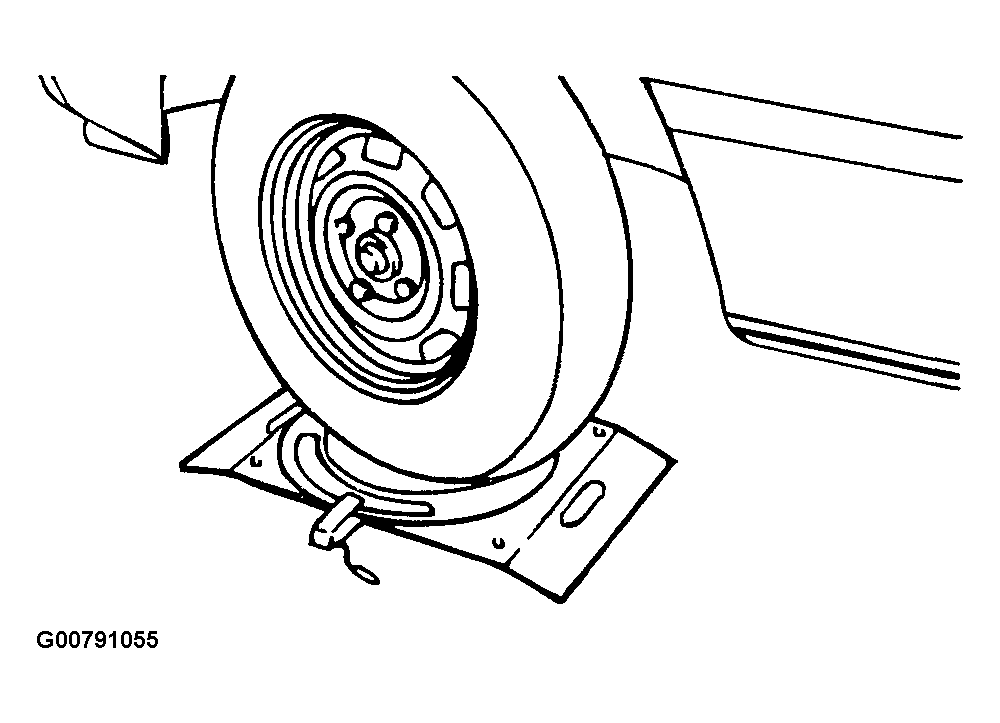

Fig 1: Measuring Steering Angle
G00791055Courtesy of HYUNDAI MOTOR CO.
