2.4L 4-Cylinder Engine: General: Troubleshooting

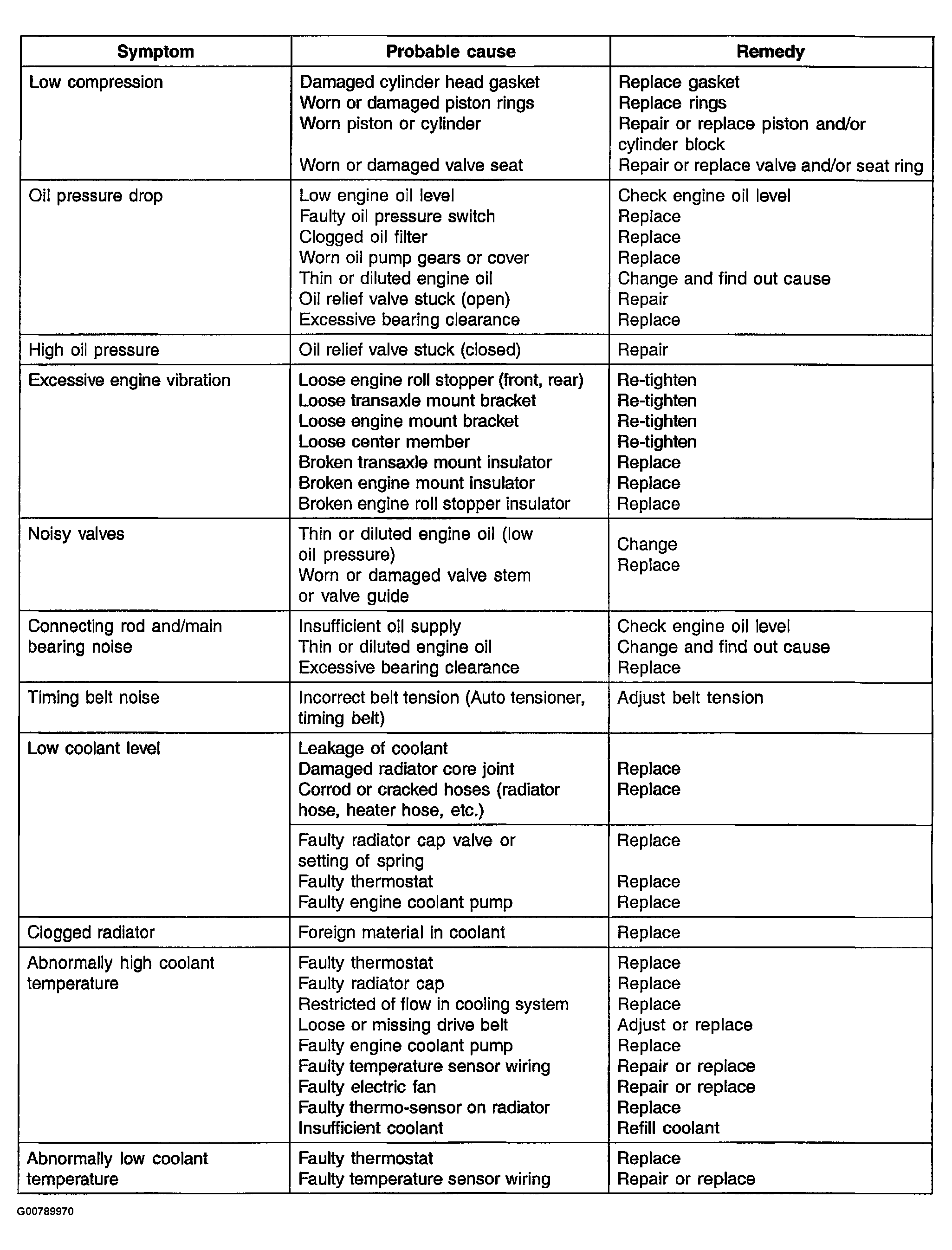

Fig 1: Trouble Shooting Table (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

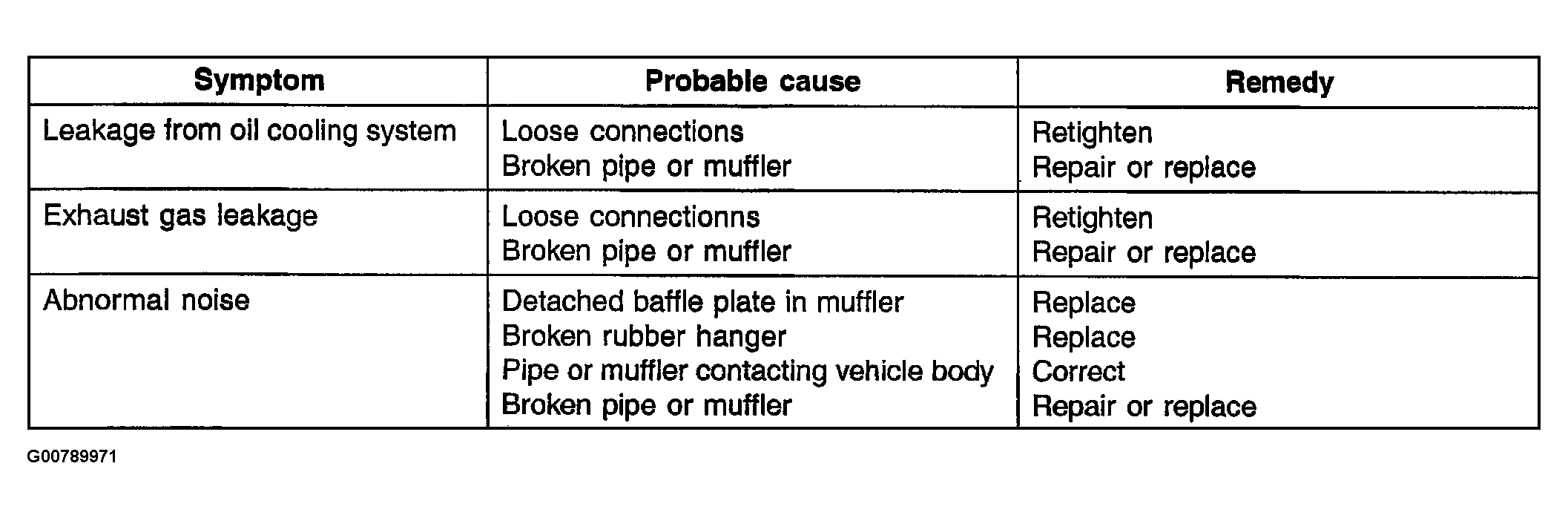

Fig 2: Trouble Shooting Table (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
