Windshield Wiper Motor Connector End View

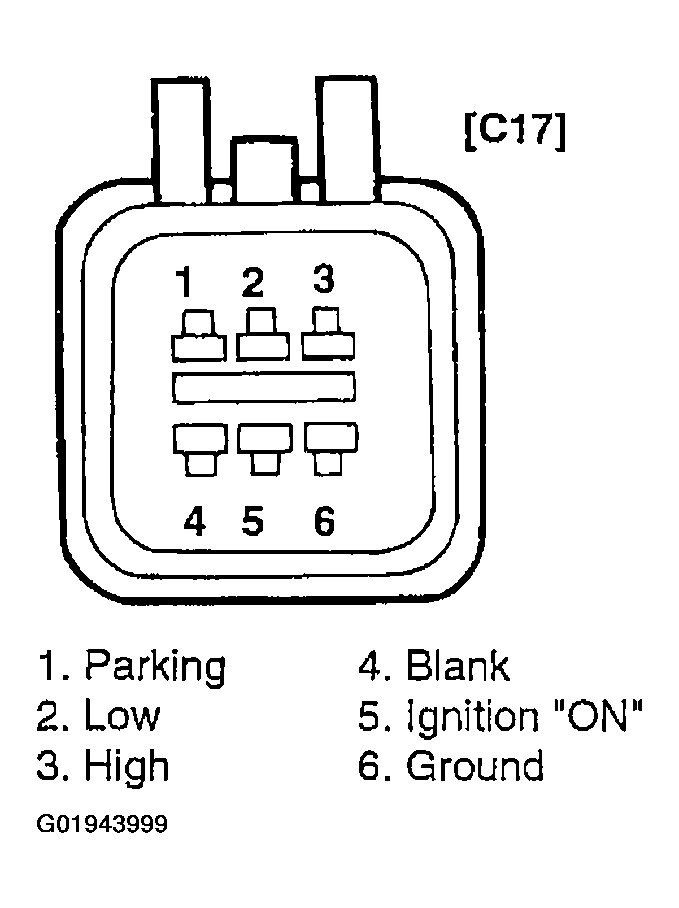

Fig 1: Windshield Wiper Motor Connector End View

G01943999

Courtesy of HYUNDAI MOTOR AMERICA
