Engine Compartment Junction Block

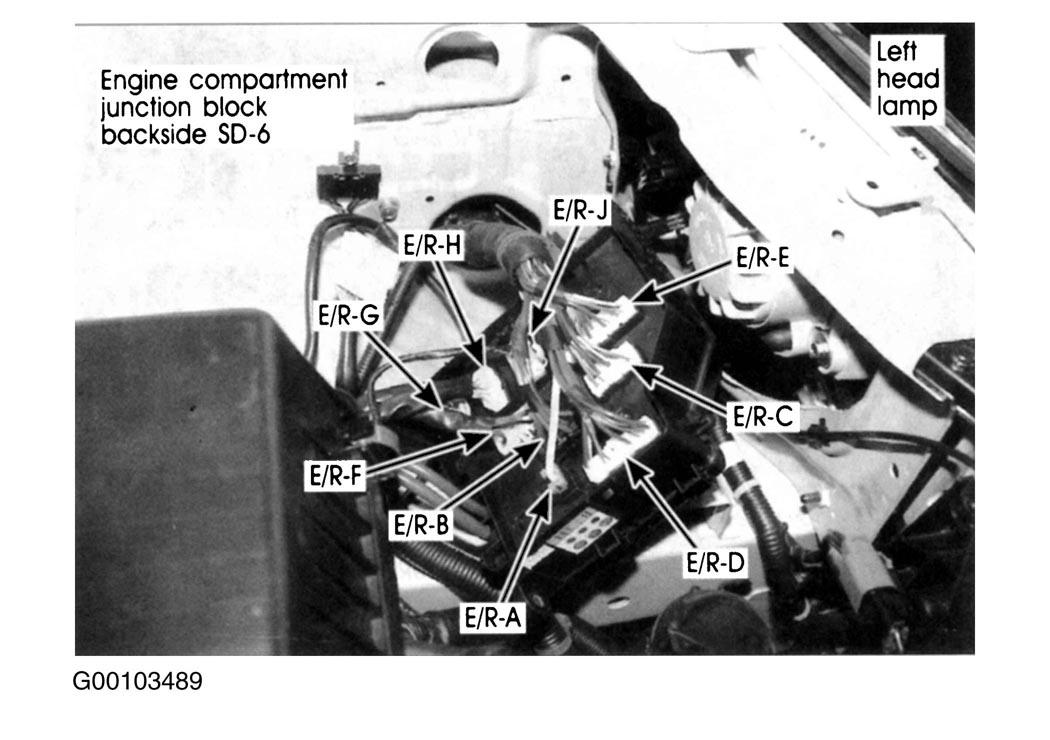

NOTE: The engine compartment junction block is located in left front corner of engine compartment, behind left headlamp. See Fig 1 .

Fig 1: Locating Engine Compartment Junction Block

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Identifying Engine Compartment Junction Block - Front

Courtesy of HYUNDAI MOTOR CO.

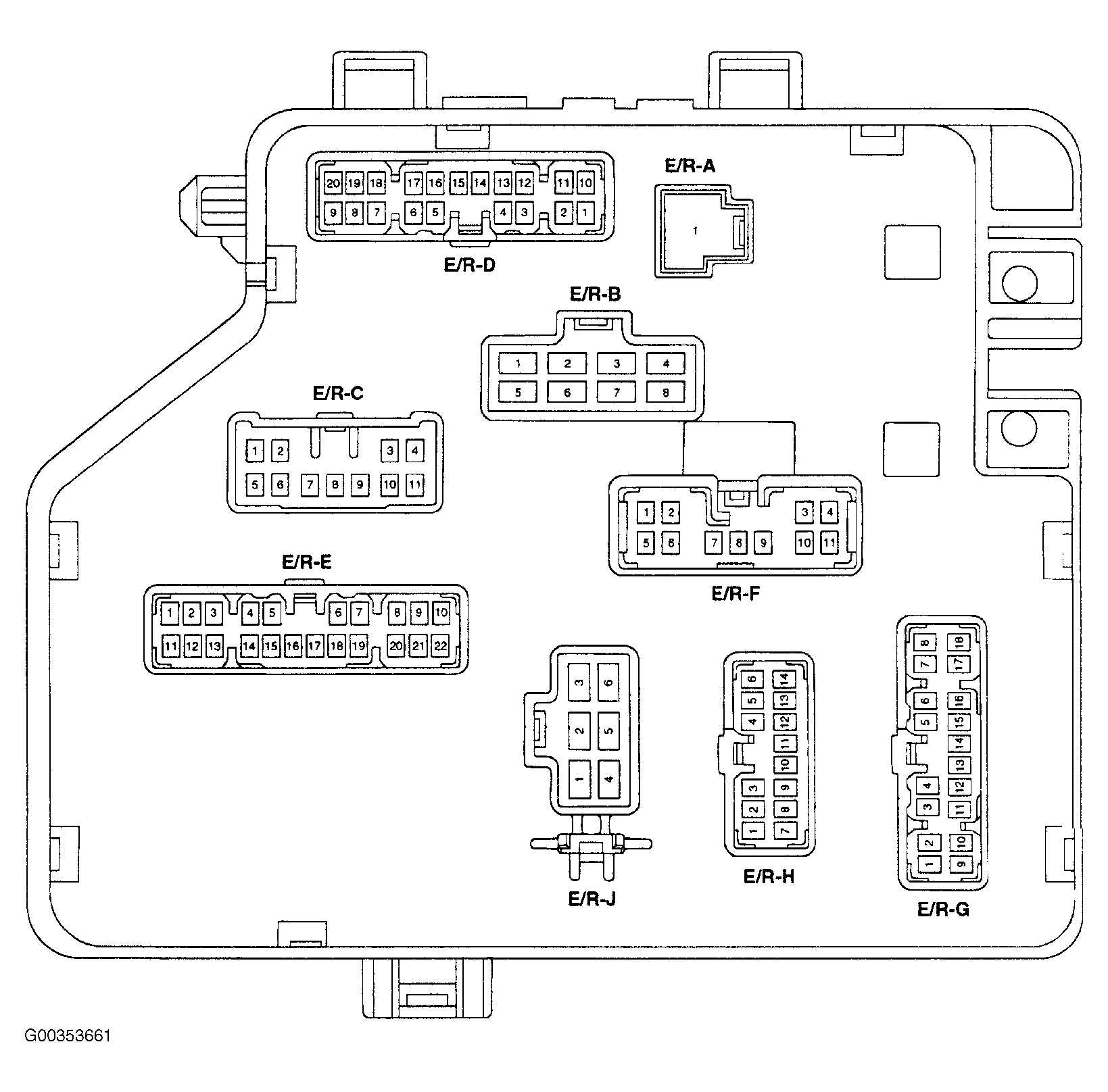

Fig 3: Identifying Engine Compartment Junction Block - Rear

Courtesy of HYUNDAI MOTOR CO.

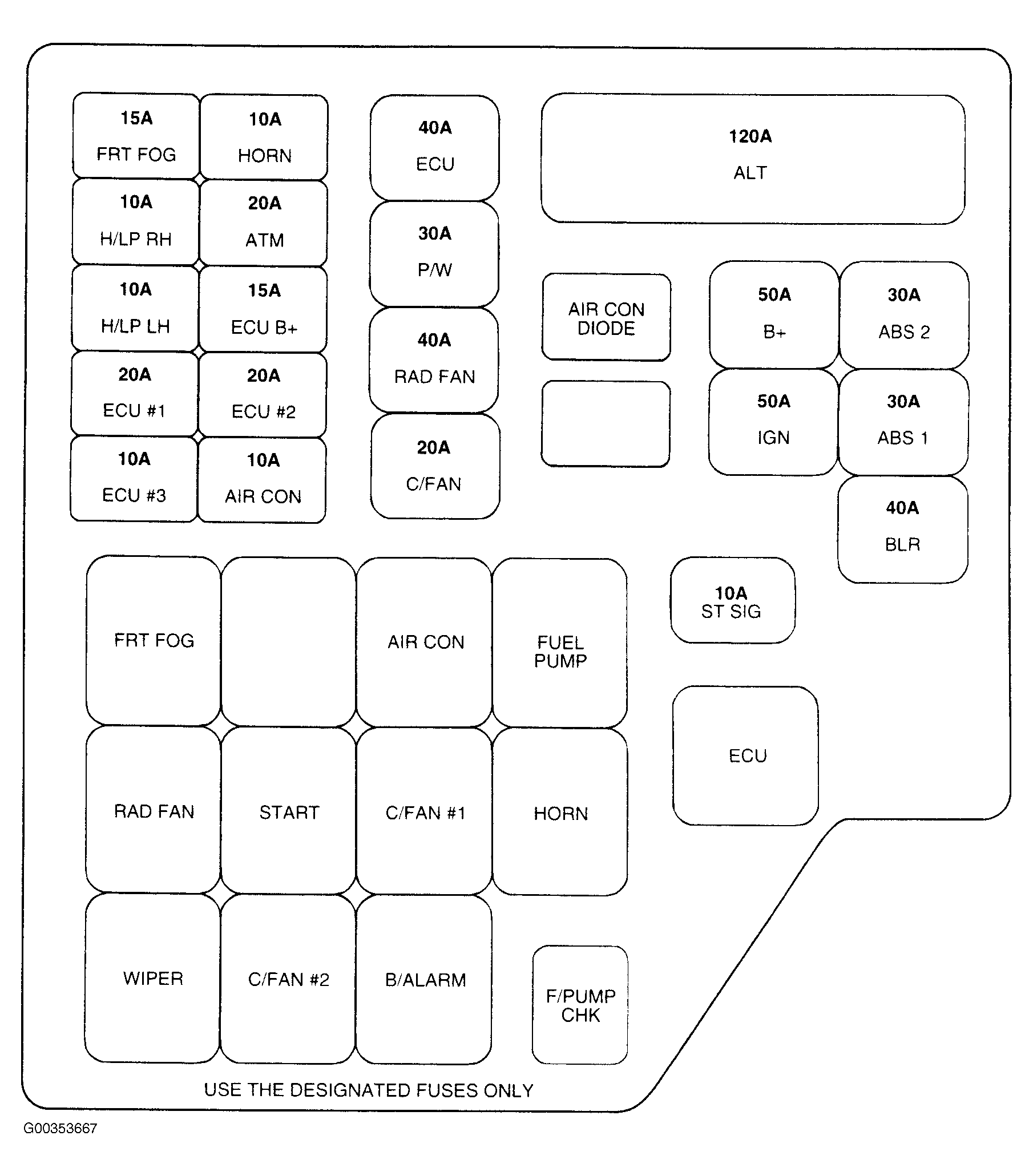

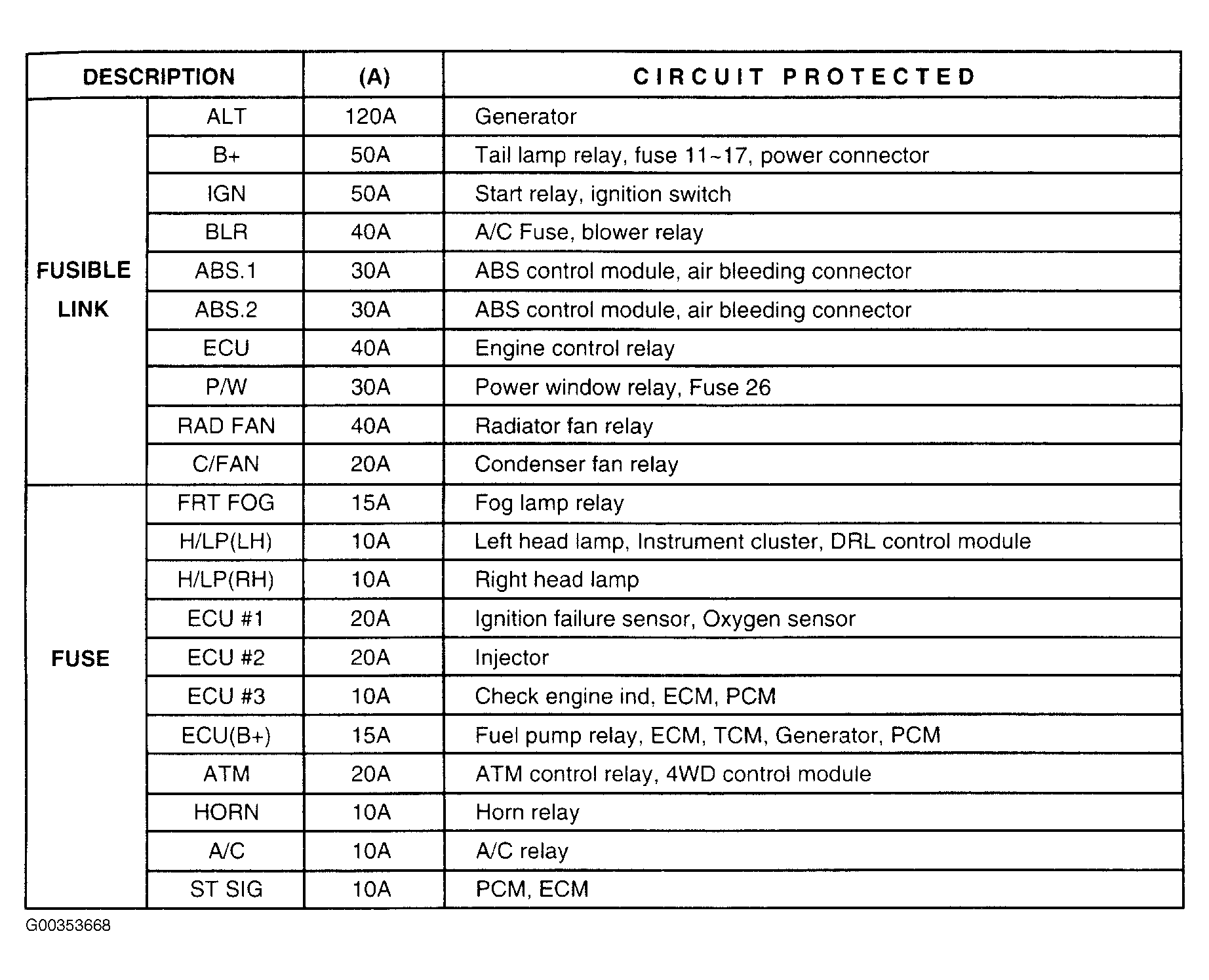

Fig 4: Identifying Engine Compartment Junction Block Fuses & Fusible Links

Courtesy of HYUNDAI MOTOR CO.
