Air Quality Sensor Connector End View

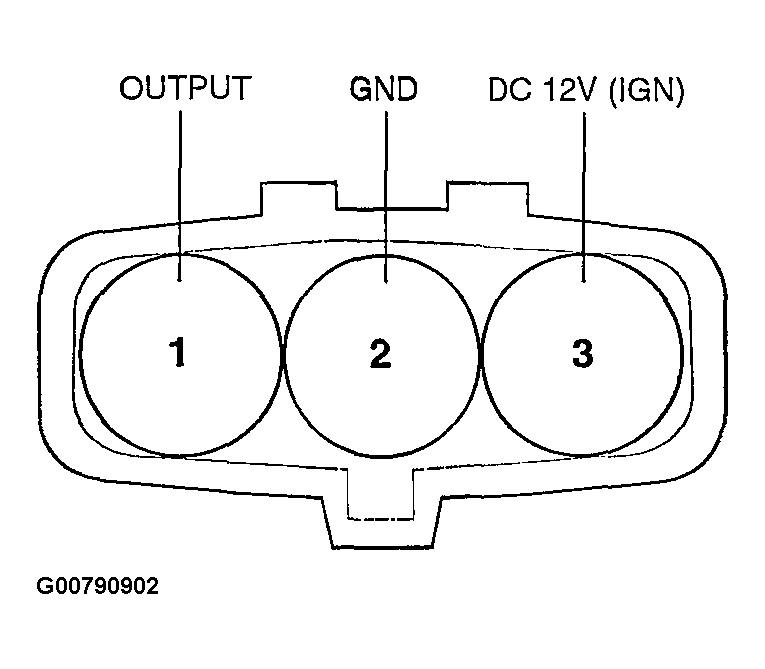

Fig 1: Air Quality Sensor Connector End View

G00790902

Courtesy of HYUNDAI MOTOR AMERICA
