Standard Flow Of Diagnostic Troubleshooting

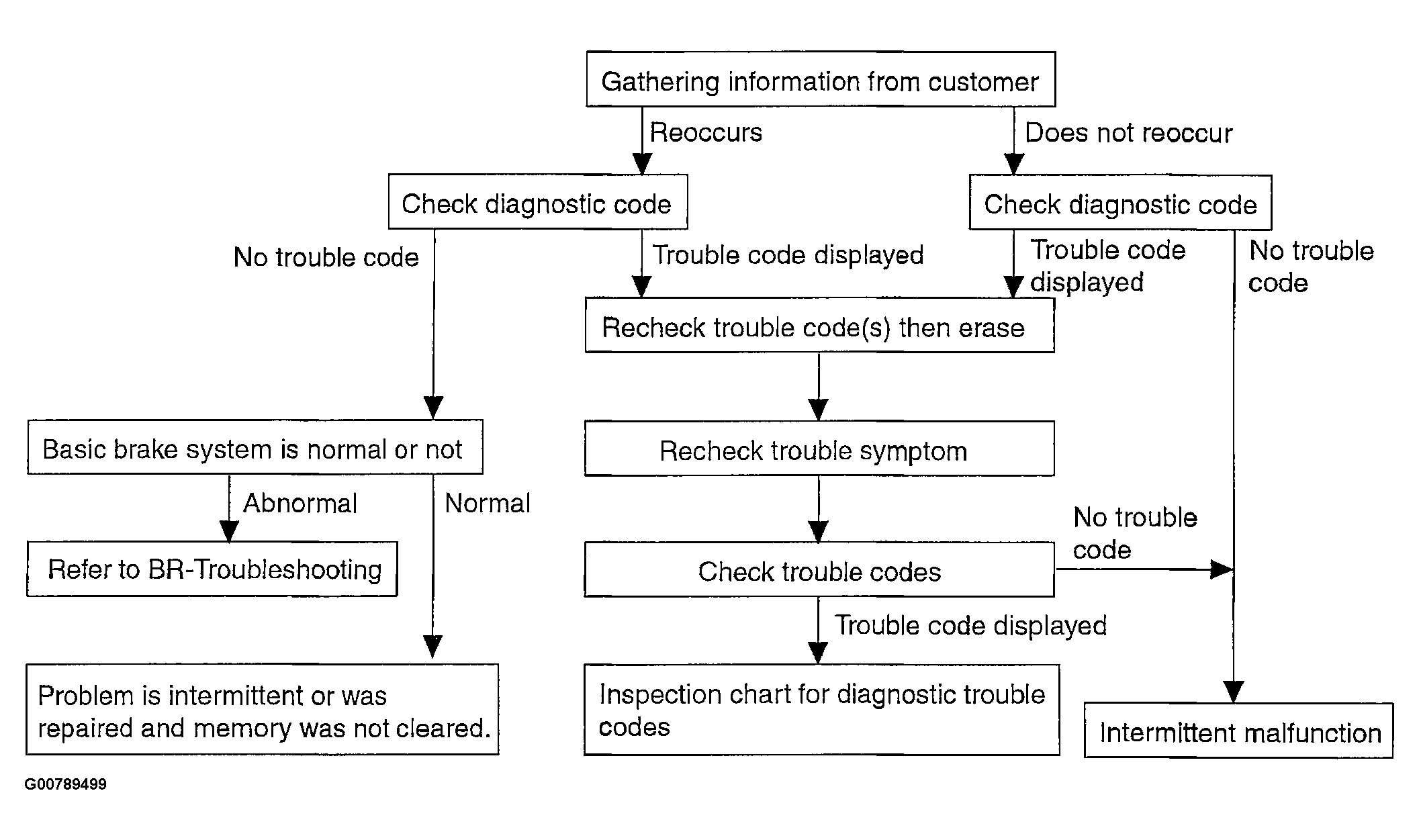

Fig 1: Troubleshooting Flow Chart
G00789499Courtesy of HYUNDAI MOTOR CO.

*Using the customer problem analysis check sheet for reference, ask the customer as much detail as possible about the problem.
