Chart 5

CD WILL NOT BE ACCEPTED

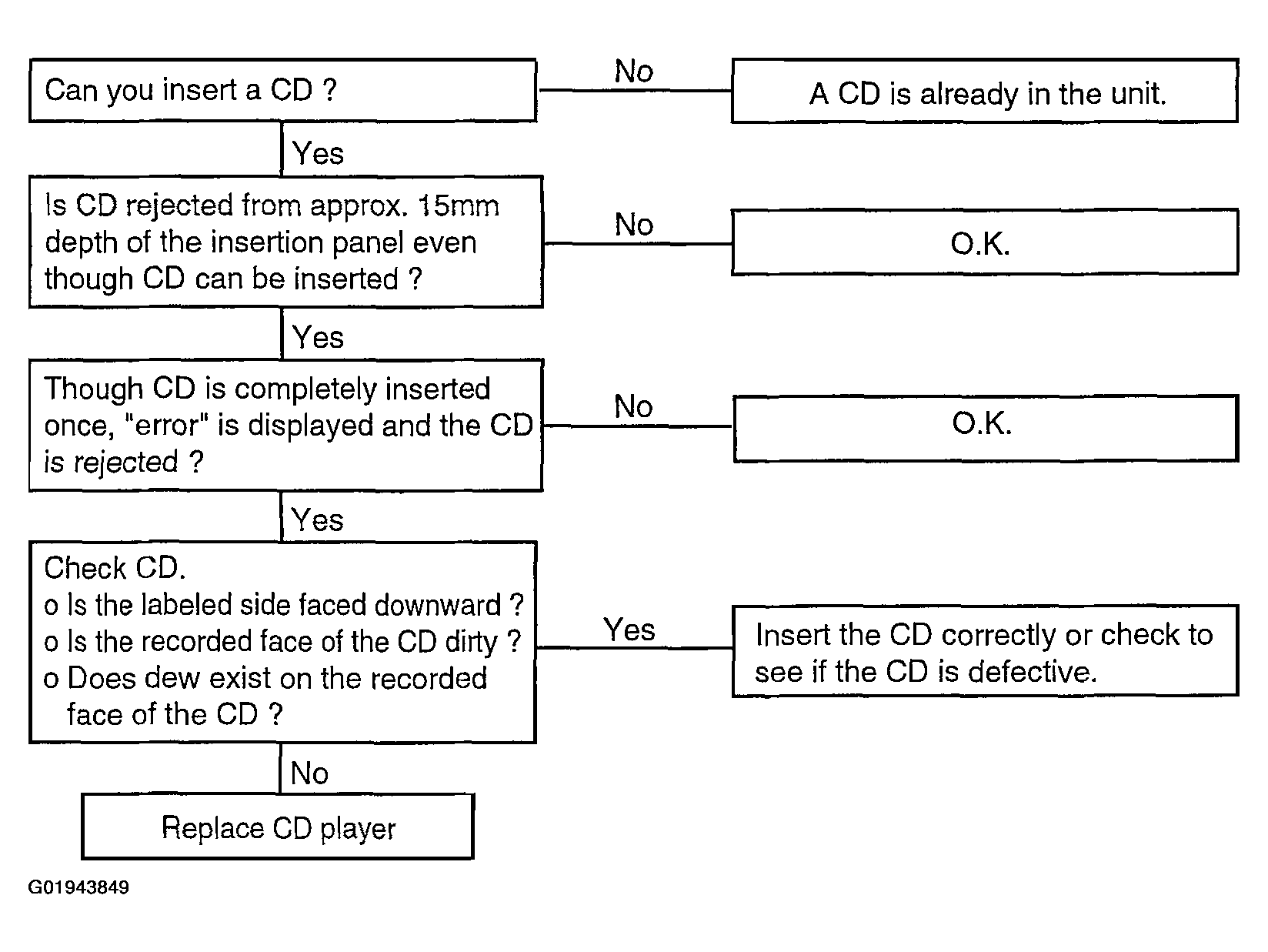

Fig 1: Will Not Accept CD
Courtesy of HYUNDAI MOTOR CO.
NO SOUND

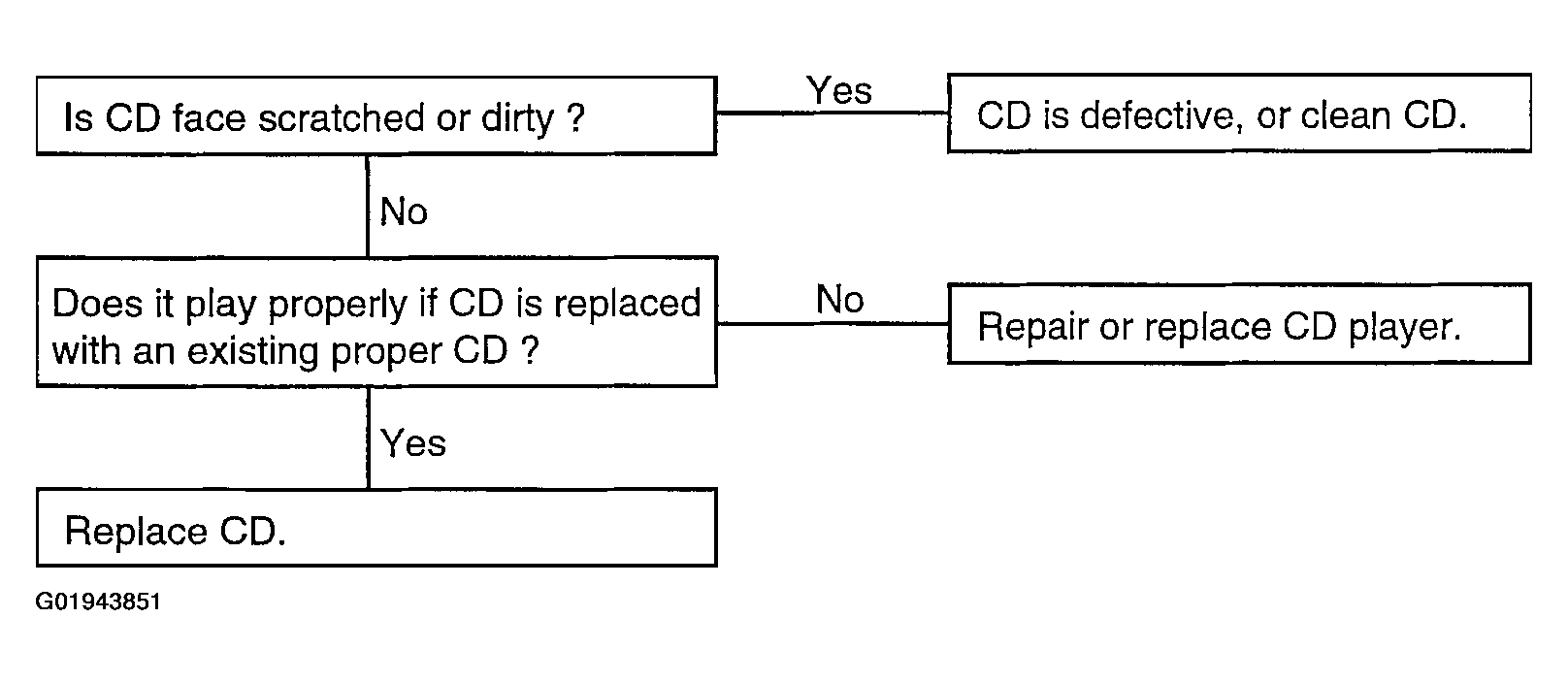

Fig 2: No Sound From CD
Courtesy of HYUNDAI MOTOR CO.
CD SOUND SKIPS
1. Sound sometimes skips when parking.

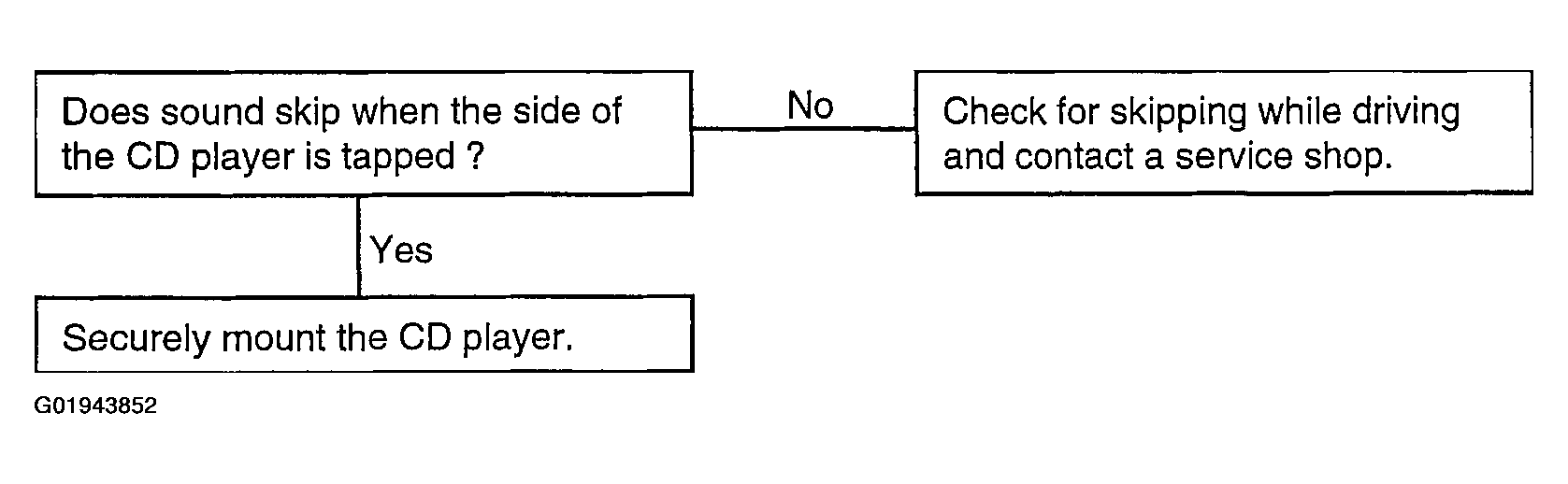

  Fig 3: Sound Skips When Parking
  Courtesy of HYUNDAI MOTOR CO.
2. Sound sometimes skips when driving.
  (Stop vehicle, and check it.)

  (Check by using a CD which is free of scratches, dirt or other damage.)

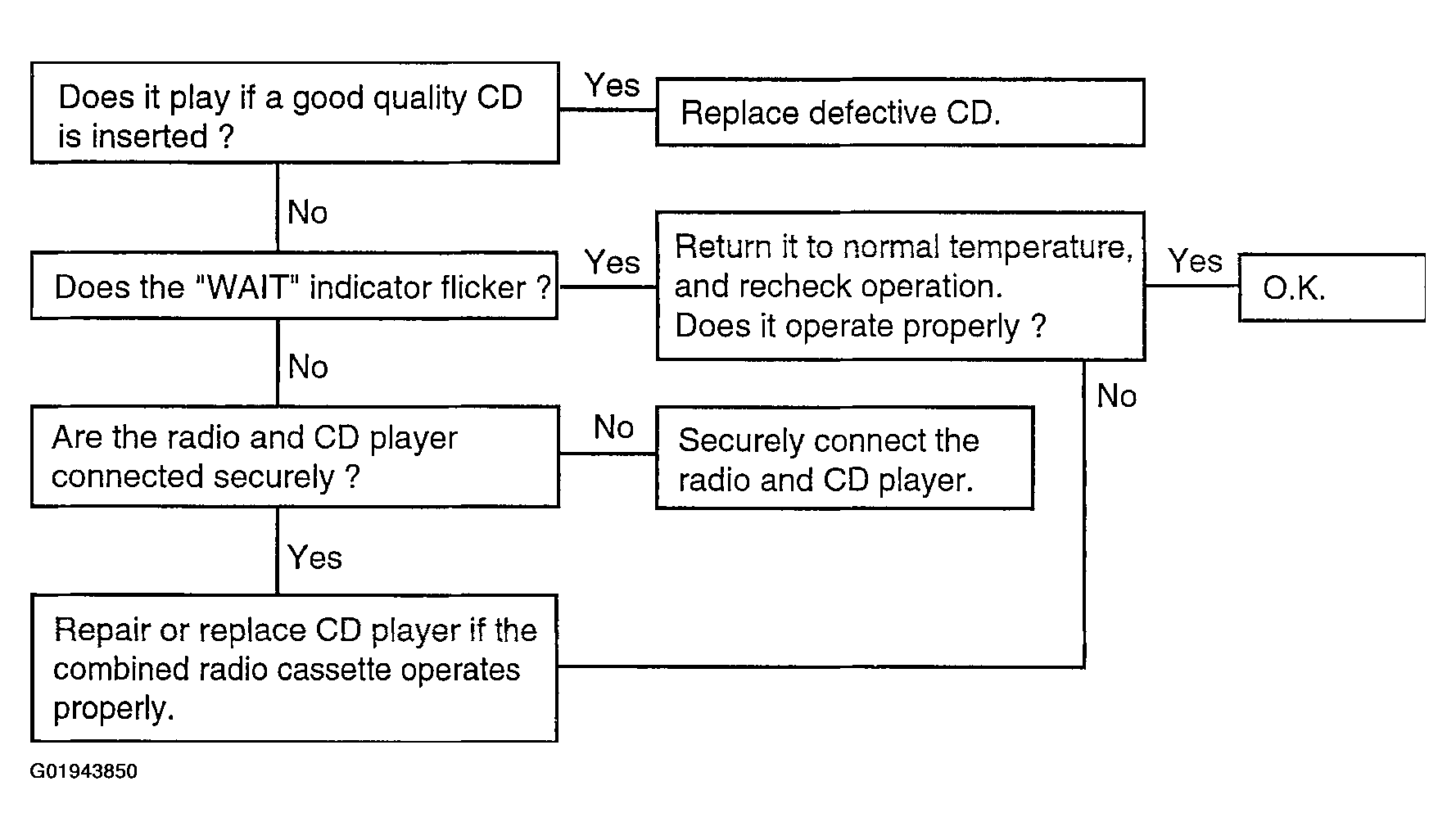

  Fig 4: Sound Skips When Driving
  Courtesy of HYUNDAI MOTOR CO.
SOUND QUALITY IS POOR

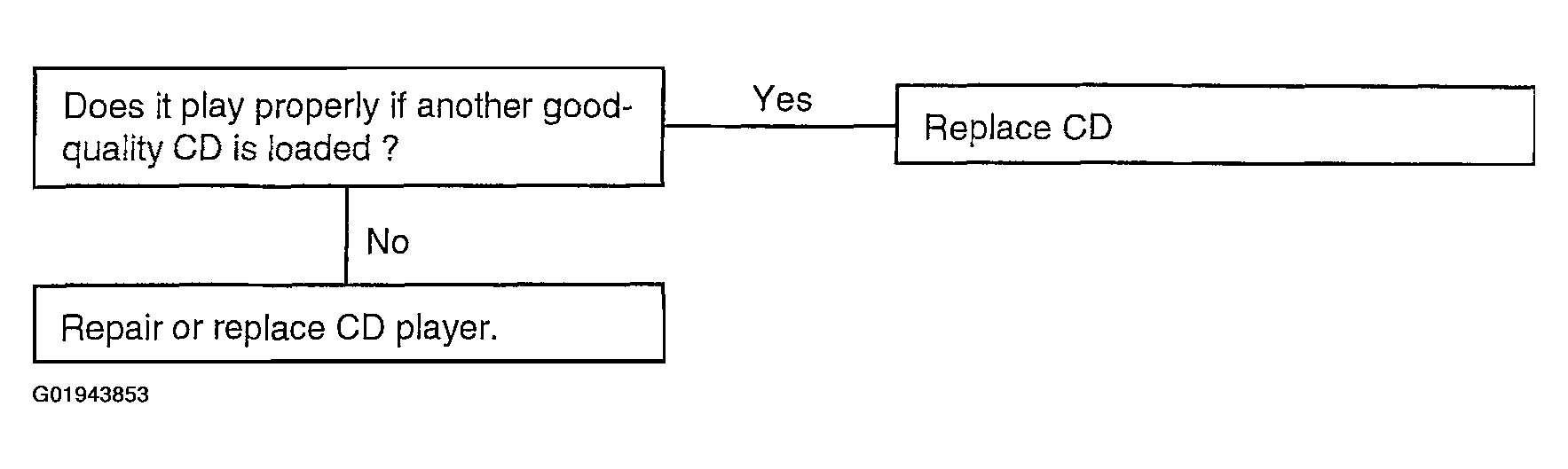

Fig 5: Poor CD Sound Quality
Courtesy of HYUNDAI MOTOR CO.
CD WILL NOT EJECT

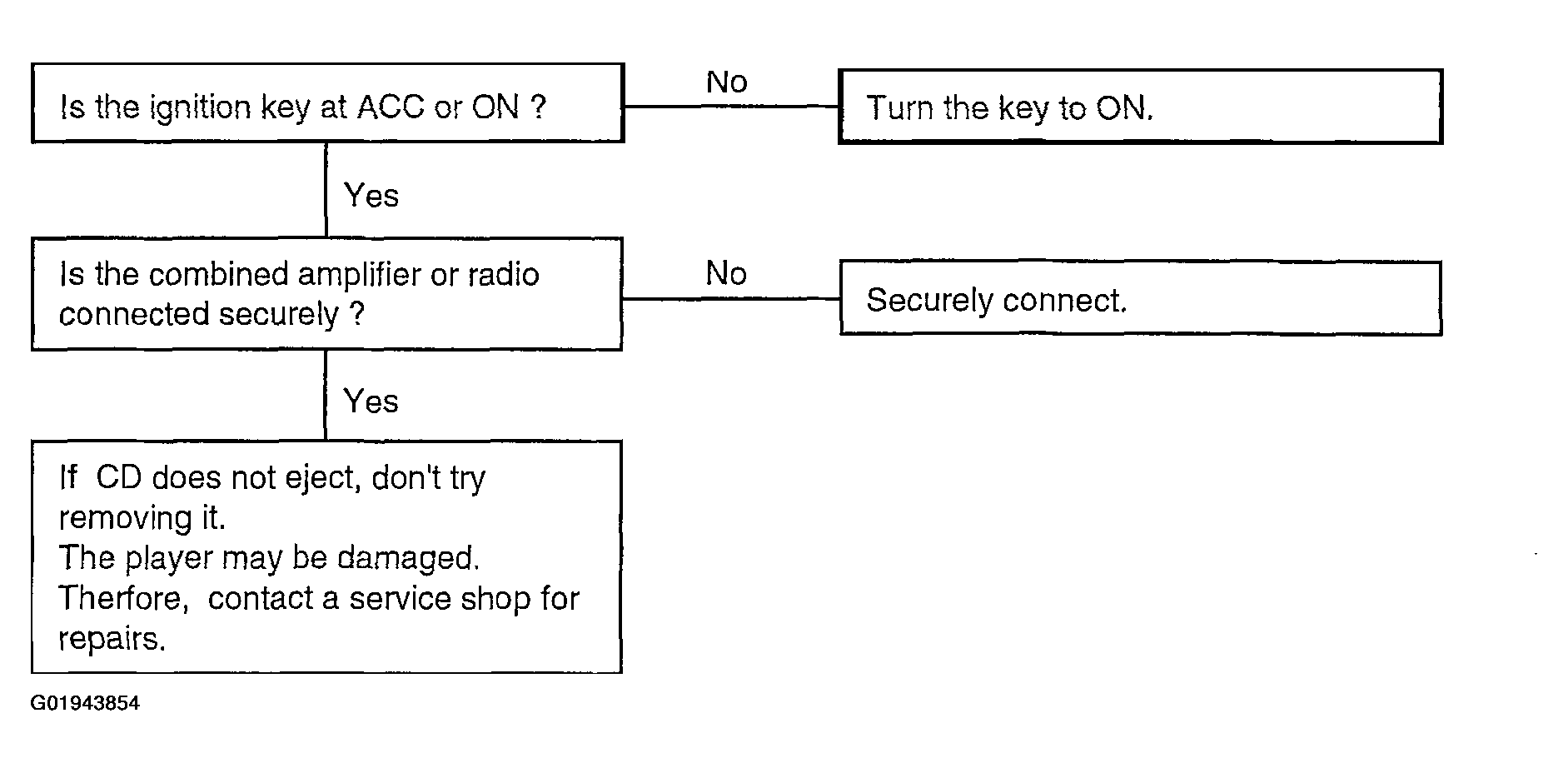

Fig 6: CD Will Not Eject
Courtesy of HYUNDAI MOTOR CO.
NO SOUND FROM ONE SPEAKER

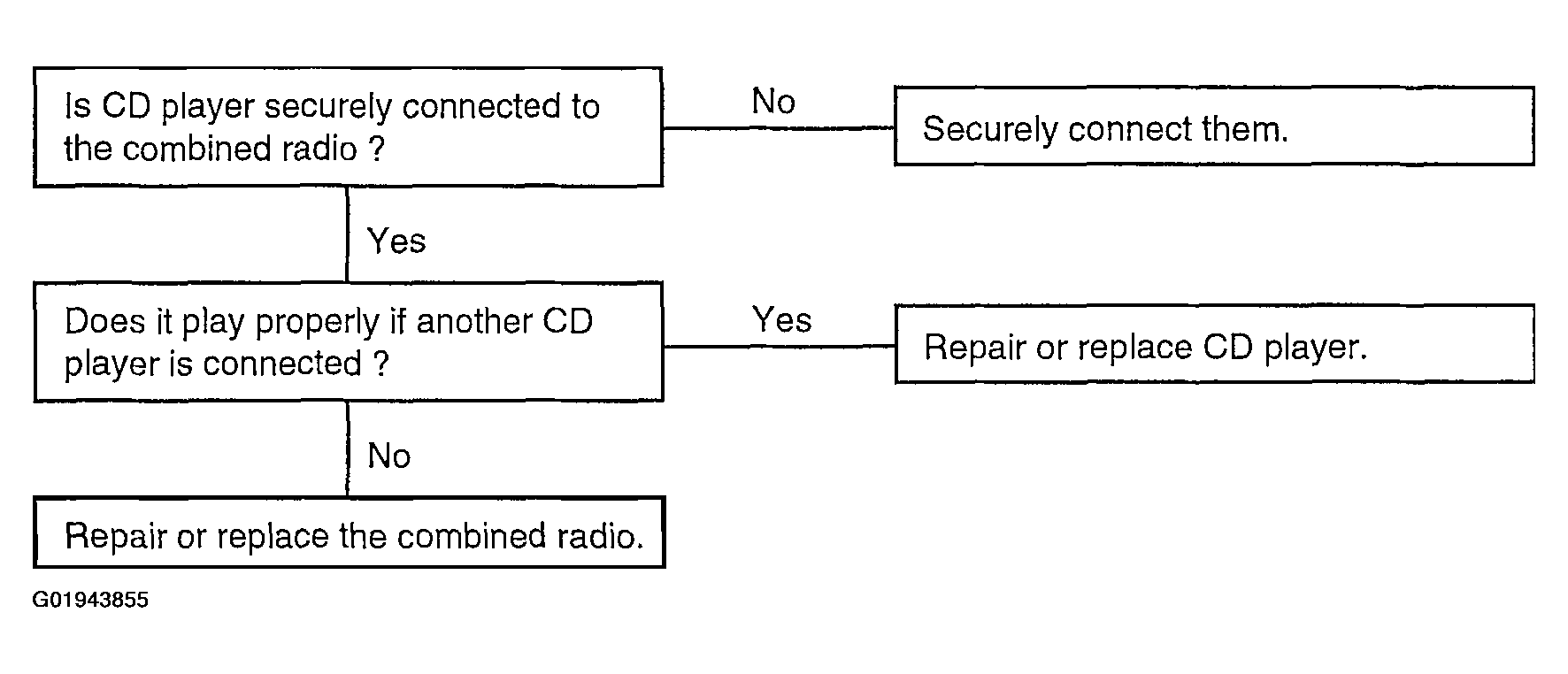

Fig 7: No Sound From One Speaker
Courtesy of HYUNDAI MOTOR CO.
