Audio System
>>
Troubleshooting
>>
Chart 1
Chart 1

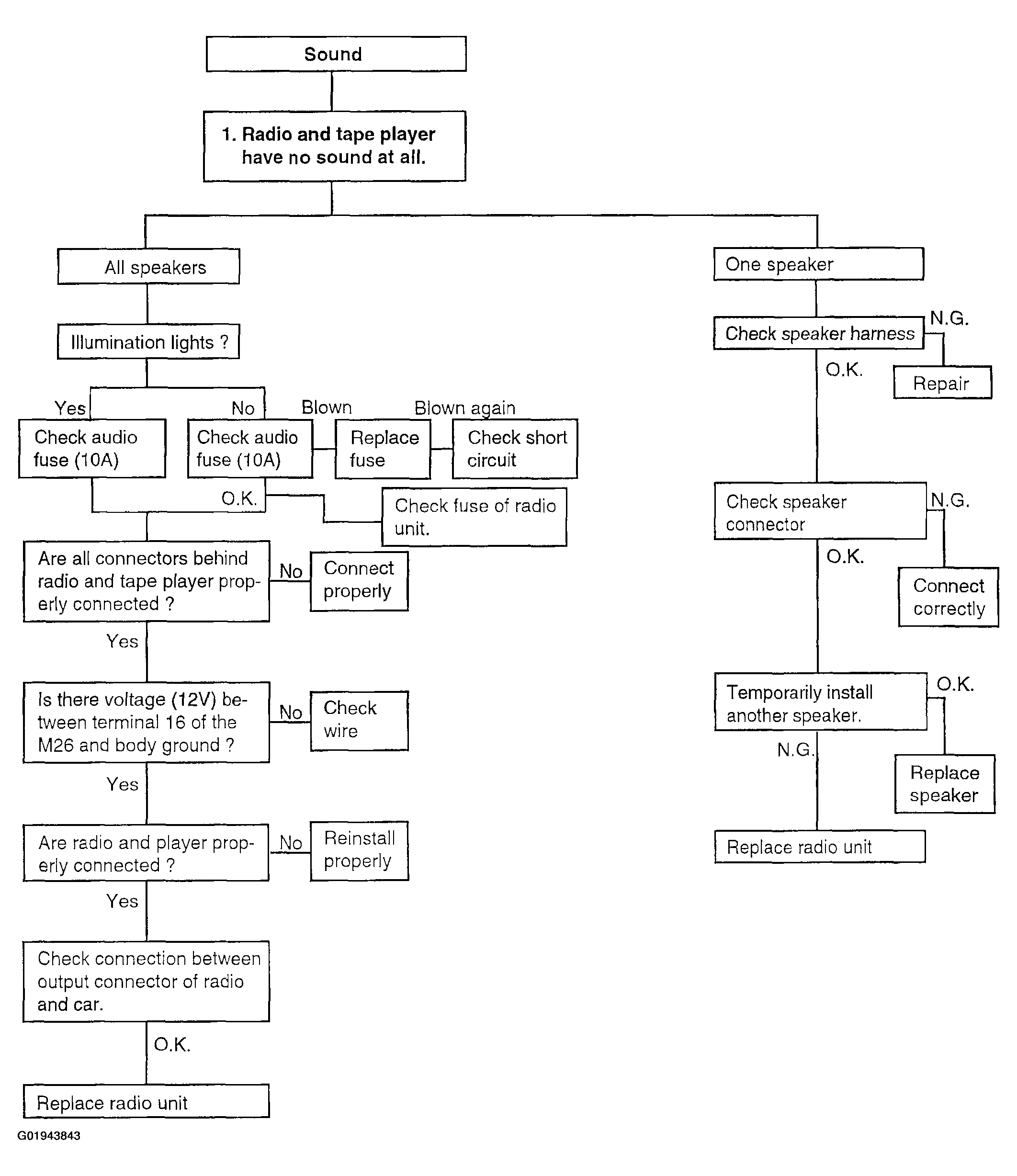

Fig 1: Radio & Tape Player Have No Sound At All
Courtesy of HYUNDAI MOTOR CO.

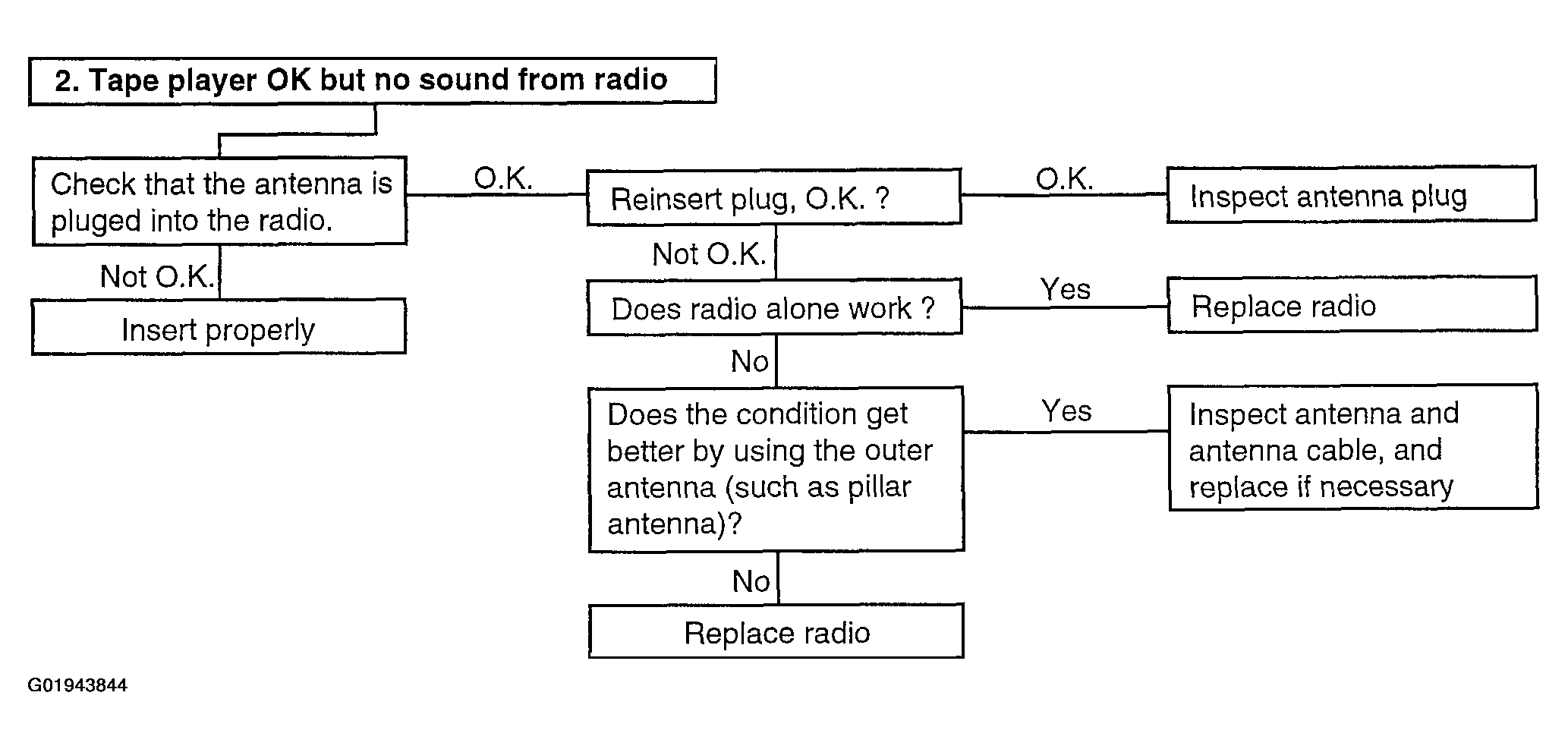

Fig 2: Tape Player OK But No Sound From Radio
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
