Camshaft Position Sensor

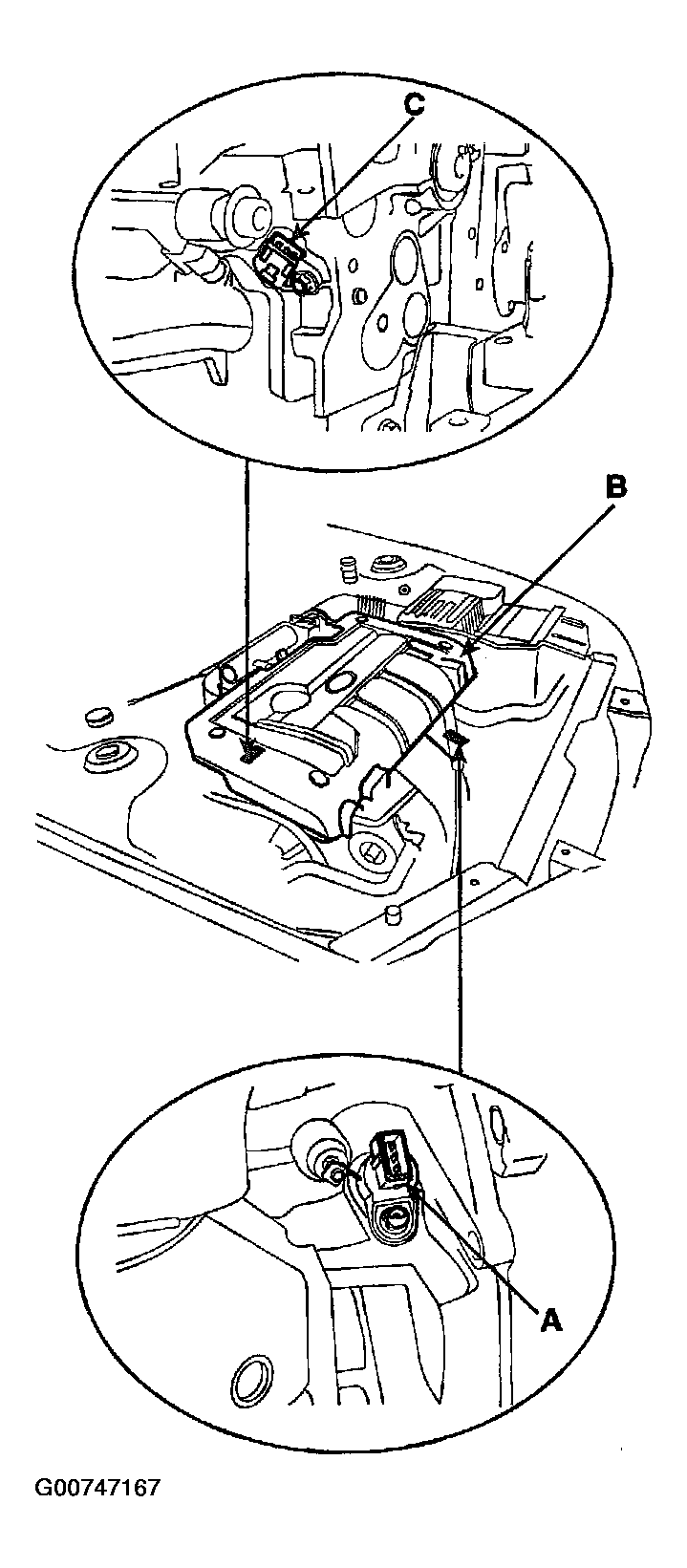

  1. Remove the engine cover (B). See Figure.
  2. Disconnect the camshaft position sensor connector.
  3. Remove the camshaft position sensor (C). See Figure.
