Symptom Chart

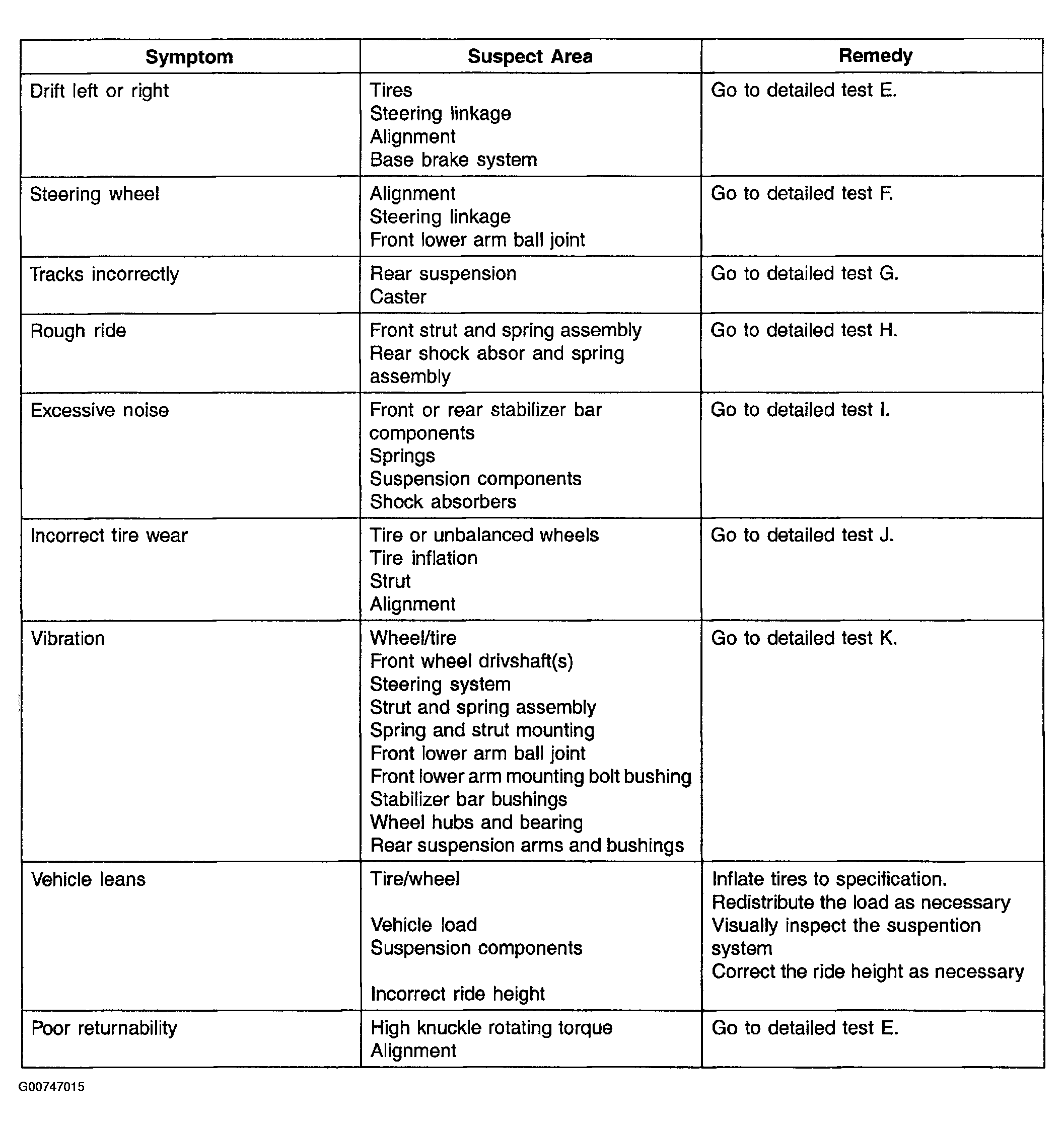

Fig 1: Trouble Shooting Suspension System (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

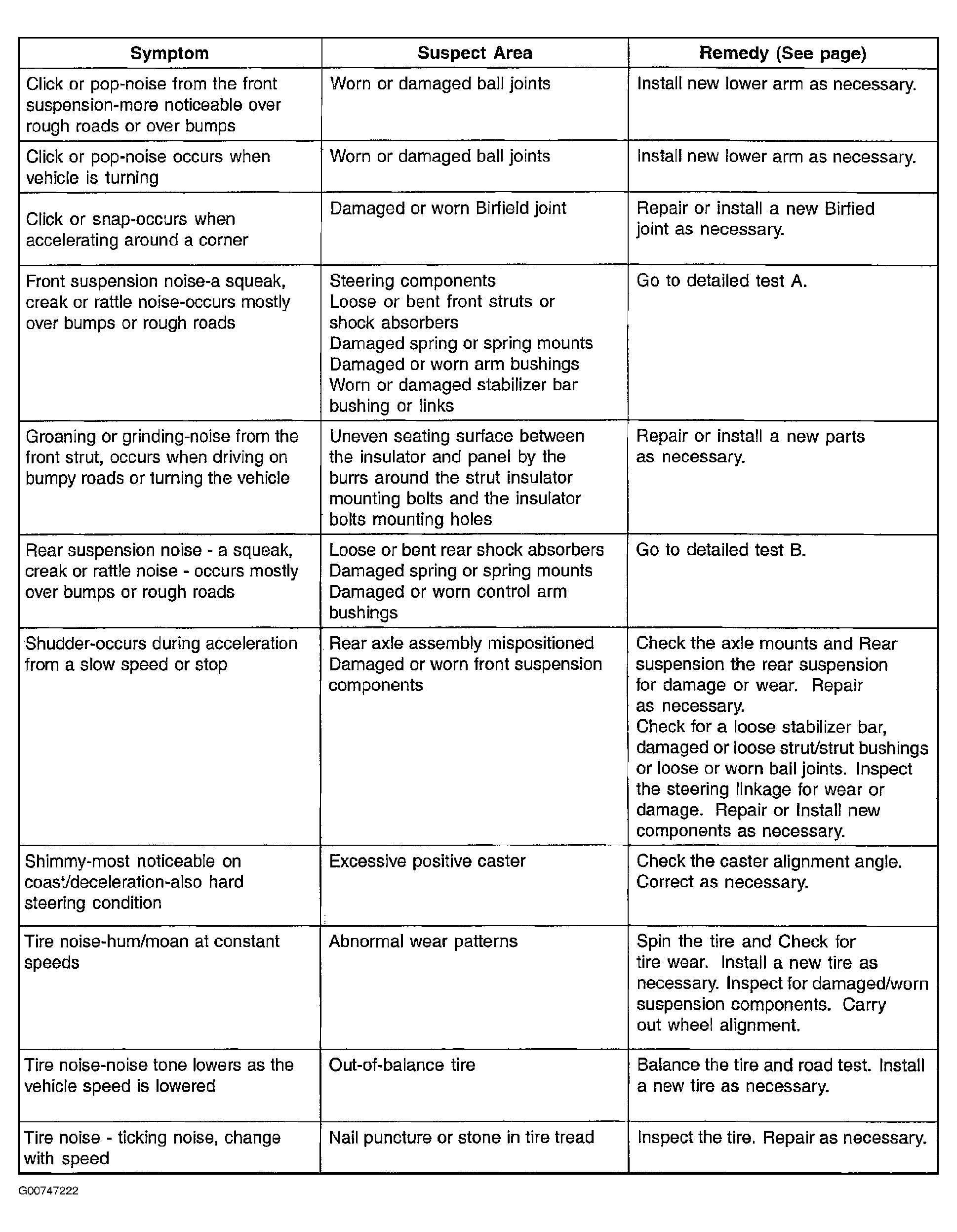

Fig 2: Trouble Shooting Suspension System (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.

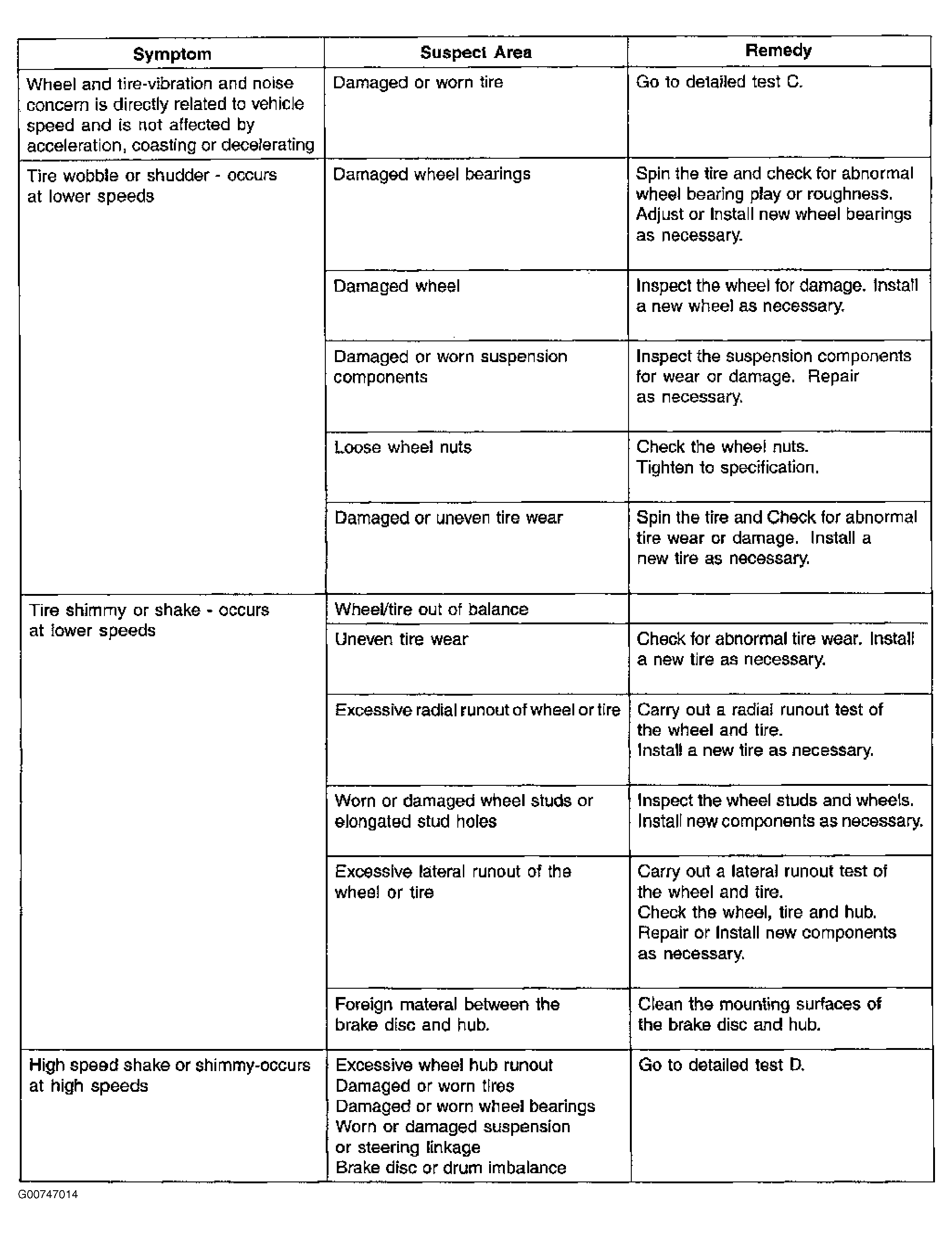

Fig 3: Trouble Shooting Suspension System (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.

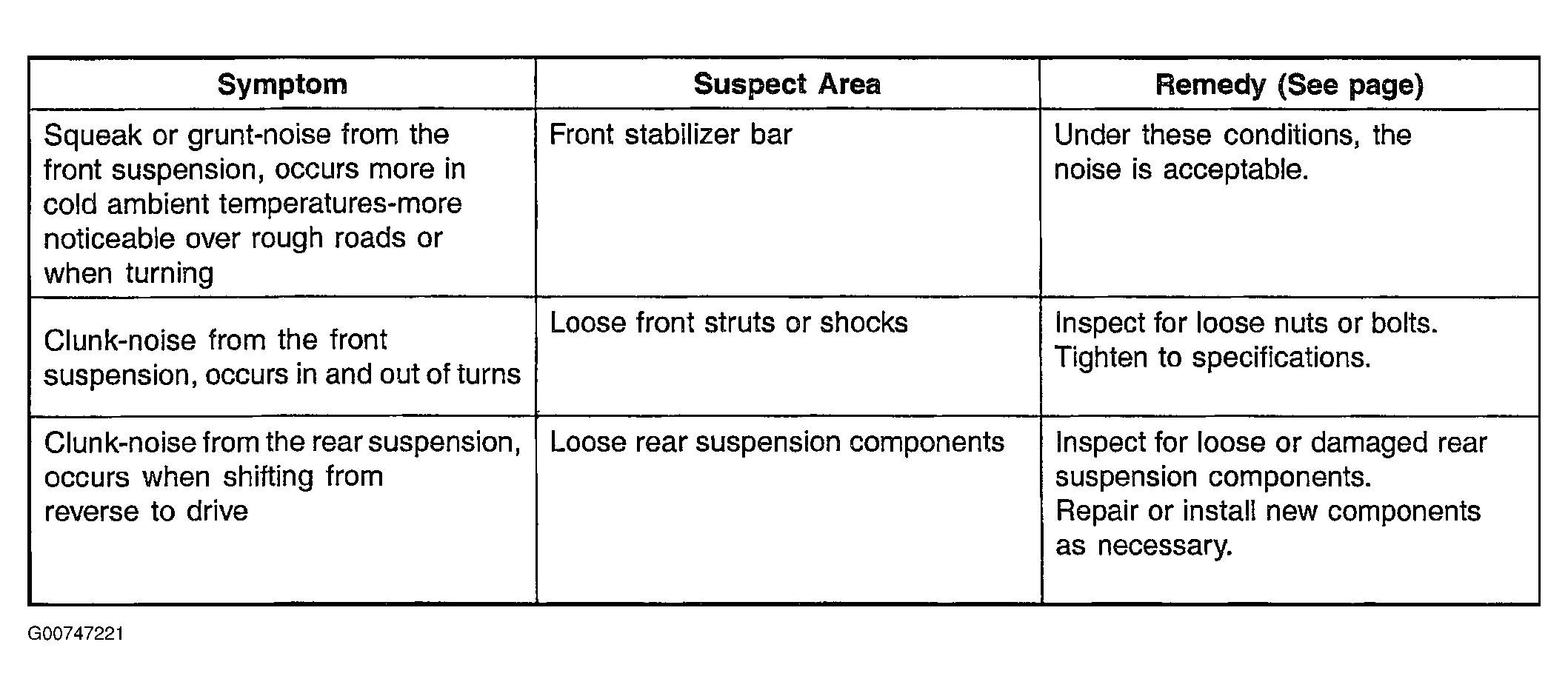

Fig 4: Trouble Shooting Suspension System (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
