Home >> Hyundai >> 2004 >> Elantra GLS, Standard >> Repair and Diagnosis >> Suspension >> Front Suspension System >> General >> Specifications >> Notes

Front Suspension System: General: Specifications: Notes

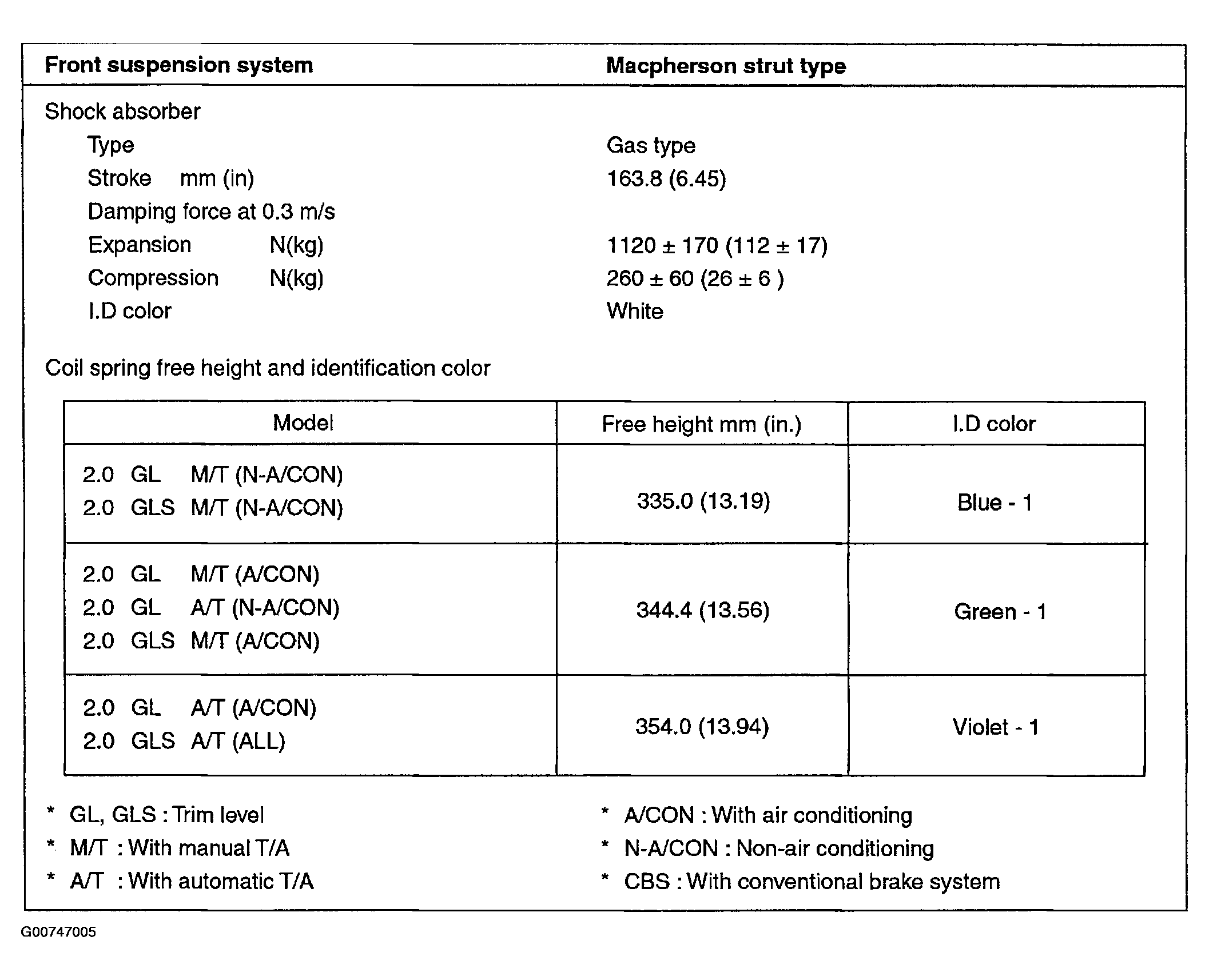

Fig 1: Front Suspension System Specifications

G00747005

Courtesy of HYUNDAI MOTOR CO.
