Transaxle Range Switch Continuity Check

WARNING: This page is about a different variant/trim than selected.

Continuity check

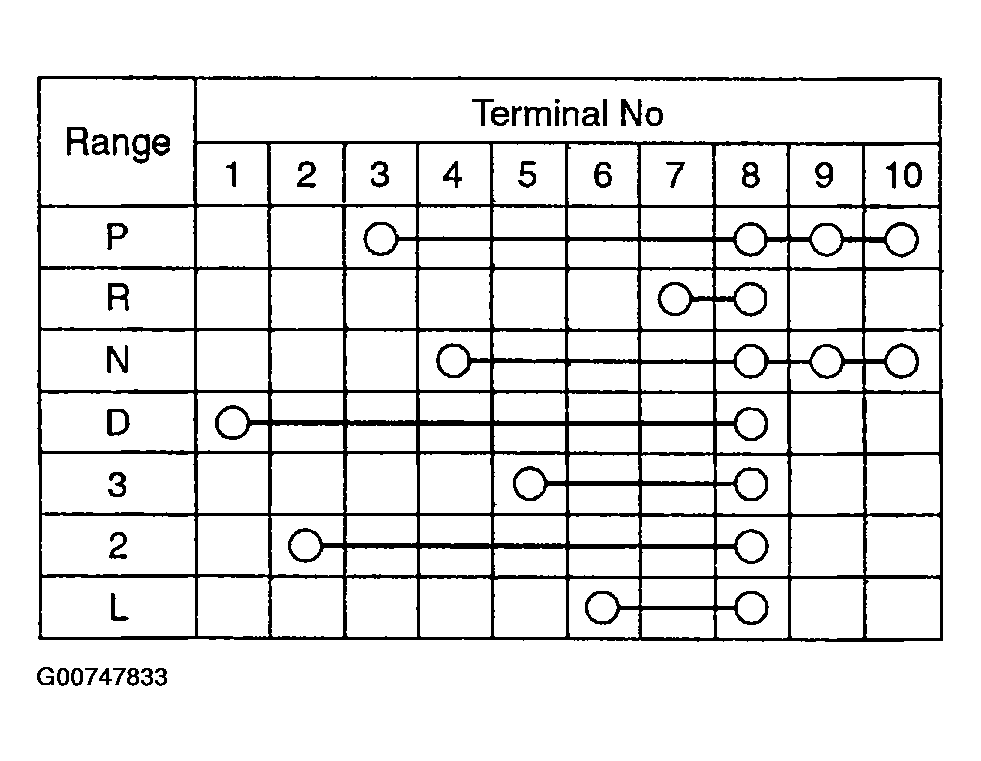

Fig 1: Transaxle Range Switch Continuity Table
G00747833Courtesy of HYUNDAI MOTOR CO.

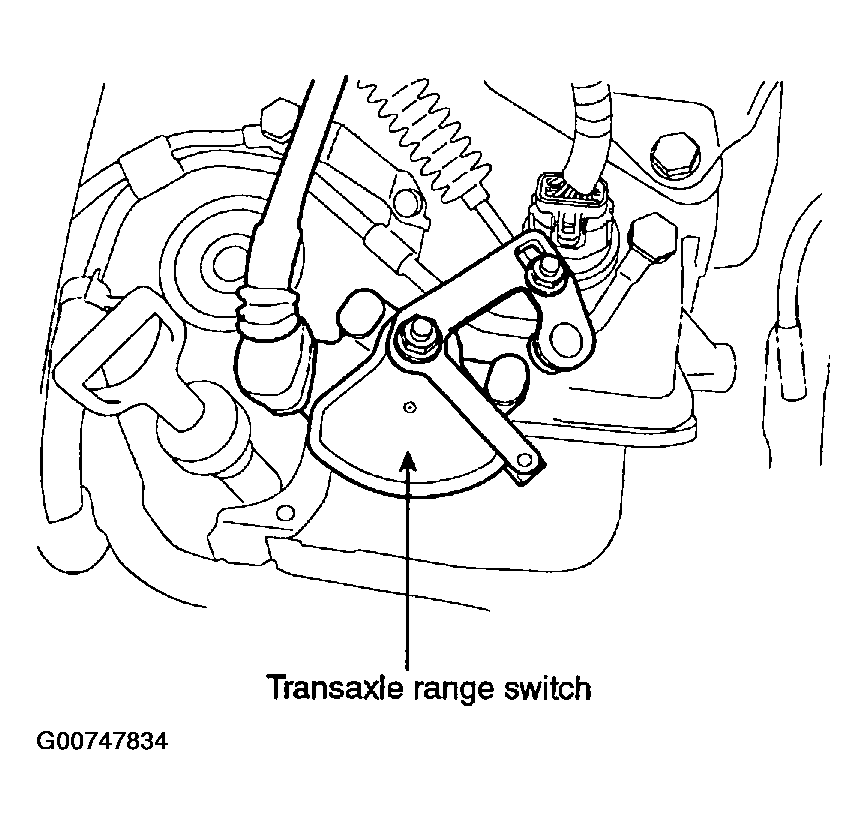

Fig 2: Identifying Transaxle Range Switch
G00747834Courtesy of HYUNDAI MOTOR CO.
Fig 3: Identifying Transaxle Range Switch Positions
G00747835Courtesy of HYUNDAI MOTOR CO.
