Solenoid Valve Check

WARNING: This page is about a different variant/trim than selected.
  1. Remove the valve body cover.
  2. Disconnect the connectors of each solenoid valve.

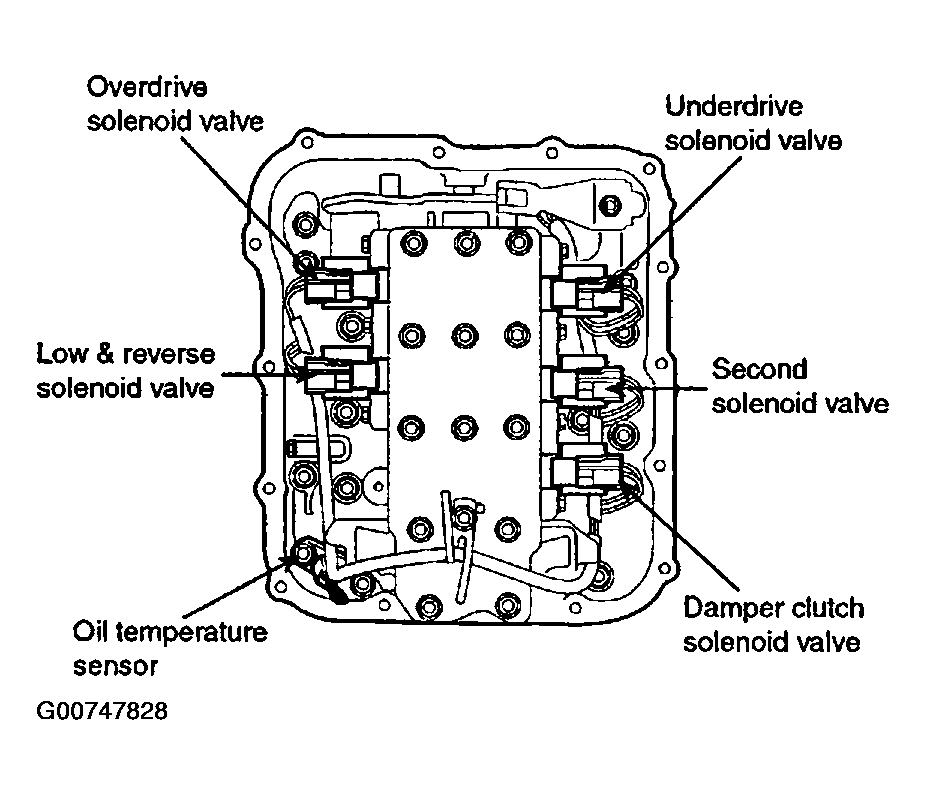

    Fig 1: Locating Solenoid Valves
    G00747828Courtesy of HYUNDAI MOTOR CO.
  3. Measure the resistance between terminals 1 and 2 of each solenoid valve.

    STANDARD VALUE :

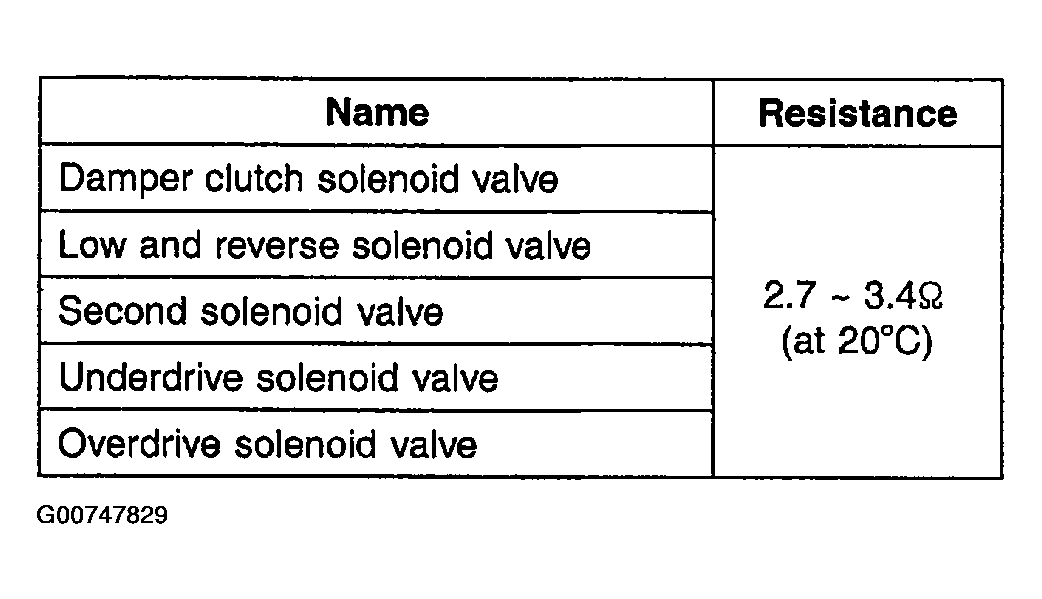

    Fig 2: Solenoid Valve Specifications
    G00747829Courtesy of HYUNDAI MOTOR CO.
    Fig 3: Measuring Solenoid Valve Resistance
    G00747830Courtesy of HYUNDAI MOTOR CO.
  4. If the resistance is outside the standard value, replace the solenoid valve.
    NOTE: Resistance of the solenoid valve connector.

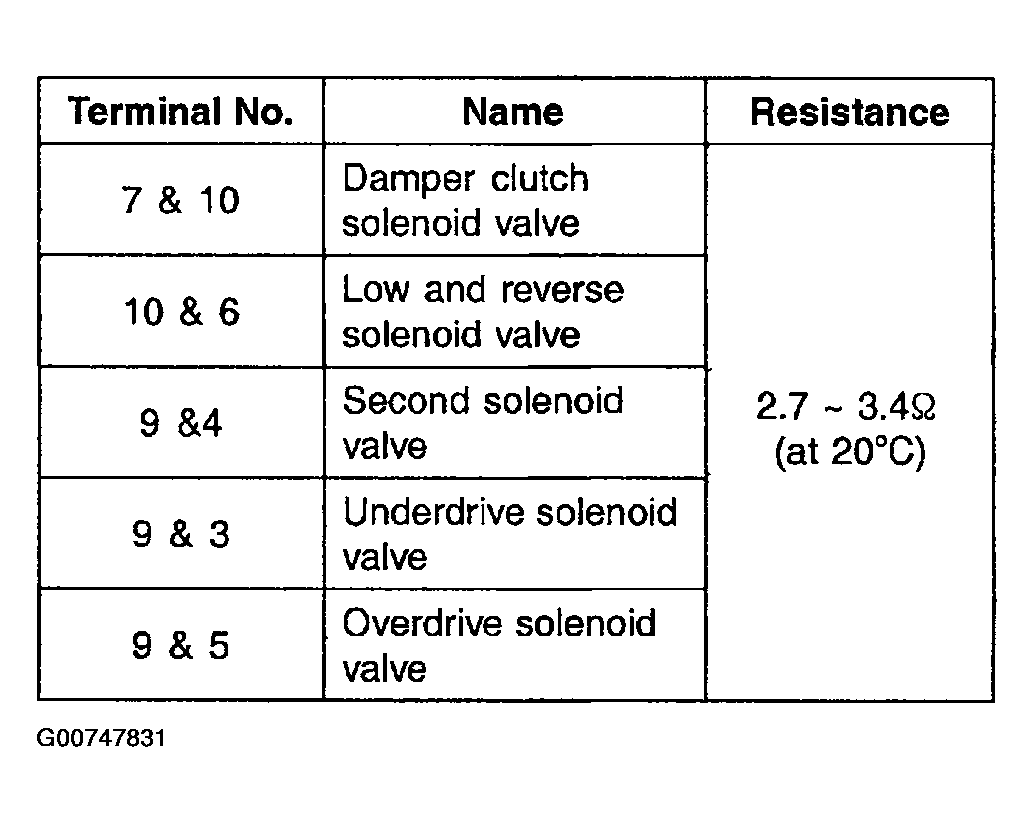

    Fig 4: Identifying Solenoid Valve Terminals
    G00747831Courtesy of HYUNDAI MOTOR CO.

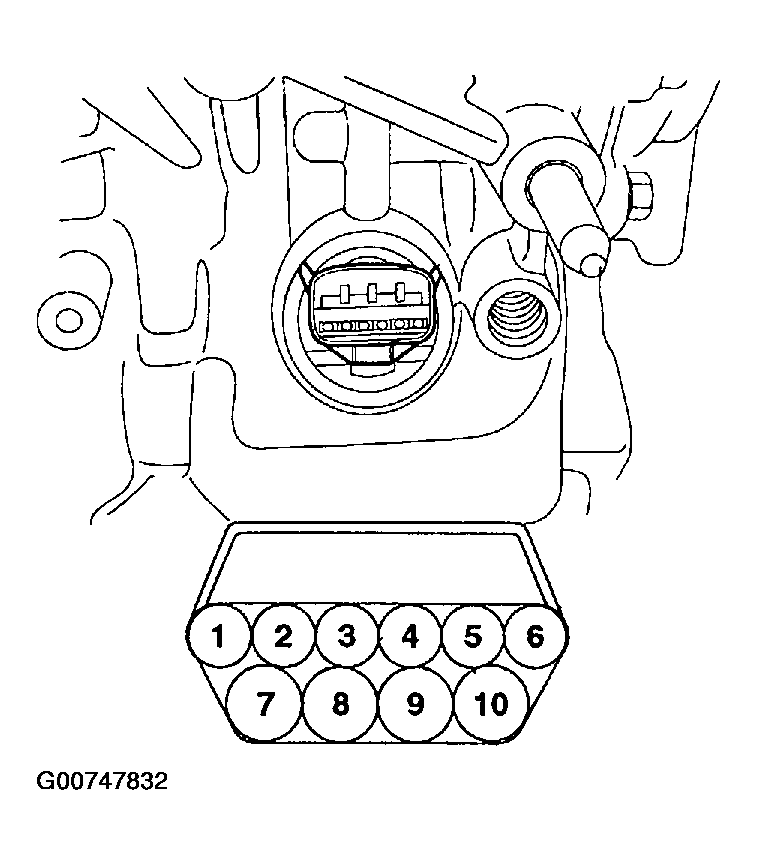

    Fig 5: Identifying Solenoid Valve Connector Terminal Locations
    G00747832Courtesy of HYUNDAI MOTOR CO.
