Transaxle Range Switch Replacement: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the battery terminal.

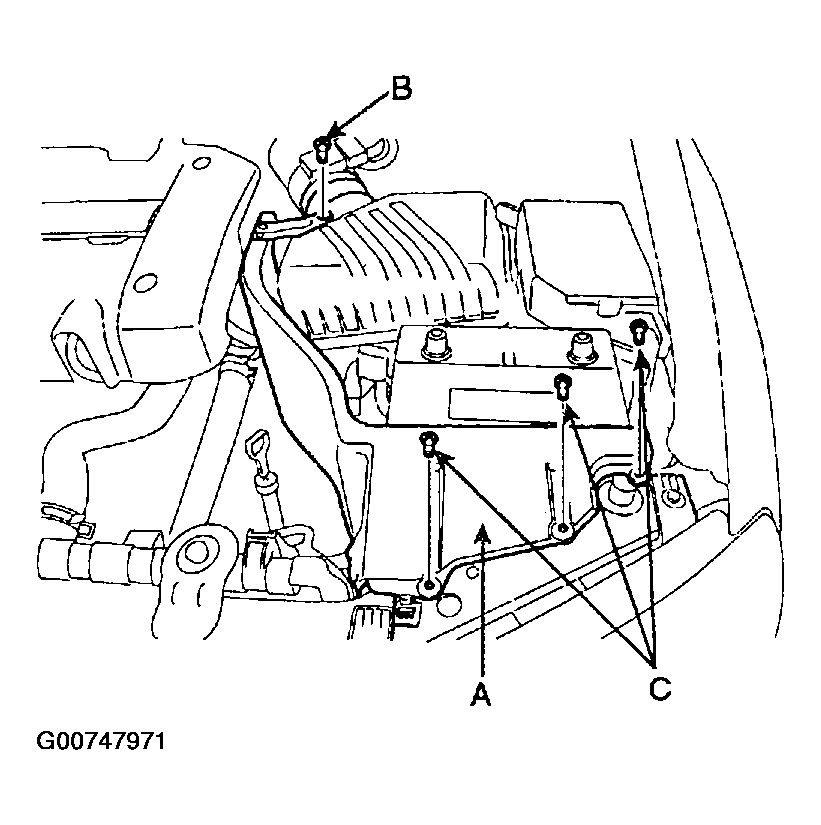

Remove the heat shield (A) (Bolt: 1EA (B), Retainer: 3EA (C)).

Fig 1: Removing Battery Heat Shield
Courtesy of HYUNDAI MOTOR CO.

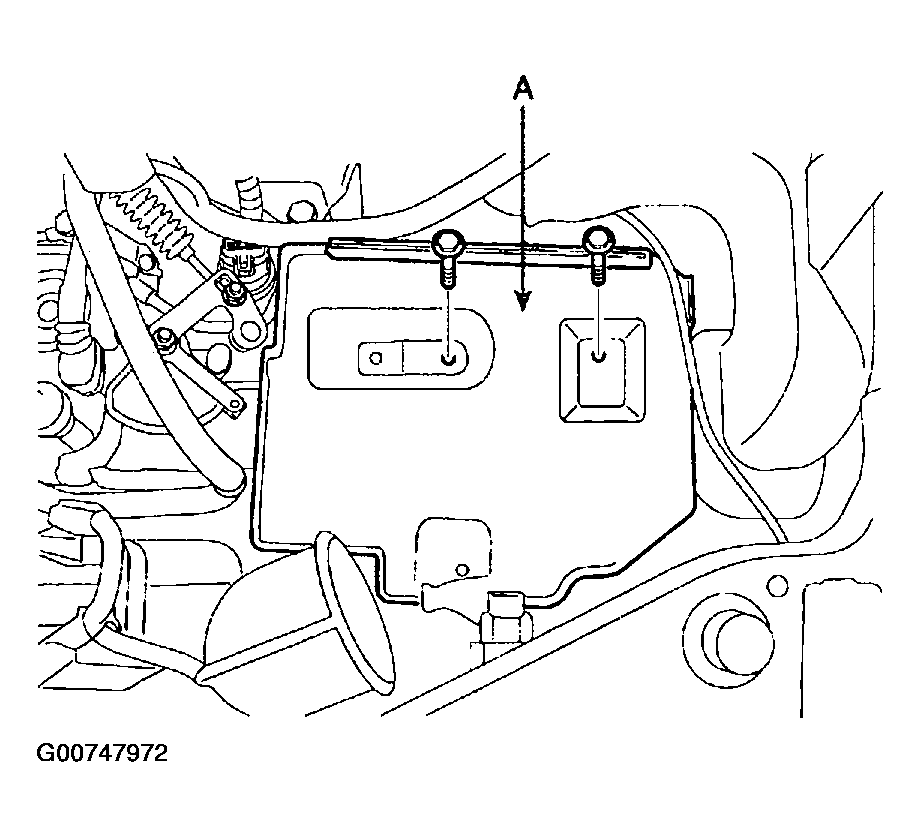

Remove the battery and battery tray (A).

Fig 2: Removing Battery Tray
Courtesy of HYUNDAI MOTOR CO.

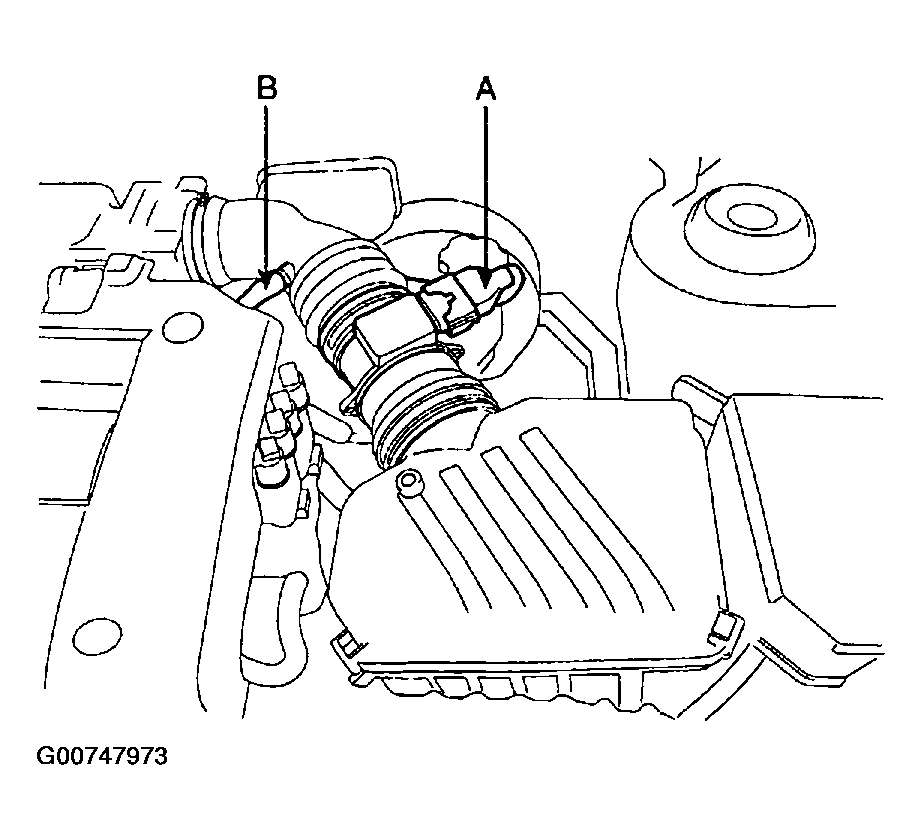

Disconnect the air flow sensor connector (A) and breather hose (B).

Fig 3: Disconnecting Air Flow Sensor & Breather Hose
Courtesy of HYUNDAI MOTOR CO.
Removal of air cleaner and air intake hose.

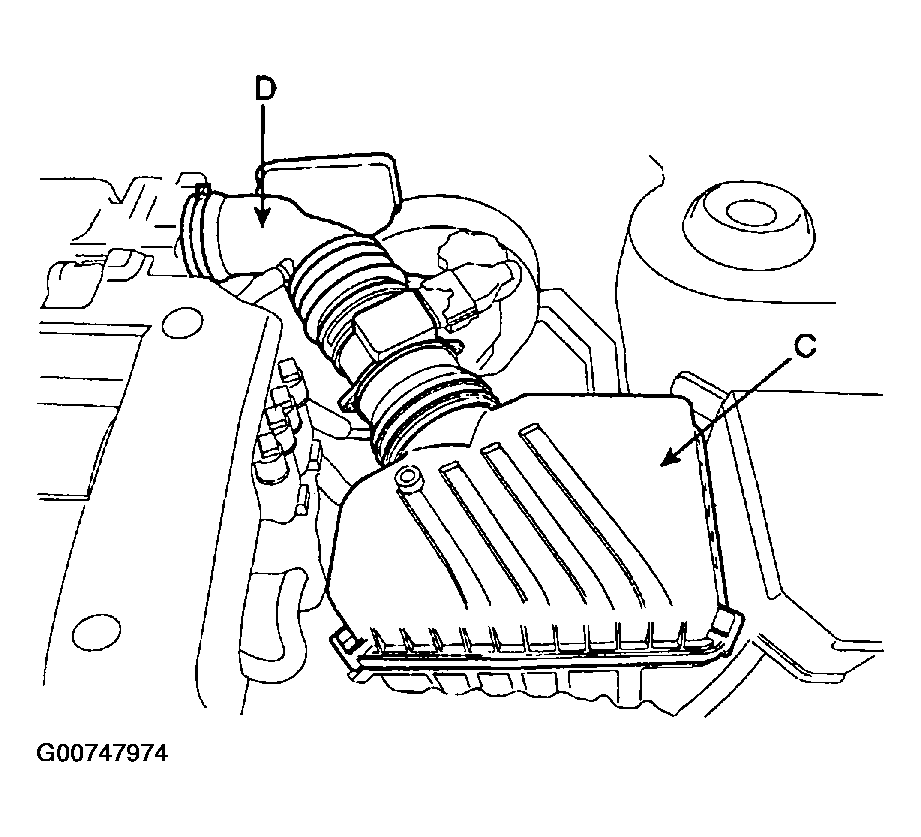

1. Air cleaner upper cover (C) and air intake hose (D).

  Fig 4: Removing Air Cleaner Upper Cover & Intake Hose
  Courtesy of HYUNDAI MOTOR CO.

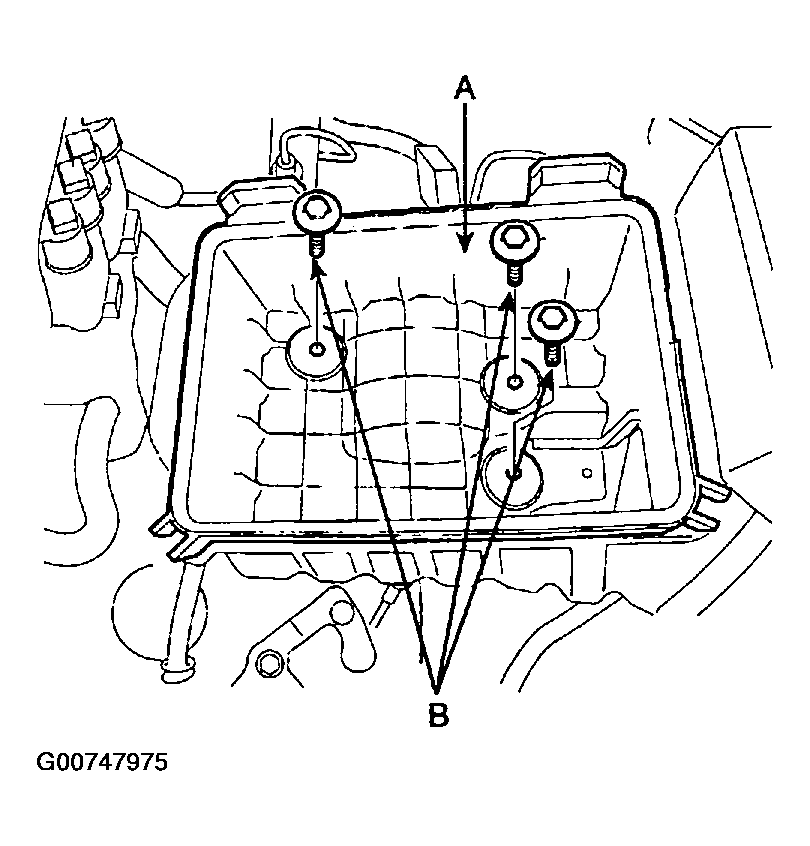

2. Air cleaner lower (A) (Bolt: 3EA (B)).

  Fig 5: Removing Air Cleaner Housing
  Courtesy of HYUNDAI MOTOR CO.

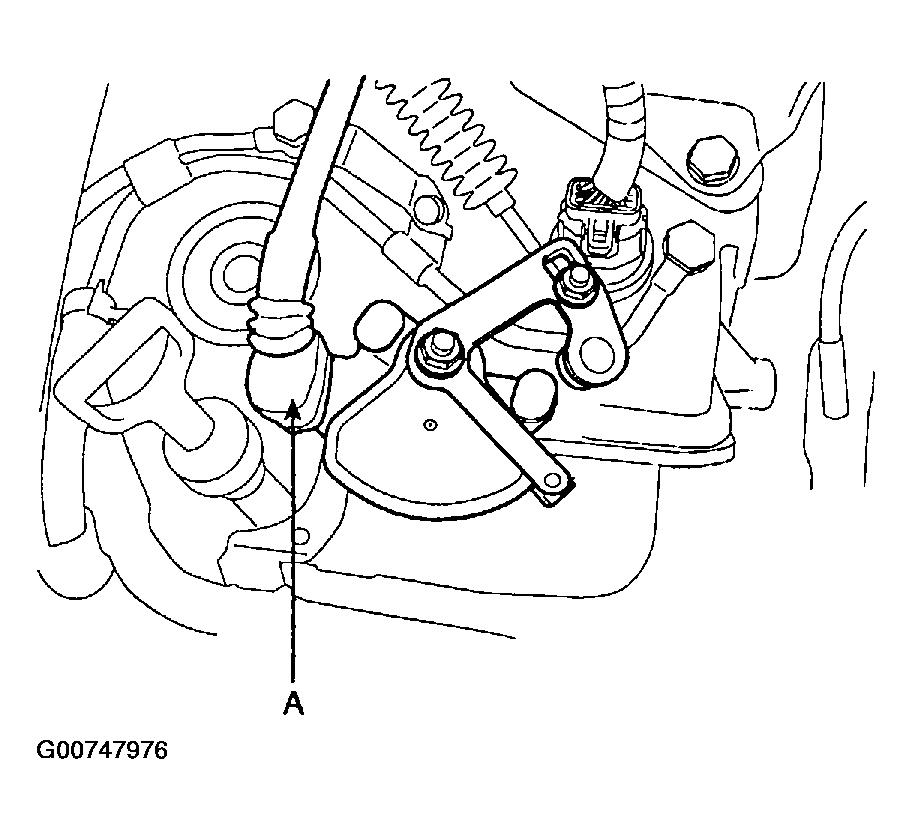

Remove the transaxle range switch connector (A).

Fig 6: Removing Transaxle Range Switch Connector
Courtesy of HYUNDAI MOTOR CO.

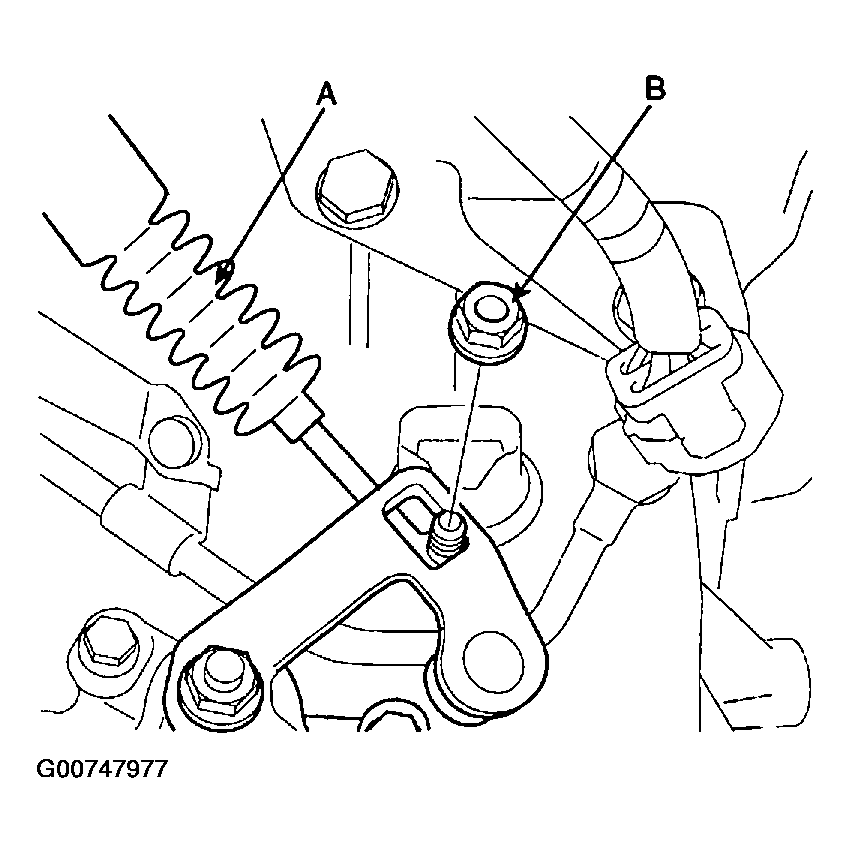

Remove the control cable to transaxle range switch (A) mounting nut (B).

Fig 7: Removing Control Cable From Range Switch
Courtesy of HYUNDAI MOTOR CO.

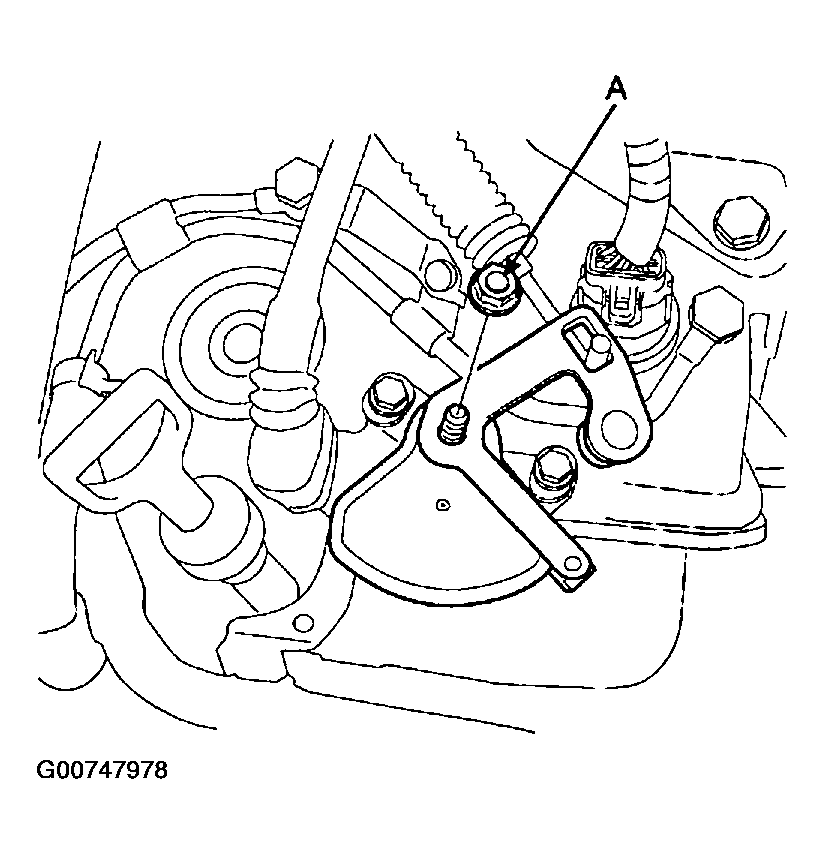

Remove the transaxle range switch manual lever mounting nut (A).

Fig 8: Removing Transaxle Range Switch Manual Lever
Courtesy of HYUNDAI MOTOR CO.

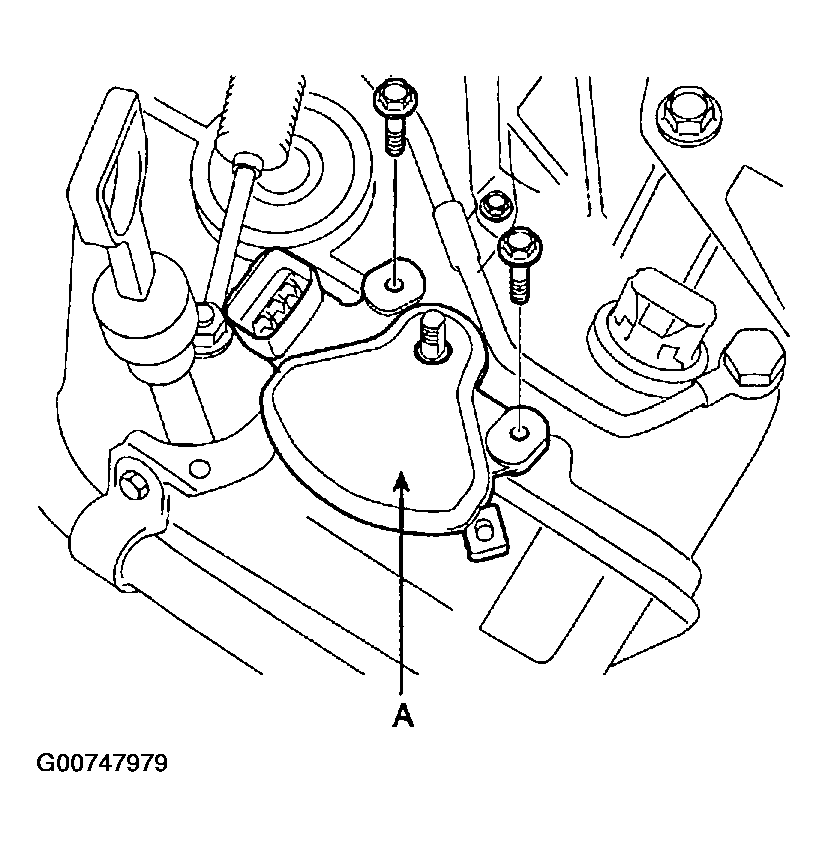

Remove the transaxle range switch (A).

Fig 9: Removing Transaxle Range Switch
Courtesy of HYUNDAI MOTOR CO.
