Input Shaft Speed Sensor Replacement: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Removal of the battery and air cleaner. See TRANSAXLE RANGE SWITCH REPLACEMENT  .
  2. Remove the transaxle range switch connector.
  3. Remove the control cable to transaxle range switch mounting nut.
  4. Remove the clip (A) of the control cable (B).
    Fig 1: Removing Clip From Control Cable
    G00747980Courtesy of HYUNDAI MOTOR CO.
  5. Remove the control cable mounting bracket.
  6. Remove the input shaft speed sensor (A).
    1. Disconnect the input shaft speed sensor connector.
    2. Remove the bolt (B).

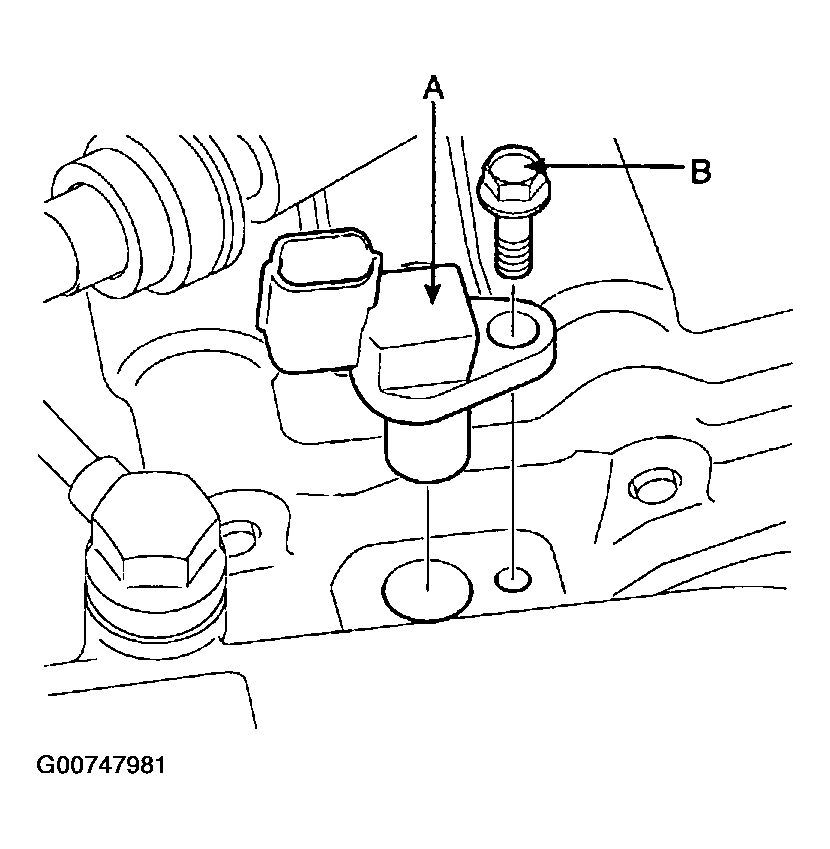

      Fig 2: Removing Input Shaft Speed Sensor
      G00747981Courtesy of HYUNDAI MOTOR CO.
    3. Inspect the input shaft speed sensor bore.
