ATM Control Cable Replacement: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the control cable to transaxle range switch mounting nut. See TRANSAXLE RANGE SWITCH & CONTROL CABLE ADJUSTMENT  .
  2. Remove the clip of the control cable.
  3. Remove the console (Screw : 6EA)
  4. Remove the control cable pin.
  5. Remove the clip of the control cable by pressing it with the driver.
  6. Remove the control cable mounting nuts (A).

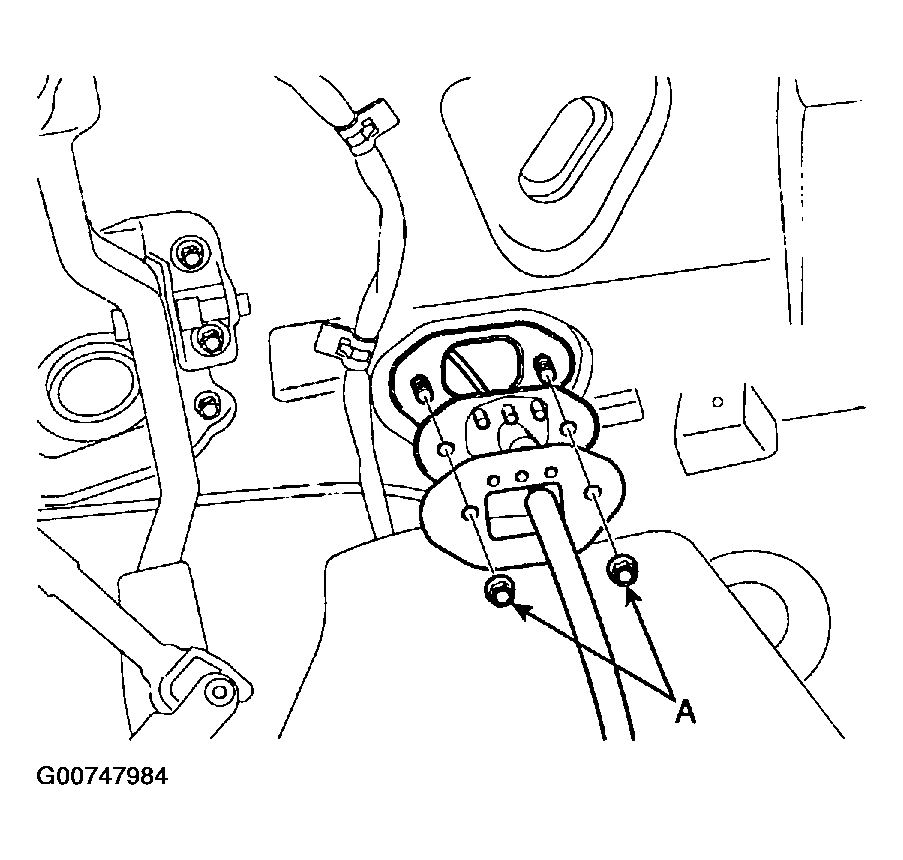

    Fig 1: Removing Control Cable Mounting Nuts
    G00747984Courtesy of HYUNDAI MOTOR CO.
  7. Remove the mounting bolts of the cable of the lower dashboard side to remove the cable.
