Automatic Transaxle Shift Control: Components

WARNING: This page is about a different variant/trim than selected.

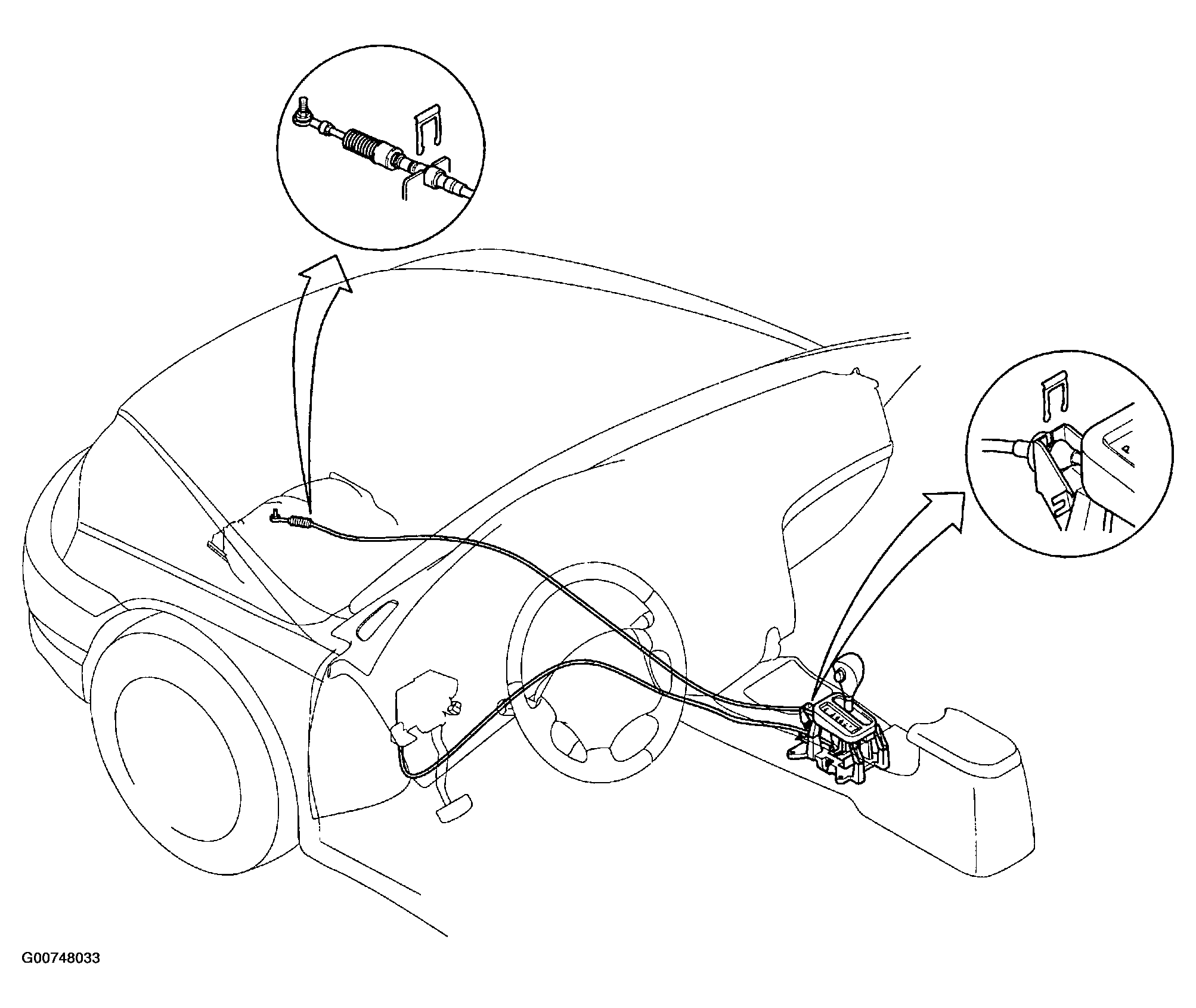

Fig 1: Automatic Transaxle Shift Control Components (1 Of 2)
G00748033Courtesy of HYUNDAI MOTOR CO.

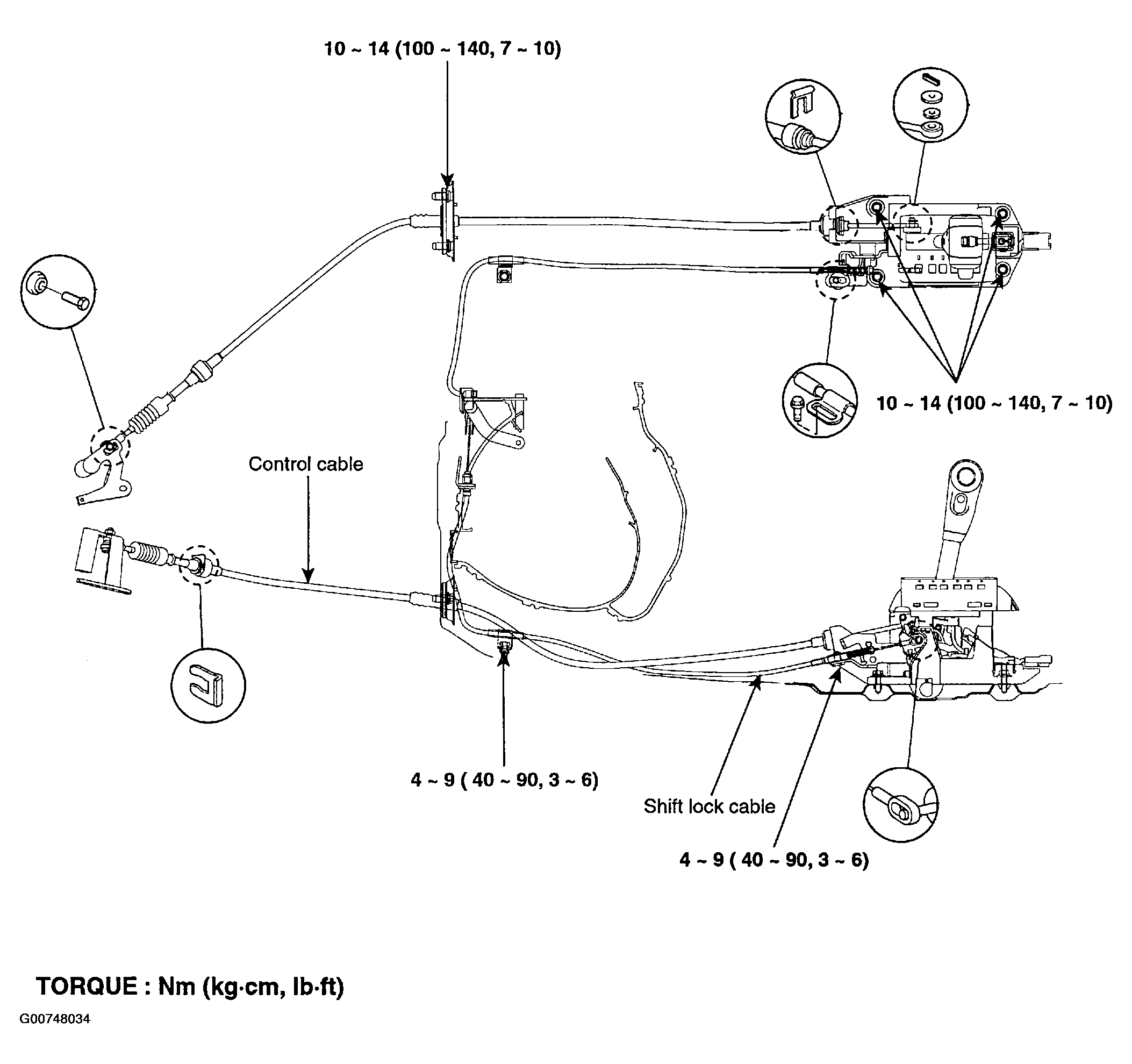

Fig 2: Automatic Transaxle Shift Control Components (2 Of 2)
G00748034Courtesy of HYUNDAI MOTOR CO.
