Schematic Drawing

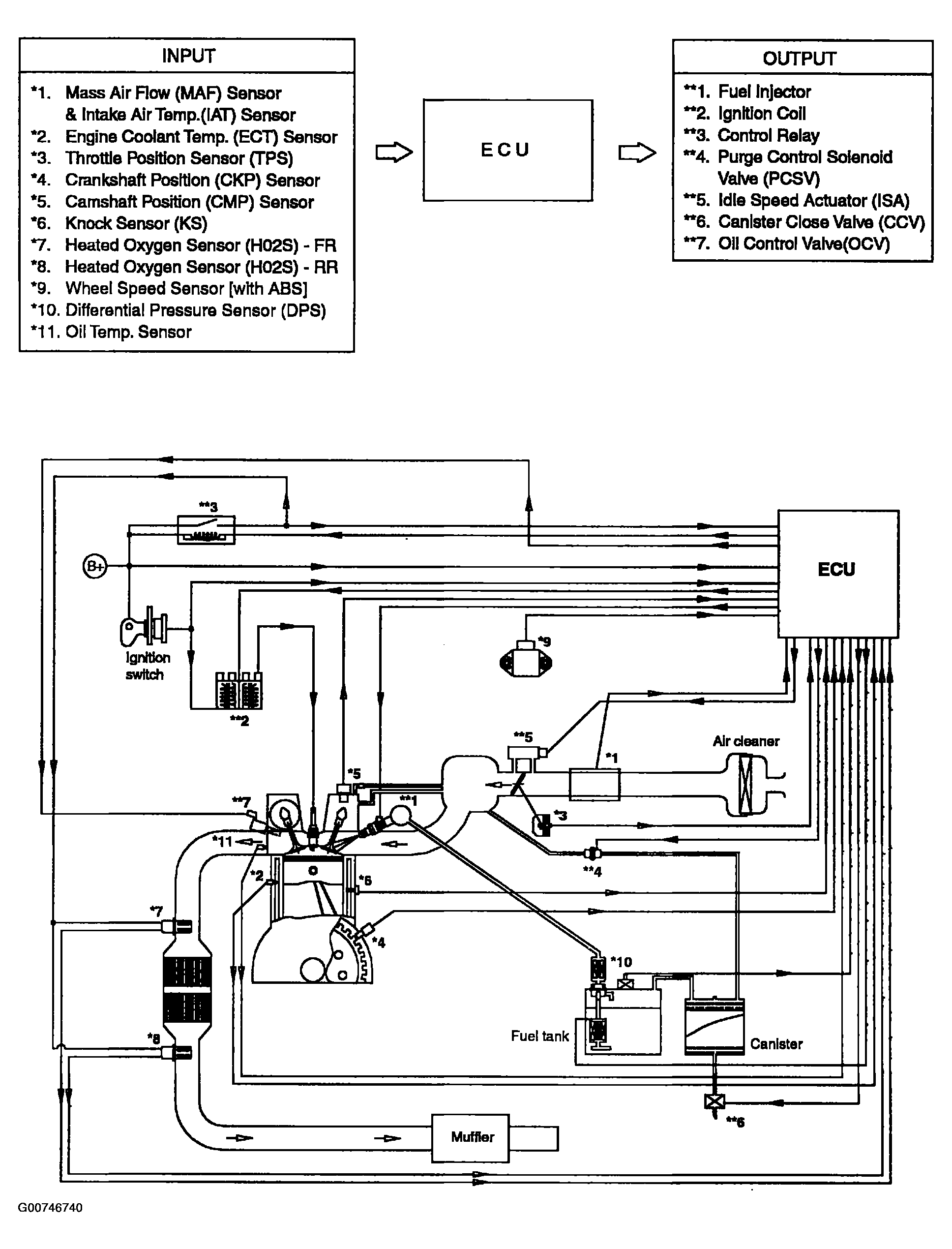

Fig 1: Emission Control System Schematic

G00746740

Courtesy of HYUNDAI MOTOR CO.
