DTC P1602: Serial Communication Problem With TCM (Time Out)
>>
DTC Detecting Condition
DTC P1602: Serial Communication Problem With TCM (Time Out): DTC Detecting Condition

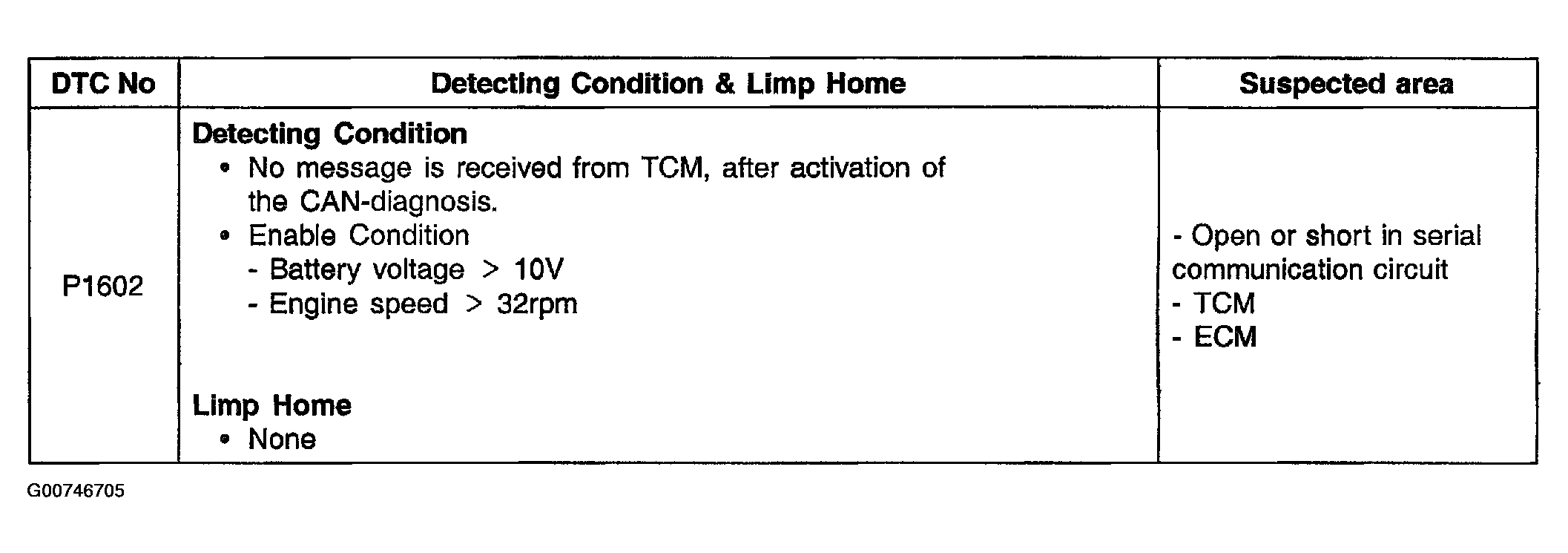

Fig 1: DTC P1602: Detecting Conditions & Probable Causes
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
