DTC P0197: Engine Oil Temperature Sensor Circuit Low Input: DTC Detecting Condition

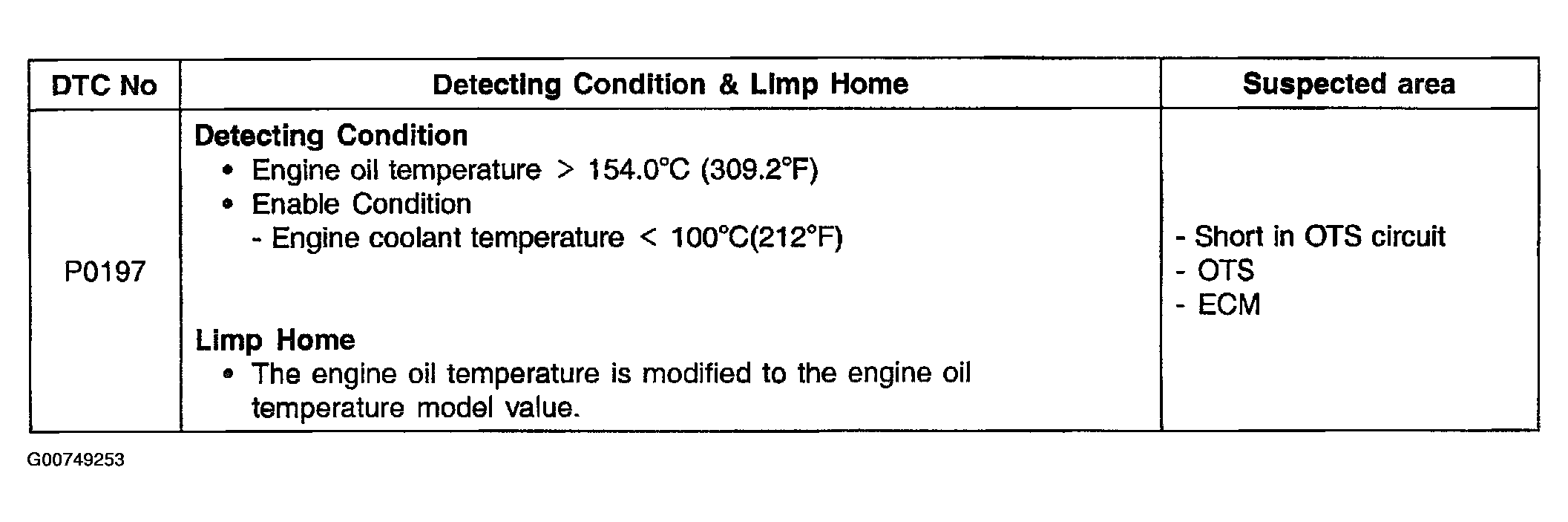

Fig 1: DTC P0197: Detecting Conditions & Probable Causes

G00749253

Courtesy of HYUNDAI MOTOR CO.
