DTC P0137: O2 Sensor Circuit Low Input (Bank 1, Sensor 2): DTC Detecting Condition

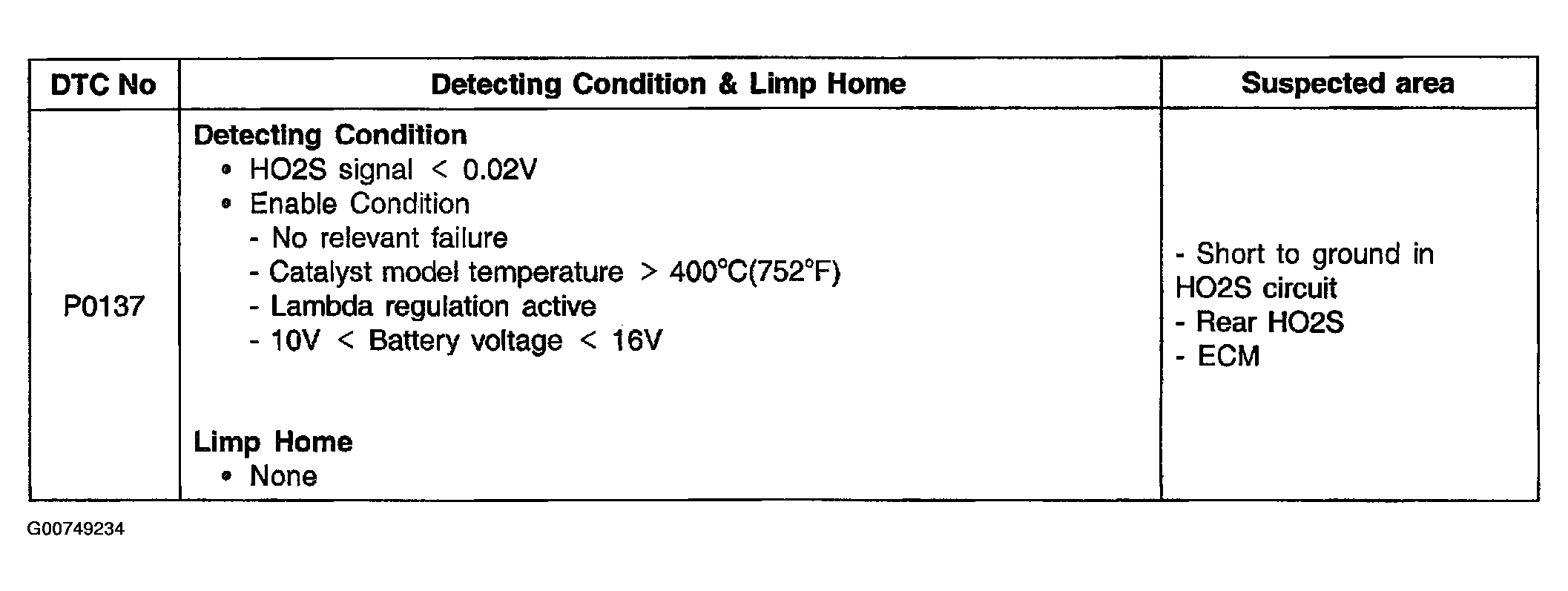

Fig 1: DTC P0137: Detecting Conditions & Probable Causes

G00749234

Courtesy of HYUNDAI MOTOR CO.
