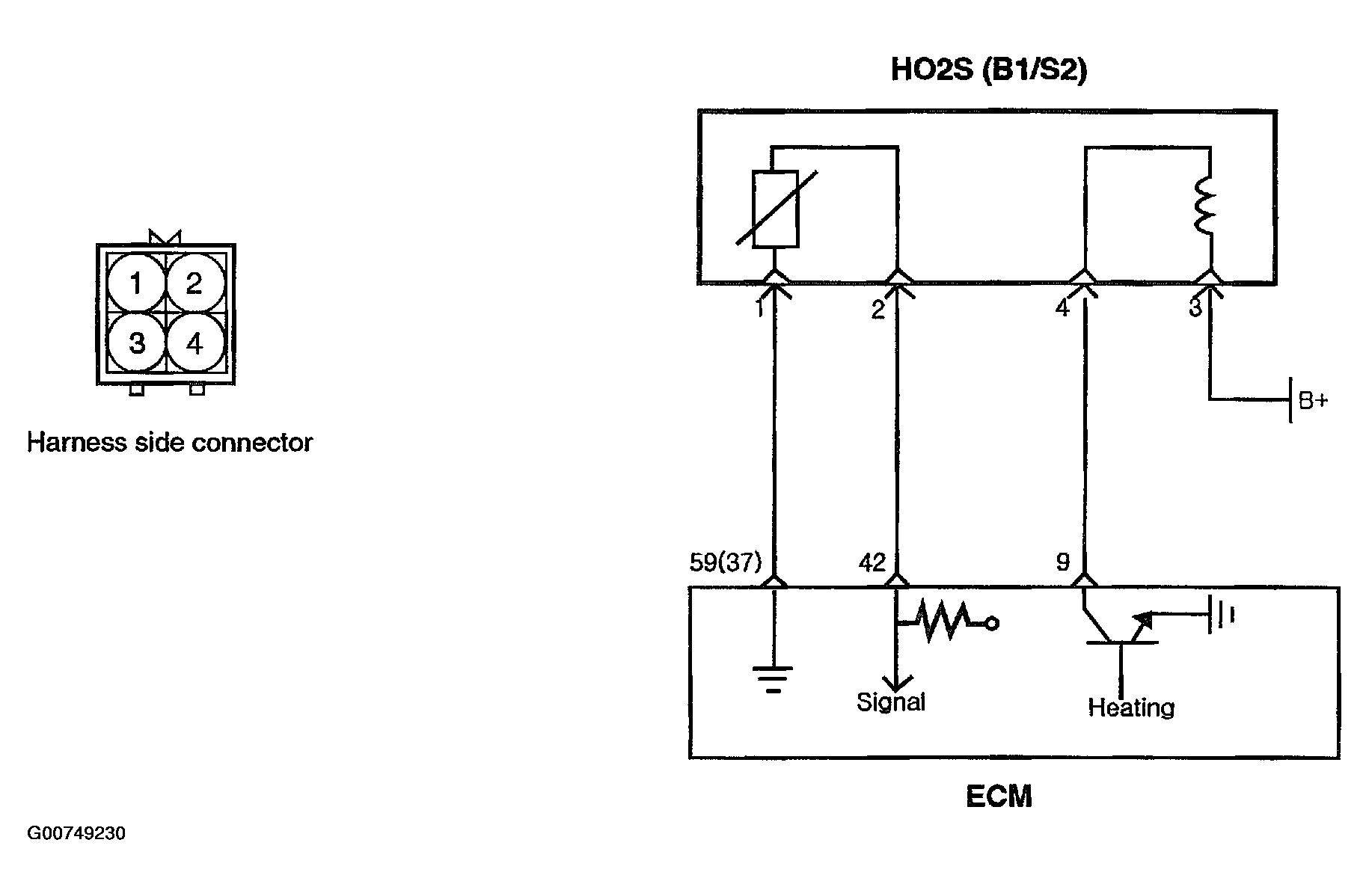

Home >> Hyundai >> 2004 >> Elantra GLS, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System >> DTC Trouble Shooting Procedures >> DTC P0136: O2 Sensor Circuit Open Check (Bank 1, Sensor 2) >> Schematic Diagram
