DTC P0133: O2 Sensor Circuit Slow Responsive (Bank 1, Sensor 1): DTC Detecting Condition

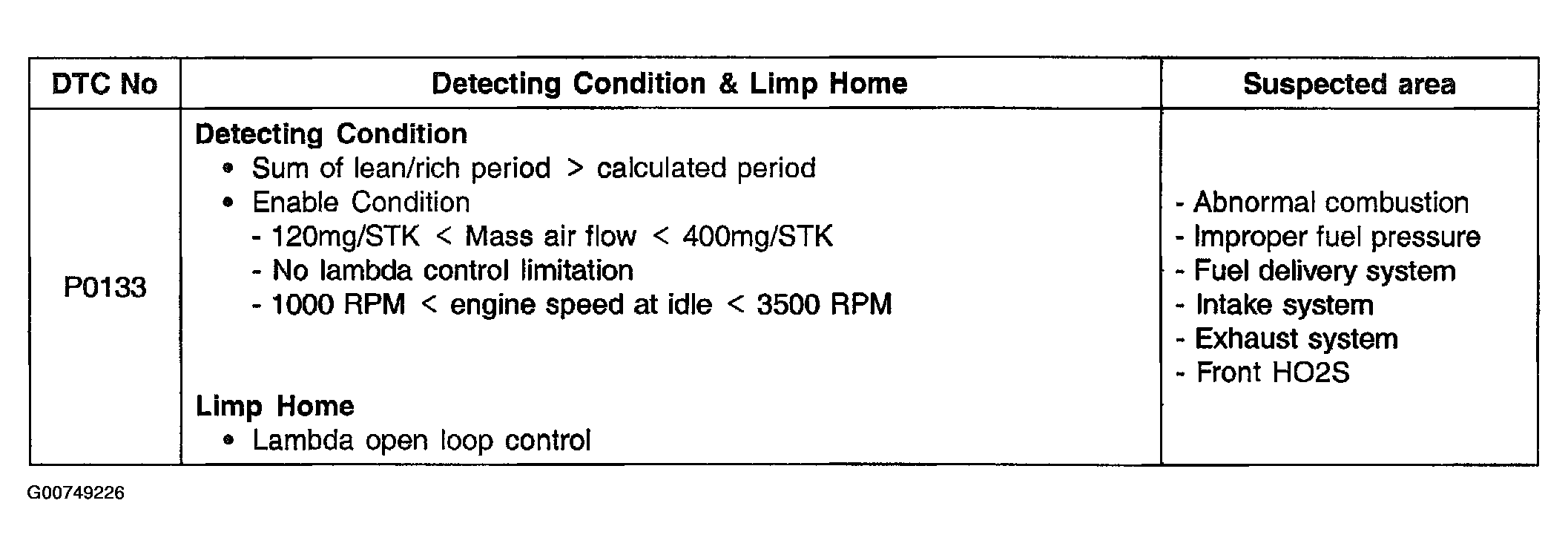

Fig 1: DTC P0133: Detecting Conditions & Probable Causes

G00749226

Courtesy of HYUNDAI MOTOR CO.
