Home >> Hyundai >> 2004 >> Elantra GLS, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System >> DTC Trouble Shooting Procedures >> DTC P0123: Throttle Position Sensor Circuit High Input >> DTC Detecting Condition

DTC P0123: Throttle Position Sensor Circuit High Input: DTC Detecting Condition

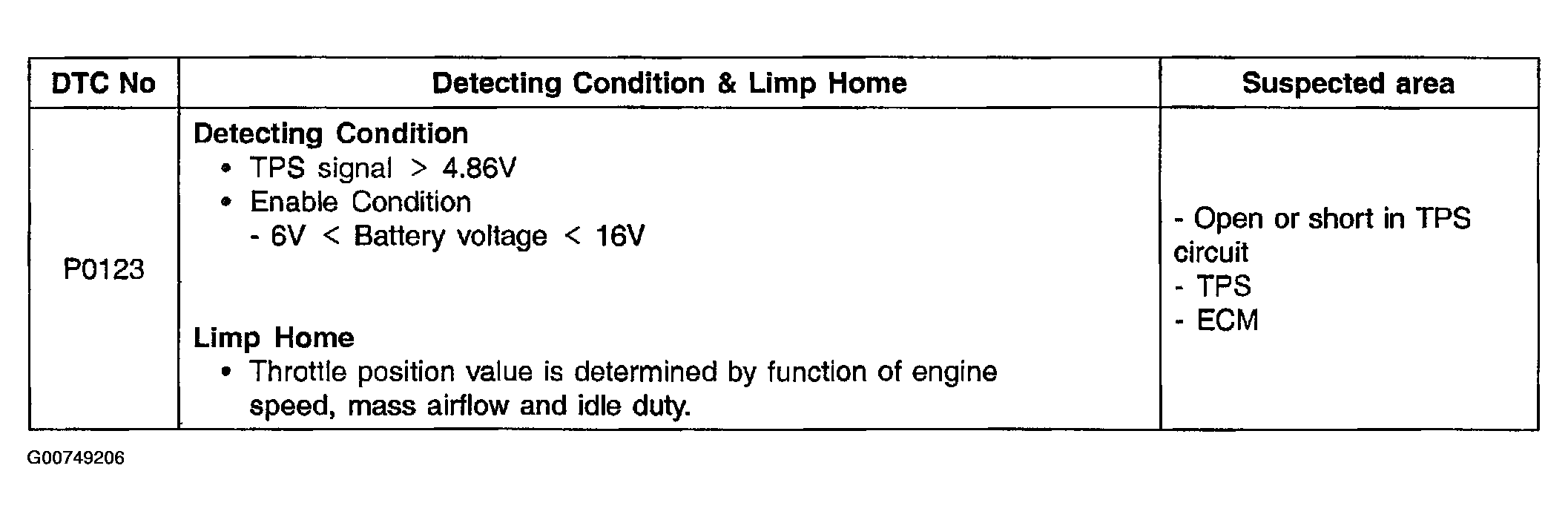

Fig 1: DTC P0123: Detecting Conditions & Probable Causes

G00749206

Courtesy of HYUNDAI MOTOR CO.
