DTC P0121: Throttle Position Sensor (TPS) Circuit Range/Performance Problem: Specifications

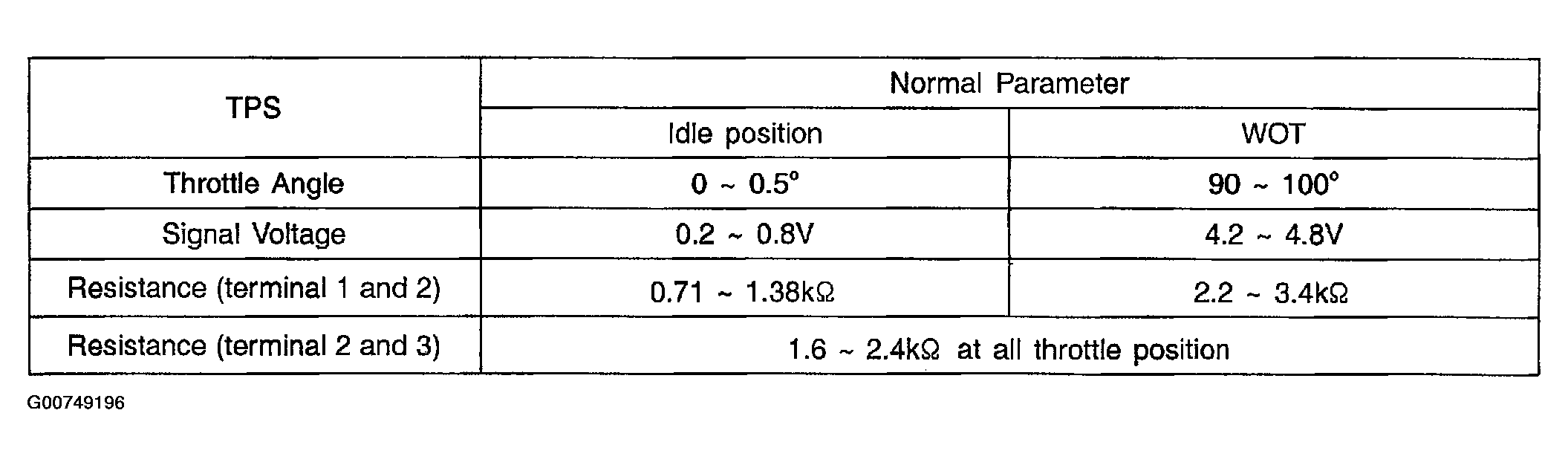

Fig 1: TPS Specification Table

G00749196

Courtesy of HYUNDAI MOTOR CO.
