DTC P0121: Throttle Position Sensor (TPS) Circuit Range/Performance Problem
>>
DTC Detecting Condition
DTC P0121: Throttle Position Sensor (TPS) Circuit Range/Performance Problem: DTC Detecting Condition

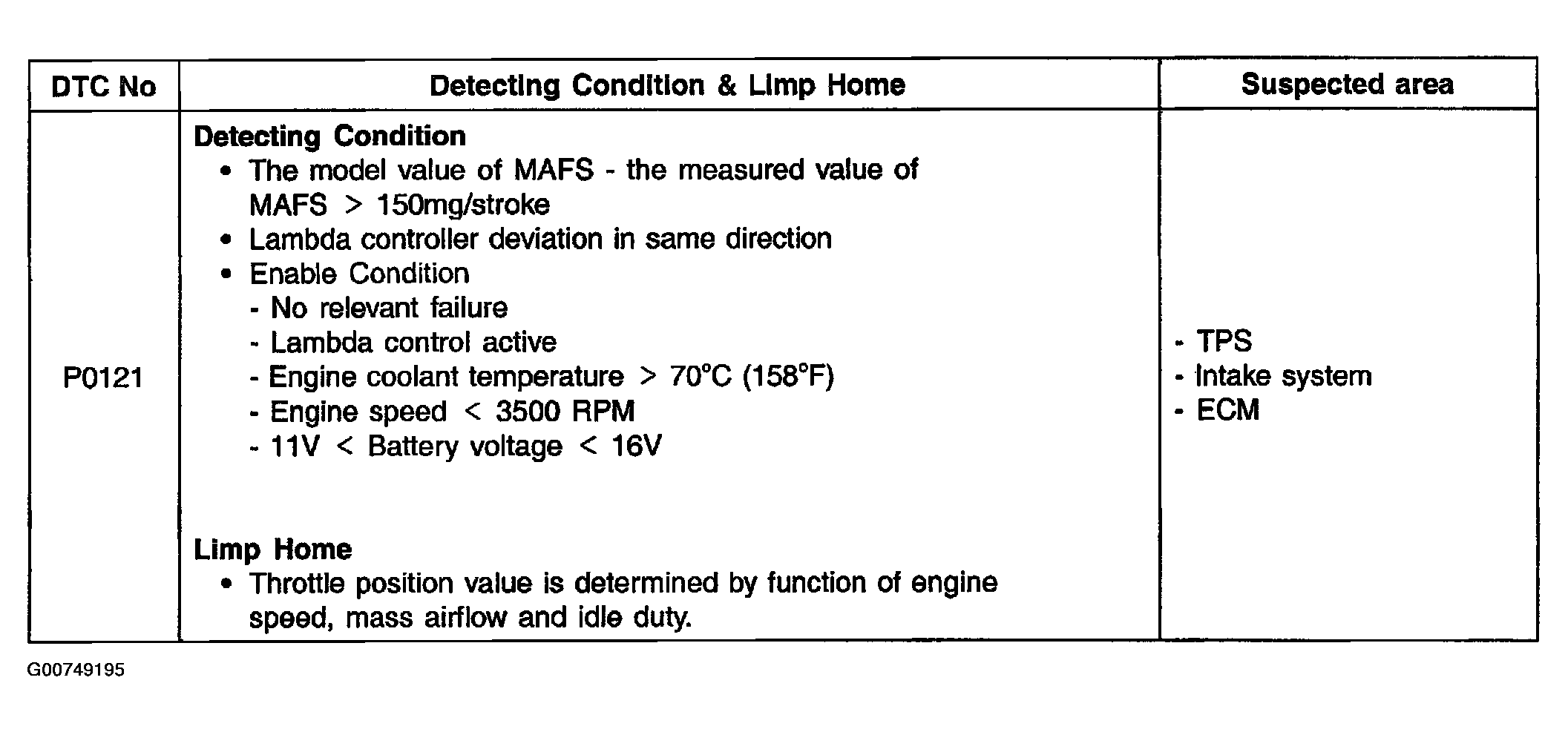

Fig 1: DTC P0121: Detecting Conditions & Probable Causes
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
