DTC P0077: Intake Valve Control Solenoid Circuit High - Oil-Flow Control Valve (OCV): DTC Detecting Condition

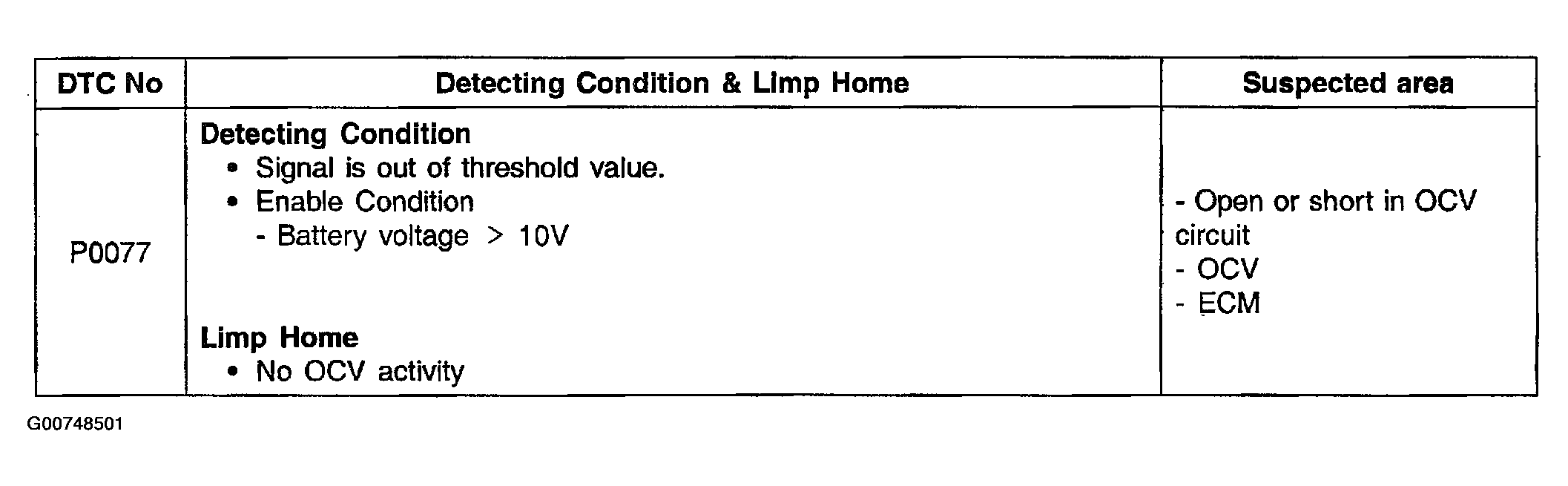

Fig 1: DTC P0077: Detecting Conditions & Probable Causes

G00748501

Courtesy of HYUNDAI MOTOR CO.
