DTC P0036: O2 Sensor Heater - Heater Control Circuit (Bank 1, Sensor 2)
>>
DTC Detecting Condition
DTC P0036: O2 Sensor Heater - Heater Control Circuit (Bank 1, Sensor 2): DTC Detecting Condition

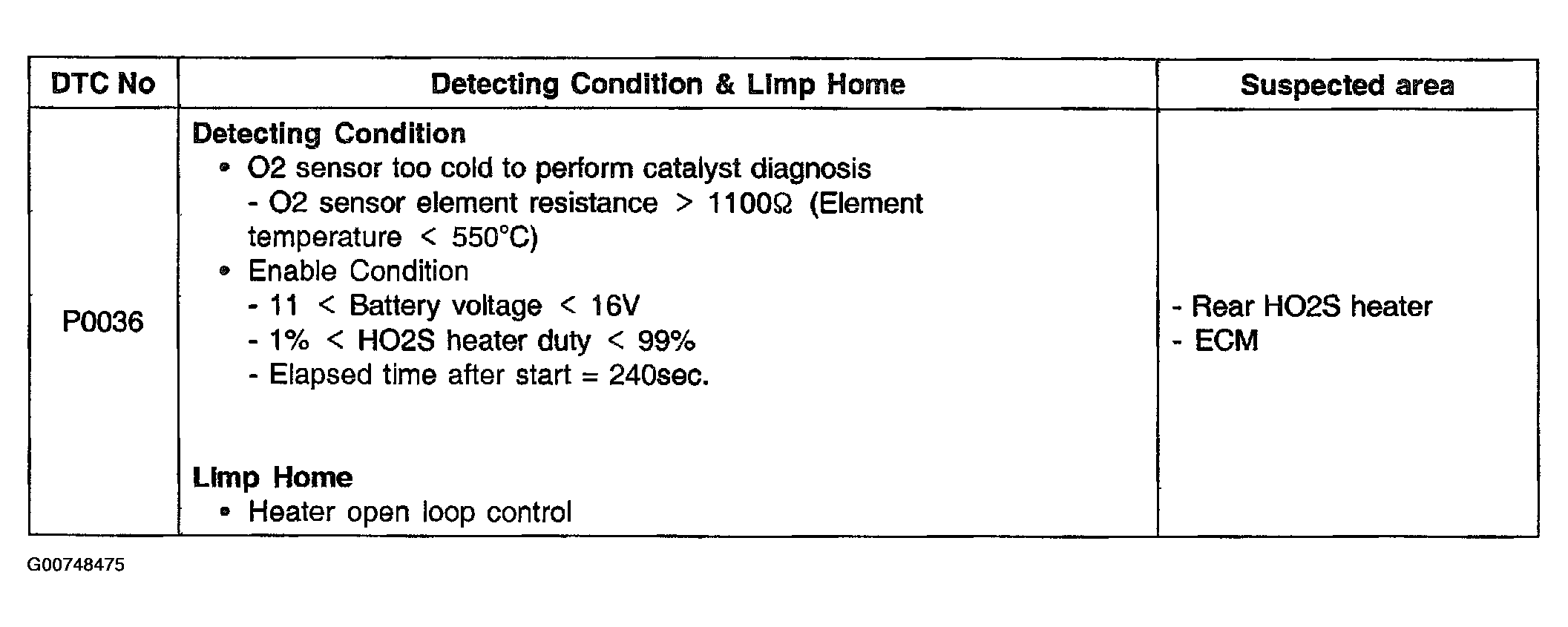

Fig 1: DTC P0036: Detecting Conditions & Probable Causes
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
