Home >> Hyundai >> 2004 >> Elantra GLS, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System >> DTC Trouble Shooting Procedures >> DTC P0032: O2 Sensor Heater Circuit High Input (Bank 1, Sensor 1) >> DTC Detecting Condition

DTC P0032: O2 Sensor Heater Circuit High Input (Bank 1, Sensor 1): DTC Detecting Condition

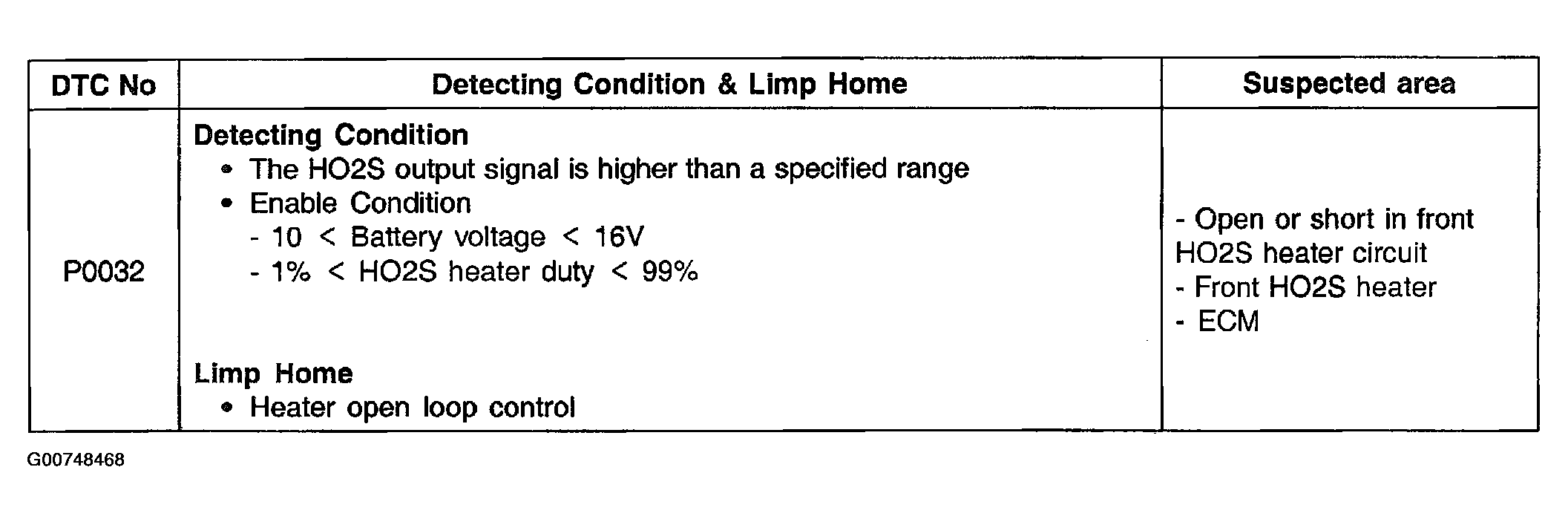

Fig 1: DTC P0032: Detecting Conditions & Probable Causes

G00748468

Courtesy of HYUNDAI MOTOR CO.
