Timing Belt: Components

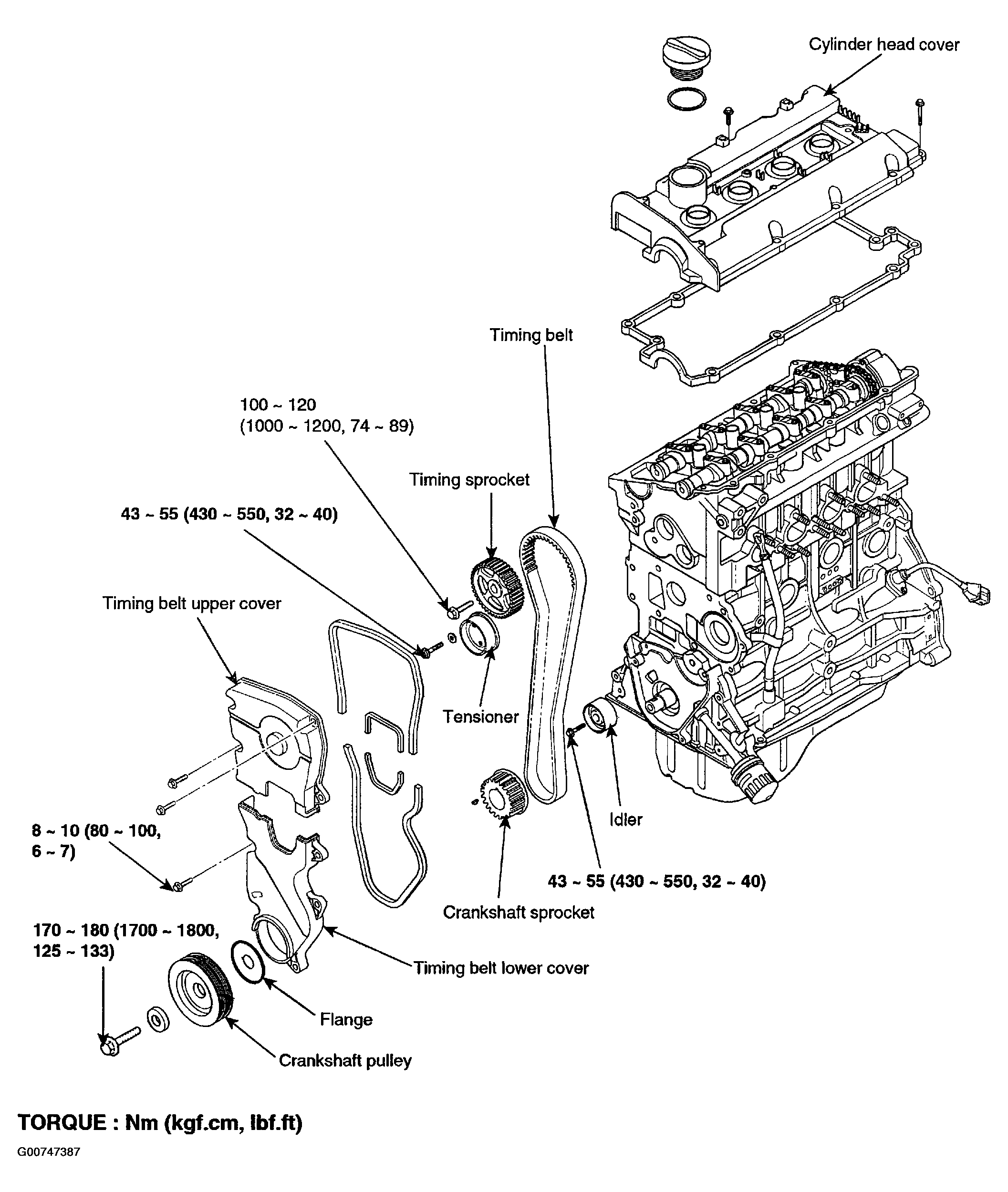

Fig 1: Identifying Timing System Components

G00747387

Courtesy of HYUNDAI MOTOR CO.
