Lubrication System: Reassembly

  1. Install relief plunger.

Install relief plunger (C) and spring (B) into the front case hole, and install the plug (A).

Tightening torque

  1. 40 ~ 50Nm (400 ~ 500kgf.cm, 30 ~ 37lbf.ft)

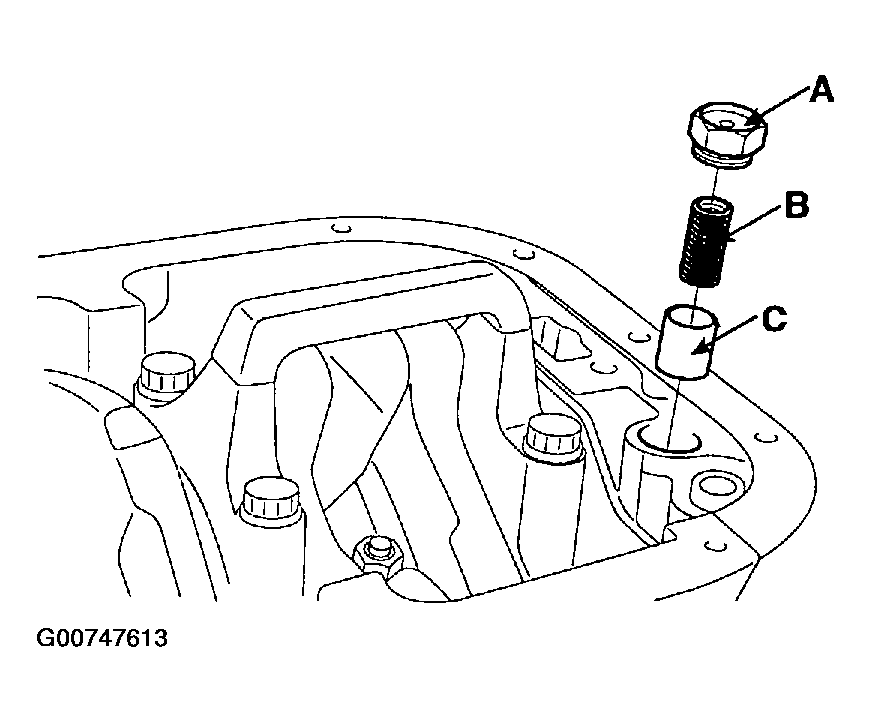

    Fig 1: Installing Relief Plunger
    G00747613Courtesy of HYUNDAI MOTOR CO.
