Lubrication System: Installation

Install oil pump.
1. Place the inner and outer rotors into front case with the marks facing the oil pump cover side.

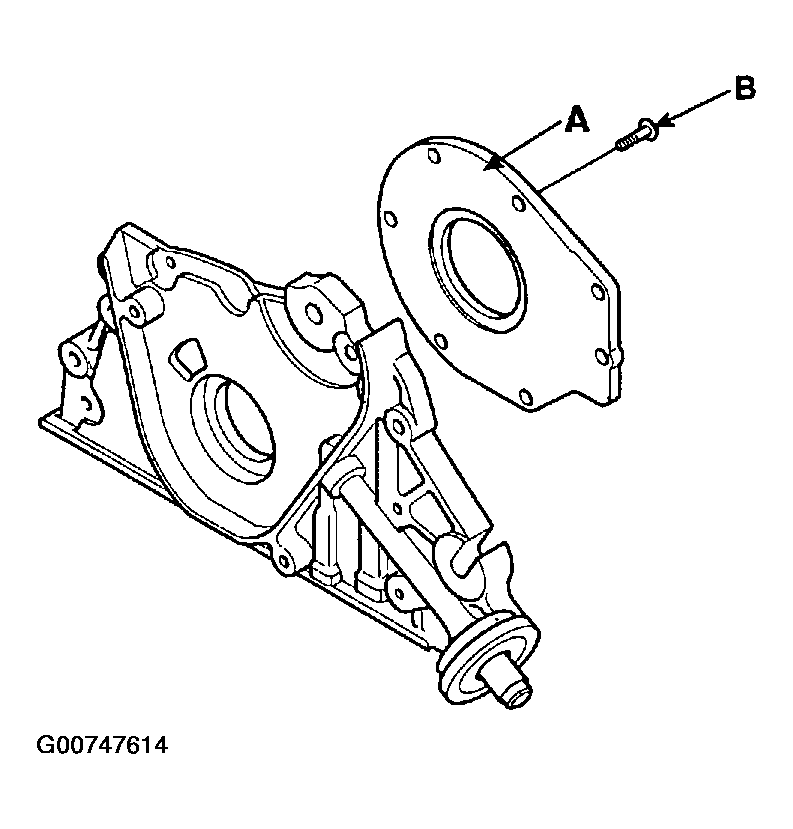

2. Install the oil pump cover (A) to front case with the 7 screws (B).
Tightening toque
1. 6 ~ 9Nm (60 ~ 90kgf.cm, 4.4 ~ 6.6lbf.ft)

  Fig 1: Installing Oil Pump Cover
  Courtesy of HYUNDAI MOTOR CO.
Check that the oil pump turns freely.
Install the oil pump on the cylinder block.

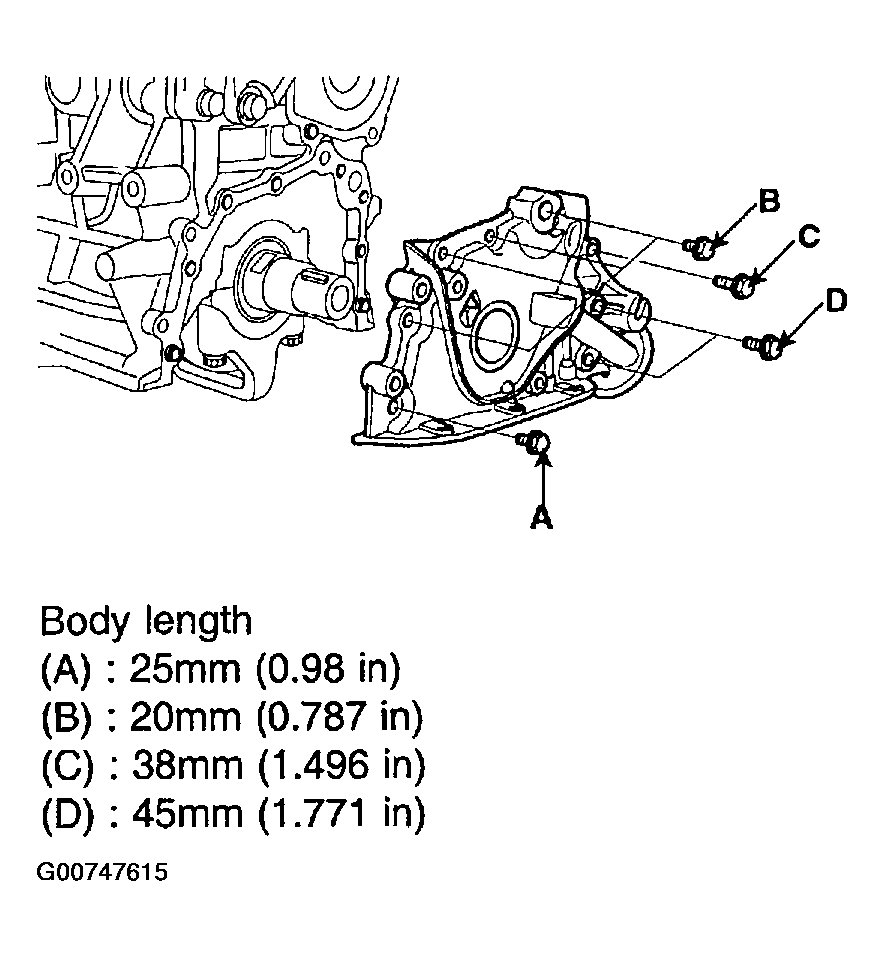

Place a new front case gasket on the cylinder block. Apply engine oil to the lip of the oil pump seal. The install the oil pump onto the crankshaft. When the pump is in place, clean any excess grease off the crankshaft and check that the oil seal lip is not distorted.

Fig 2: Installing Front Case
Courtesy of HYUNDAI MOTOR CO.

Tightening torque
1. 20 ~ 27Nm (200 ~ 270kg.cm, 14.5 ~ 19.8 lb. ft)
Apply a light coat of oil to the seal lip.
Using the SST (09214-33000), install the oil seal.

Fig 3: Installing Front Oil Seal
Courtesy of HYUNDAI MOTOR CO.

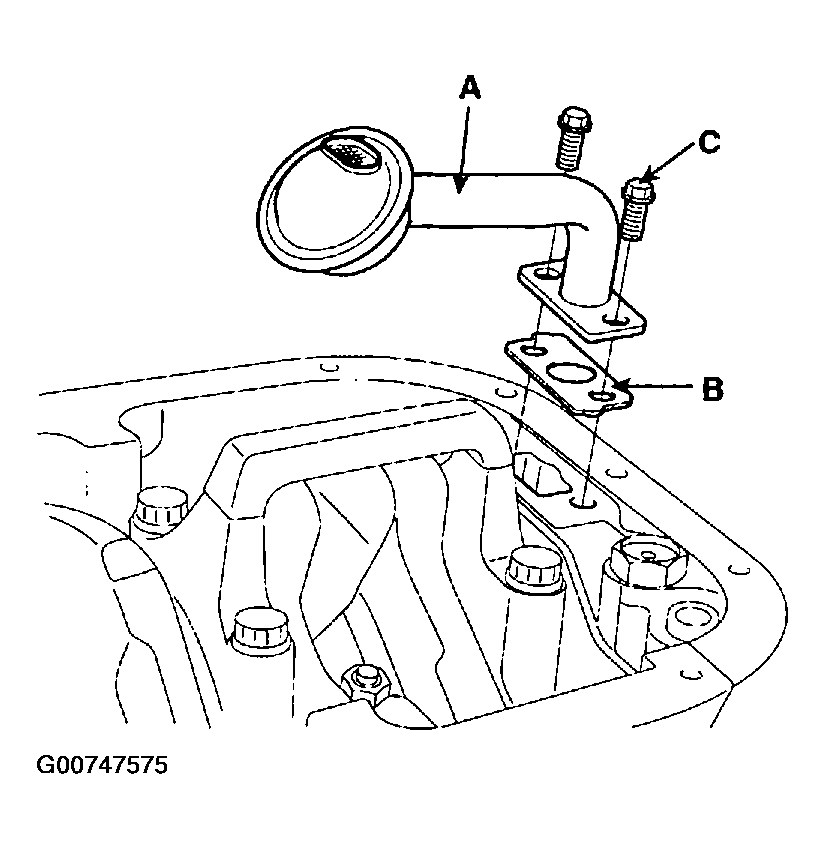

Install the oil screen. See Figure.
Install the oil pan. See Figure.

NOTE: Clean the oil pan gasket mating surfaces.
